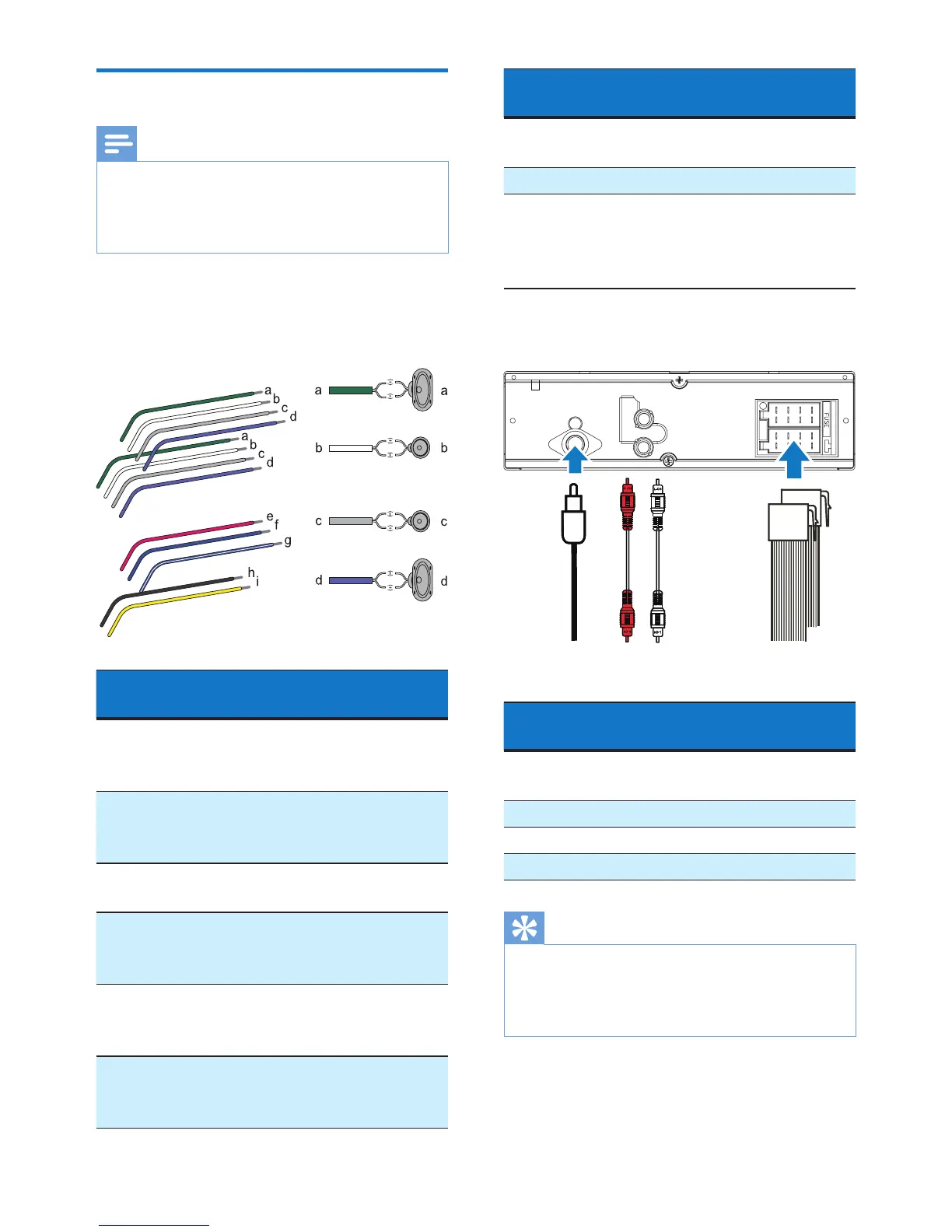

Connect wires
Note
•
Make sure that all loose leads are insulated
with electrical tape.
• Consult a professional to connect wires as
instructed below.
1 Check the car's wiring carefully and
connect them to the the ISO male
connectors.
ISO male
connectors
Connect to
a Green strip,
black-edged
green strip
Rear left speaker
b White strip,
black-edged
white strip
Front left
speaker
c Gray strip, black-
edged gray strip
Front right
speaker
d Purple strip,
black-edged
purple strip
Rear right
speaker
e Red strip Ignition key +12V
DC when ON/
ACC
f Blue strip Motor/electric
antenna relay
control lead
ISO male
connectors
Connect to
g White-edged
blue strip
Amplier relay
control lead
h Black strip Ground
i Yellow strip To the +12V car
battery which is
energized at all
times
2 Connect the antenna and amplier
as illustrated, if applicable.
Sockets on
rear panel
External sockets or
connectors
1 For ISO male
connectors
As indicated above
2 REAR L Rear left speaker
3 REAR R Rear right speaker
4 ANTENNA Antenna
Tip
•
The pin arrangement for the ISO
connectors depends on the type of your
vehicle. To avoid damage to the unit,
connect properly.
REAR
L
R
abcd
