Step 2: Optional Connections (continued)
A
C

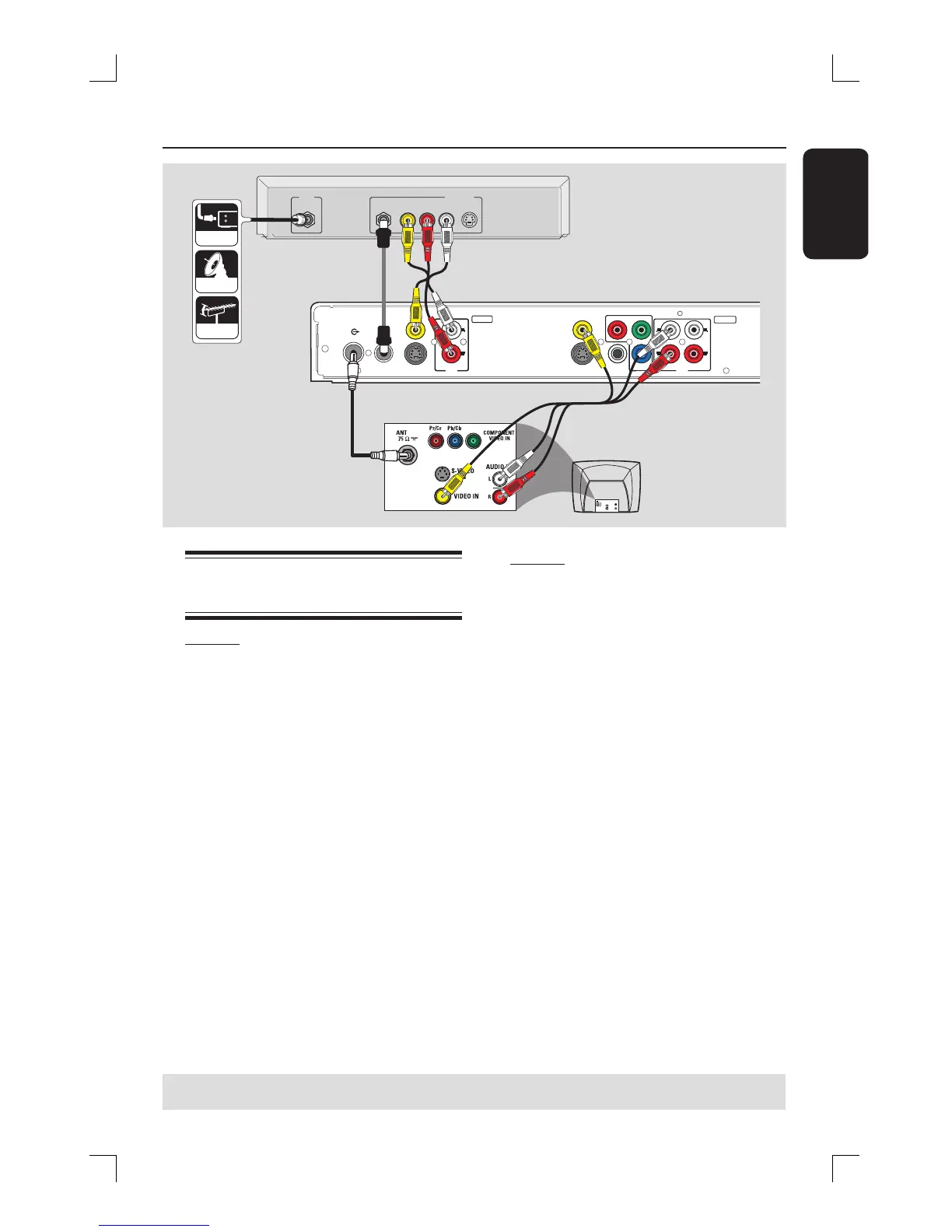

Connecting to a Cable Box or
Satellite Receiver
Option 1
If your Cable Box/Satellite Receiver
only has an antenna output jack
(RF OUT or TO TV),
See “Step 1: Basic Recorder Connections
– Connecting the antenna cables” for the
complete connections to your TV.
Option 2
If your Cable Box/Satellite Receiver
has video/audio output jacks,
A
Keep the existing antenna connection
from the Antenna/Cable TV signal to the
input (RF IN) jack on the Cable Box/
Satellite Receiver.
B
Use the audio/video cables to connect
the VIDEO (CVBS) EXT1 /AUDIO
INPUT on the recorder to the matching
VIDEO/AUDIO output jacks on the
Cable Box/Satellite Receiver.
C
Use the audio/video cables to connect
the VIDEO (CVBS) /AUDIO
OUTPUT on the recorder to the
matching VIDEO/AUDIO input jacks on
the TV.
R
L
Y
P
B
P R
VIDEO (CVBS)
COMPONENT
VIDEO
EXT 2
S-VIDEO (Y/C)
VIDEO (CVBS)
S-VIDEO (Y/C)
AUDIO
COAXIAL
R
L
R
L
(DIGITAL AUDIO)
INPUT
OUTPUT
EXT 1
AUDIO
TV-OUT
ANTENNA-IN
RF S-VIDEO
OUT
IN
AUDIO
R L
VIDEO
AUD IO
OUT
S-VI D E O
IN
VIDEO IN
TV
CABLE
SATELLITE
ANTENNA
Rear of a Cable Box or
Satellite Receiver
(Example only)
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
