Step 2: Optional Connections (continued)

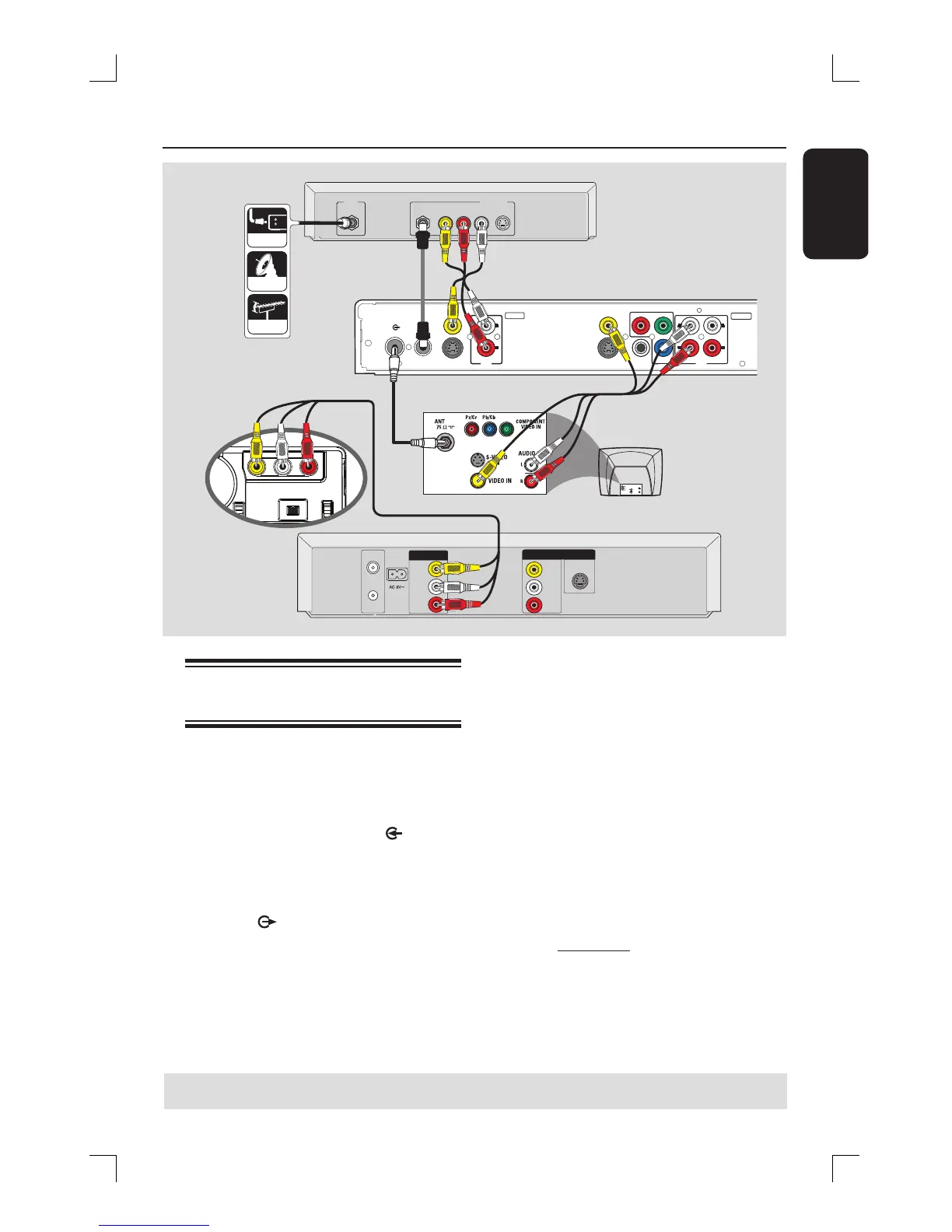

Connecting to a VCR and
Cable Box/Satellite Receiver
A
Connect the Antenna/Cable TV signal to
the antenna input (RF IN) jack on the
Cable Box/ Satellite Receiver.
B
Use the supplied RF coaxial cable to
connect the ANTENNA-IN jack on
the recorder to the RF OUT jack on the
Cable Box/ Satellite Receiver.
C
Use a RF coaxial cable to connect the
TV-OUT jack on the recorder to
the antenna input jack on your TV (VHF/
UHF RF IN.)
D
Use the supplied audio/ video cables to
connect the VIDEO(CVBS) EXT1/
AUDIO -INPUT jacks on the recorder
to the matching VIDEO/AUDIO output
jacks on the Cable Box/ Satellite
Receiver.
E
Use the audio/video cables to connect
the VIDEO(CVBS) /AUDIO -
OUTPUT on the recorder to the
matching VIDEO/AUDIO input jacks on
the TV.
F
Use another set of audio/video cables to
connect the CAM1/ L-AUDIO-R jacks
on the front panel of the recorder to the
to the matching VIDEO/AUDIO output
jacks on the VCR.
R
L
Y
P
B
PR
VIDEO (CVBS)
COMPONENT
VIDEO
EXT 2
S-VIDEO (Y/C)
VIDEO (CVBS)
S-VIDEO (Y/C)
AUDIO
COAXIAL
R
L
R
L
(DIGITAL AUDIO)
INPUT
OUTPUT
EXT 1
AUDIO
TV-OUT
ANTENNA-IN
RF S-VIDEO
OUT
IN
AUDIO
R L
VIDEO
AUD IO
OUT
S-VID E O
IN
VIDEO IN
TV
CABLE
SATELLITE
ANTENNA
VIDEO
IN
O U T
I
N
AUDIO
L
AUDIO
R
VIDEO
OUT
AUDIO
L
AUDIO
R
VHF/UHF
RF IN
VHF/UHF
RF OUT
S-VIDEO
C
E
D
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
Front Panel of
recorder
A
B
F
Back of a Cable Box
or Satellite Receiver
(Example only)
Back of a VCR
(Example only)
