Philips EP Series - Disassembly - and Reassembly advice; Removal of the UI; Removal of the Grinder; Removal of the Electrovalves

20 21
Philips EP Series

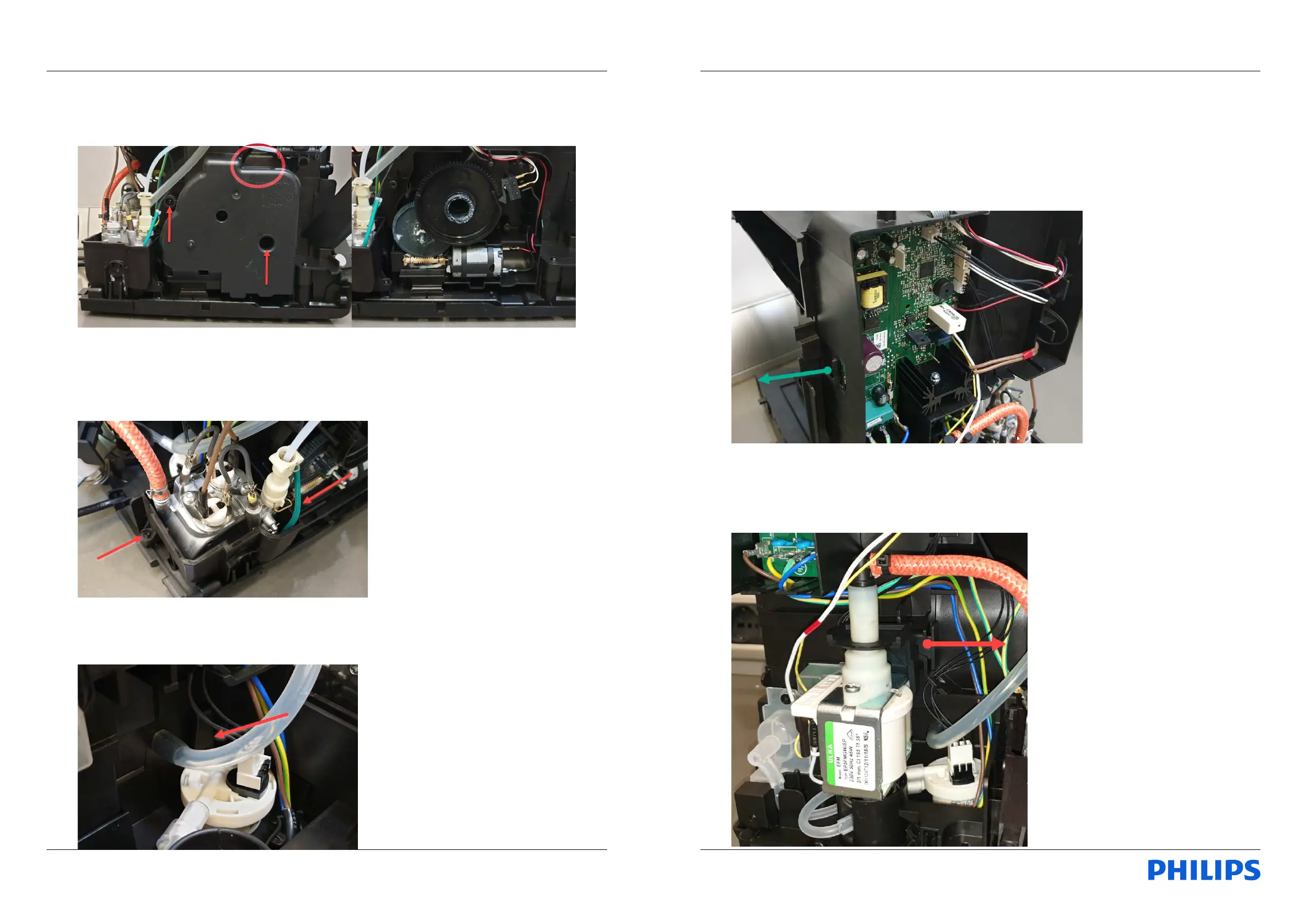

Removal of the Gear motor
1. Take out the brew unit motor cover removing the 2 screws
Be aware there is an empty hole (in the red circle). Do not insert any screw inside
Removal of the Boiler
1. Remove all the electrical and water circuit connections
2. Take out the 2 screws from the boiler support.
Removal of the Flowmeter
1. Remove the electric connection
2. Press on the holder to pull out the owmeter, then remove water connections.
Removal of the Mainboard
1. Remove all the electric connections
2. Keep pressing on the left holder to be able to release the board.
The mainboard contains several xed wires which cannot be disconnected from the board.
The UI cable is also xed to the mainboard.
To completely remove the mainboard from the appliance, disconnect all xed wires from their destination component.
Removal of the Pump
1. Pull the pump holder to the right
2. Remove all the connection
When reassembling the pump, ensure to use hot melt to x the thermal fuse.
Disassembly - and Reassembly advice Disassembly - and Reassembly advice
