Philips FM24 - Page 3

Technical Specifications, Connections and Chassis Overview
EN 3FM24 1.
VGA2 - Out

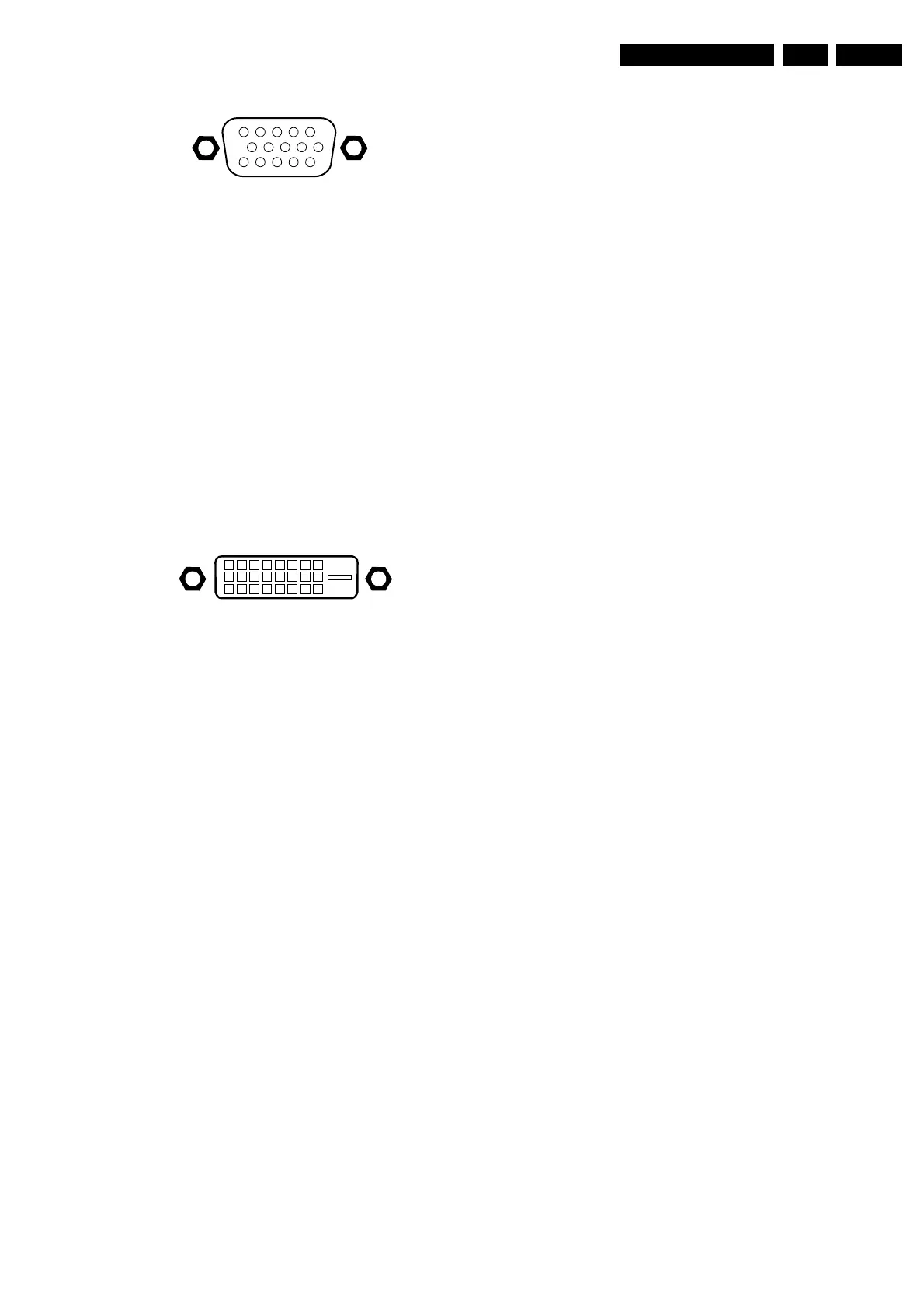

Figure 1-4 VGA Connector
1 - Red (0.7 V
pp
/75 Ω) 
2 - Green (0.7 V
pp
/75 Ω) 
3 - Blue (0.7 V
pp
/75 Ω) 
4-TXD 
5 - Ground ,
6 - Red Ground ,
7 - Green Ground ,
8 - Blue Ground ,
9-
10 - Ground ,
11 - RXD 
12 - DDC_SDA 
13 - H-sync 0 - 5 V 
14 - V-sync 0 - 5 V 
15 - DDC_SCL 
RC - Out
1 - RC 
DVI-D
Figure 1-5 DVI-D Connector
1-RX2- 
2-RX2+ 
3 - Ground ,
4-
5-
6 - DDC-SCL 
7 - DDC-SDA 
8-
9-RX1- 
10 - RX1+ 
11 - Ground ,
12 -
13 -
14- 5V_STBY_SW
15 - Ground ,
16- 5V_STBY_SW
17 - RX0- 
18 - RX0+ 
19 - Ground ,
20 -
21 - Ground ,
22 -
23 - RXC+ 
24 - RXC- 
c5 - Ground ,
AV2: SVHS - In
1 - Y Ground ,
2 - C Ground ,
3-Y 1 V
pp
/ 75 Ω 
4 - C / 16:9 0.3 V
pp
/ 75 Ω 
AV2: Audio - In
1 - Audio - L 0.5 V
rms
/10 kΩ 
2 - Audio - R 0.5 V
rms
/10 kΩ 
AV1: Audio/Video - In
1-CVBS 1 V
pp
/ 75 Ω 
2 - Audio - L 0.5 V
rms
/ 10 kΩ 
3 - Audio - R 0.5 V
rms
/ 10 kΩ 
AV3: Audio/Video - In
1 - G/Y/Y 0.7 V
pp
/ 75 Ω 
2 - B/Pb/Cb 0.7 V
pp
/ 75 Ω 
3 - R/Pr/Cr 0.7 V
pp
/ 75 Ω 
4-H 
5-V 
6 - Audio - L 0.5 V
rms
/ 10 kΩ 
7 - Audio - R 0.5 V
rms
/ 10 kΩ 
1
6
10
11
5
15
18
916
17
24
C5
