Philips FM24 - 1 Technical Specifications, Connections and Chassis Overview

Technical Specifications, Connections and Chassis Overview
EN 2 FM241.
1. Technical Specifications, Connections and Chassis Overview
1.1 Technical Specifications
1.1.1 Picture
Display : FHT plasma panel
Screen size : 42" (106 cm)
Resolution : 1024 x 852 pixels
Contrast ratio : 400 : 1
1.1.2 Sound
Maximum power : 30 W
rms
1.1.3 Miscellaneous
Mains voltage : 95 - 264 V
AC
Mains frequency : 50/60 Hz
Ambient temperature : + 5 to + 40 deg. C
Maximum humidity : 90 % R.H.
Power consumption : around 400 W
Standby Power consumption : < 3 W
Weight : 40 kg
Dimensions (WxHxD) : 1215 x 657 x 90 mm
1.2 Connections
1.2.1 Rear Connections

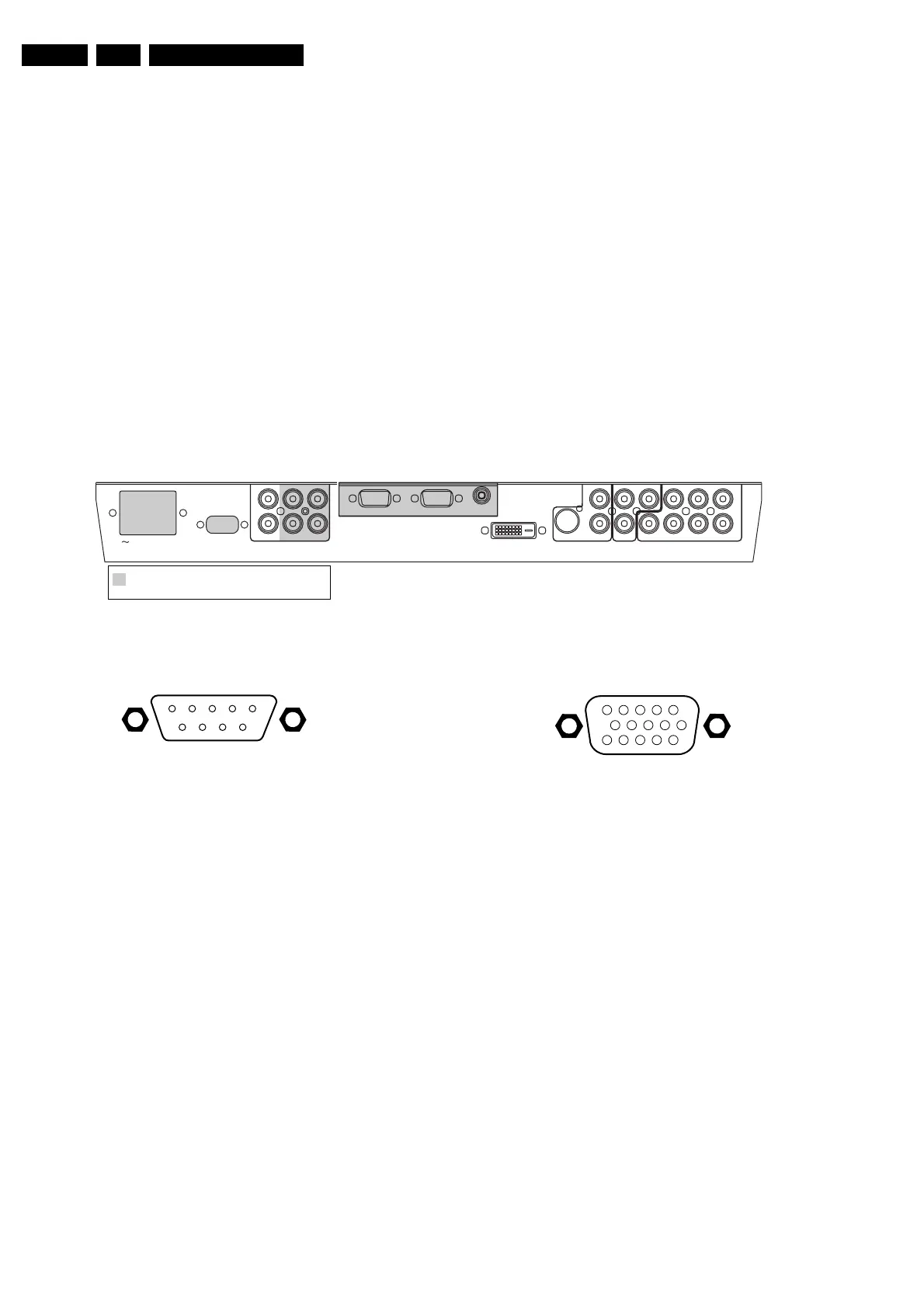

Figure 1-1 Rear Connections
RS232
Figure 1-2 RS232 connector (subD-9p)
1-
2 - TXD (UART) 
3 - RXD (UART) 
4 - RL_ICN (ICONN) 
5 - Ground ,
6 - GL_ICN (ICONN) 
7 - LD_ICN (ICONN) 
8 - IR_TX (ICONN) 
9 - IR_RX (ICONN) 
10 - Ground ,
11 - Ground ,
Audio - In (DVI-D)
1 - Audio - L 0.5 V
rms
/ 1 kΩ 
2 - Audio - R 0.5 V
rms
/ 1 kΩ 
Audio - In (VGA2)
1 - Audio - L 0.5 V
rms
/ 1 kΩ 
2 - Audio - R 0.5 V
rms
/ 1 kΩ 
Audio - In (VGA1)
1 - Audio - L 0.5 V
rms
/ 1 kΩ 
2 - Audio - R 0.5 V
rms
/ 1 kΩ 
VGA1 - In
Figure 1-3 VGA Connector
1 - Red 0.7 V
pp
/ 75 Ω 
2 - Green 0.7 V
pp
/ 75 Ω 
3 - Blue 0.7 V
pp
/ 75 Ω 
4-TXD 
5 - Ground ,
6 - Red Ground ,
7 - Green Ground ,
8 - Blue Ground ,
9-RC 
10 - Ground ,
11 - RXD 
12 - DDC_SDA 
13 - H-sync 0 - 5 V 
14 - V-sync 0 - 5 V 
15 - DDC_SCL 
MAINS
AUDIO IN
RS323
DVI-D
DVI-D
VGA2 VGA1
VGA1 VGA2 RC-OUT
L
R
Y/C S
SVHS
AUDIO
IN
AUDIO
IN
AUDIO
IN
AV2 AV1
AV3
H
v
CVBSB/Pb/Cb
B/Pr/Cr
L
R
L
R
CL 16532099_010.eps
260801
! All Functional blocks shaded grey are required for
the"Basic Configuration".
The remainder is required for the "Enhanced Configuration".
5
1
6
9
1
6
10
11
5
15
