Philips FW-C355 - Assembling of Tray; Dismantling of Tray

10-3
Pos 49 Guiding
Pos 48 Cam
Detail A

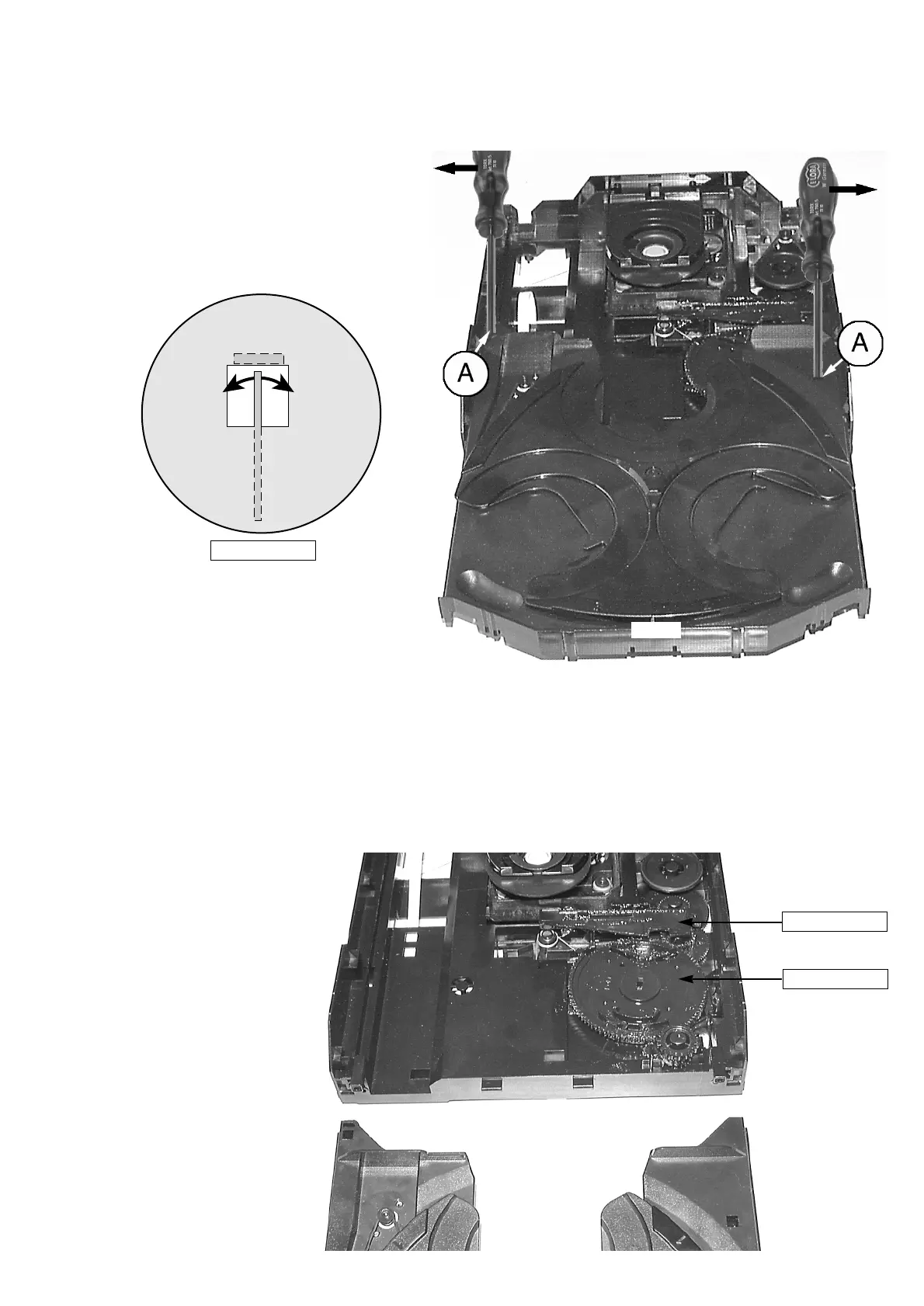

Dismantling of Tray
Service hints
1. Open the tray.
2. Release 2x catch as shown in fig. 2 and
Detail A
3. Pull tray out.
fig.2
Assembling of Tray
1. Turn Cam (pos. 48) clockwise to end
position.
2. If necessary - move Guiding (pos. 49) to the
right end position.
3. Insert the Tray.
