Philips FW M355 - Tape Mechanism B - Record;Playback

9-11
9-11

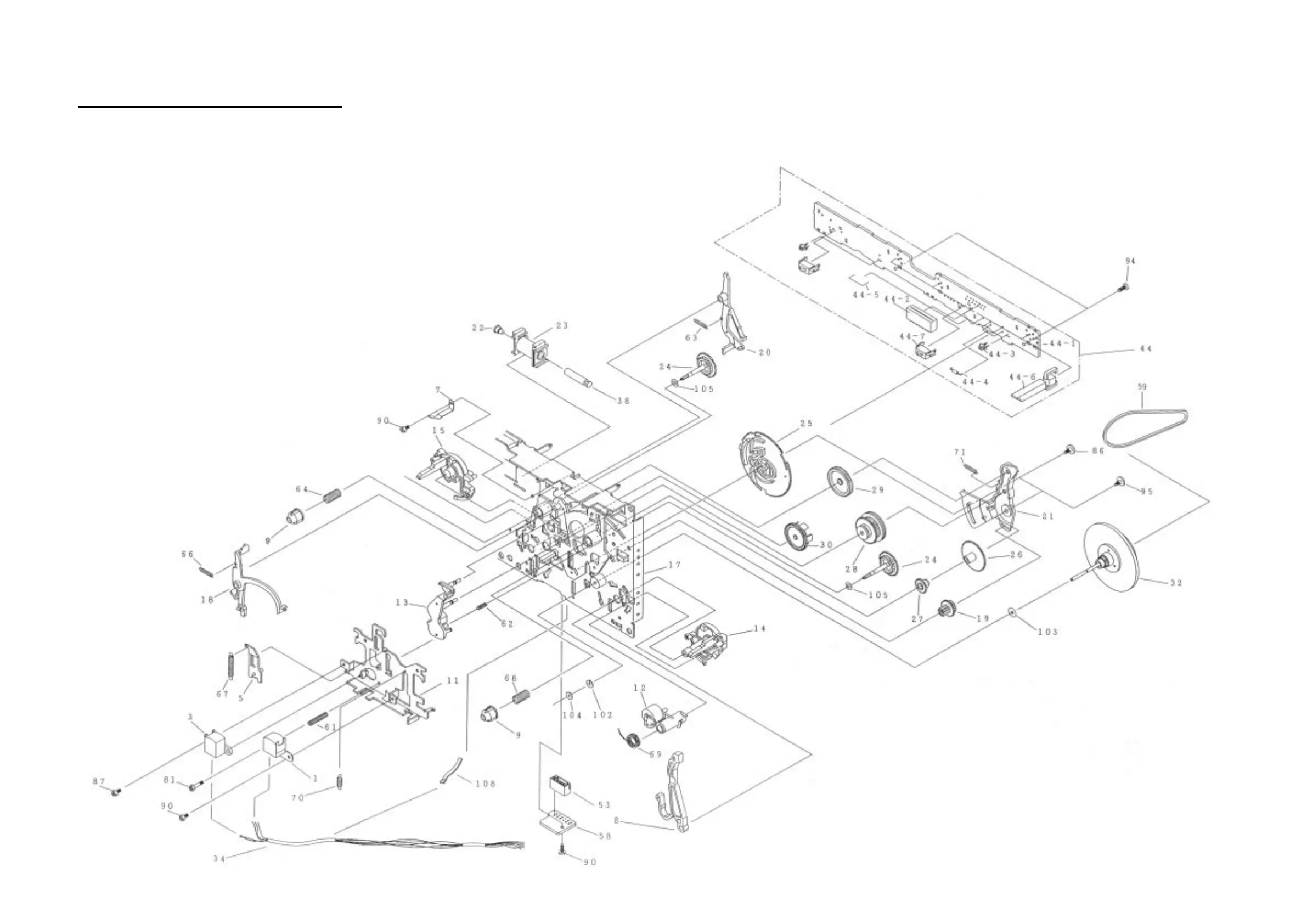

TAPE MECHANISM B - RECORD/PLAYBACK (Non-Autoreverse version)
MECHANICAL PARTS - REC/PB MECHANISM
1 9965 000 02313 Play Head
3 9965 000 02600 Head, Erase
12 4822 402 10972 Pinch Arm Assembly R
23 9965 000 02314 Coil Assembly
25 9965 000 06443 Cam Gear
32 4822 528 11209 Flywheel Assembly RV
44-2 9965 000 02317 Flex Socket 14 Pin
44-3 9965 000 02320 Photo Interrupter
44-4 4822 050 16801 680R 1% 0,4W
44-6 9965 000 02318 Leaf Switch
44-7 9965 000 02319 Mode Switch
59 9965 000 02719 Belt BF (Large)
69 4822 492 11761 Spring
102 4822 532 12931 Washer
103 4822 532 12932 Washer
104 4822 532 12933 Washer
Note: Only the parts mentioned in the list are normal service
spare parts.
