2-2
2-2
Service pos A
Service pos B
Note: After re-assembly, it is very important to ensure all
wires are routed properly to ensure that they do not
touch/obstruct all moving parts.
The 3CDC-LC-VCD Module can be complete de-
tached while repairing the other portion of the set.
Figure 8
Figure 7

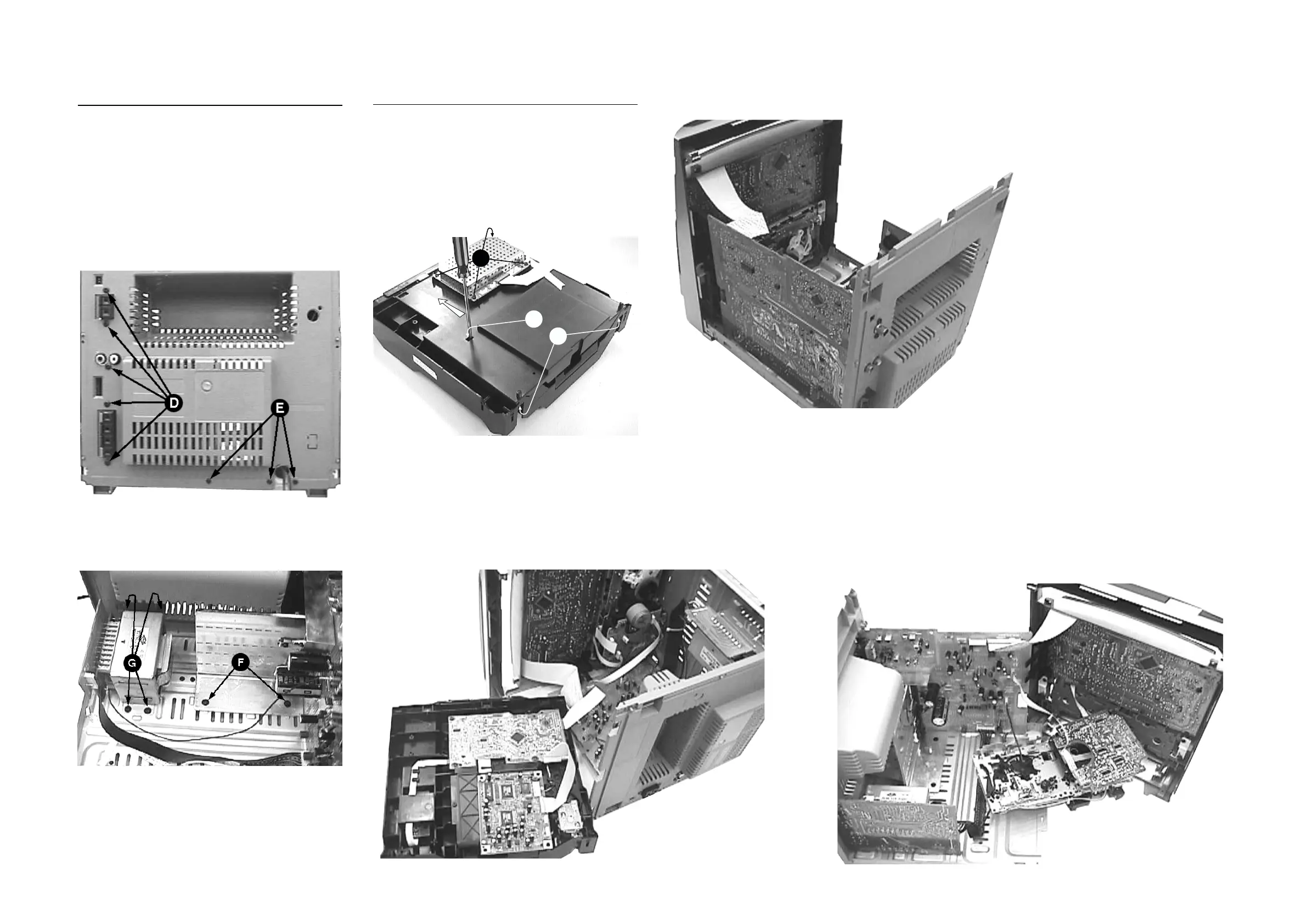

Dismantling of the Bottom & Rear Panel assembly
1) Loosen 5 screws D mounting the Combi board to the Rear
Panel (pos 256) as shown in figure 7.
2) Loosen 3 screws E and release the 2 catches on the sides
of the Rear Panel to separate it from the Bottom plate (pos
265).
3) Loosen 4 screws G to remove the Mains Transformer as
shown in figure 8.
4) Loosen 2 screws F to remove the Combi Board.
Separating the MPEG and 3CDC-LC-VCD Module
1) Loosen 4 screws P to remove the MPEG shield & MPEG
Board as shown in figure 9.
2) Loosen 2 screws M and release catch C3 with a flat screw-
driver in the direction as shown to loosen the Plate Insula-
tor.
P
M
C3
Figure 9
Service pos C
To Next Page
