Philips FWD39 - Dismantling

3-1 3-1

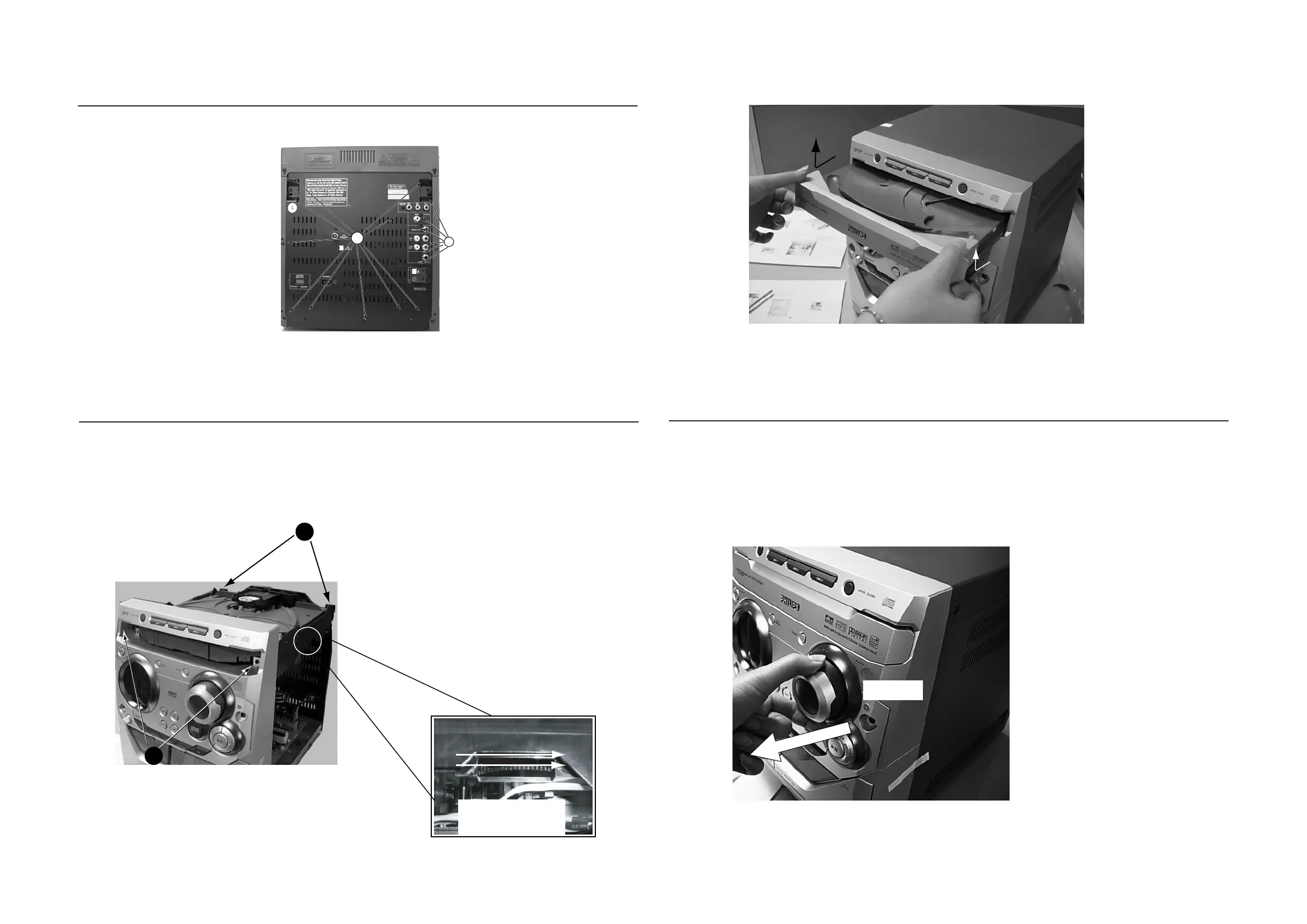

DISMANTLING INSTRUCTIONS
Dismantling of the Cassette Cover
Dismantling the 3CDC Module
3) Remove the Cover Tray as shown in figure 3.
4) Loosen 4 screws A to remove the CDC Module as shown
in figure 2.
Dismantling of the Cover Front Display and Cover Front Ornamental
Note: There is nothing are sandwiched between the
Front Cabinet and Cover Front Display but it
has to be removed in order to reach the catches
for the Cover Front Ornamental.
1) Loosen the 4 screws, slide Cover top towards the rear and
remove it upwards.
2) Push the gear slowly towards the front as shown in figure
2 until the CDC tray starts to move out of the Front Cabinet.
The CDC tray is now disengaged and can be pulled out
completely.
1) Remove the Volume knobs as stated in Dismantling the
Cover Front Display in Figure 4.
Figure 2
Figure 3
Figure 4
PULL OUT
A
A
Tu rn the gear towards
the front till the CDC
tray starts to open
1) Loosen 16 screws 'I' to remove the Rear Panel figure 1.
I
I
Figure 1
