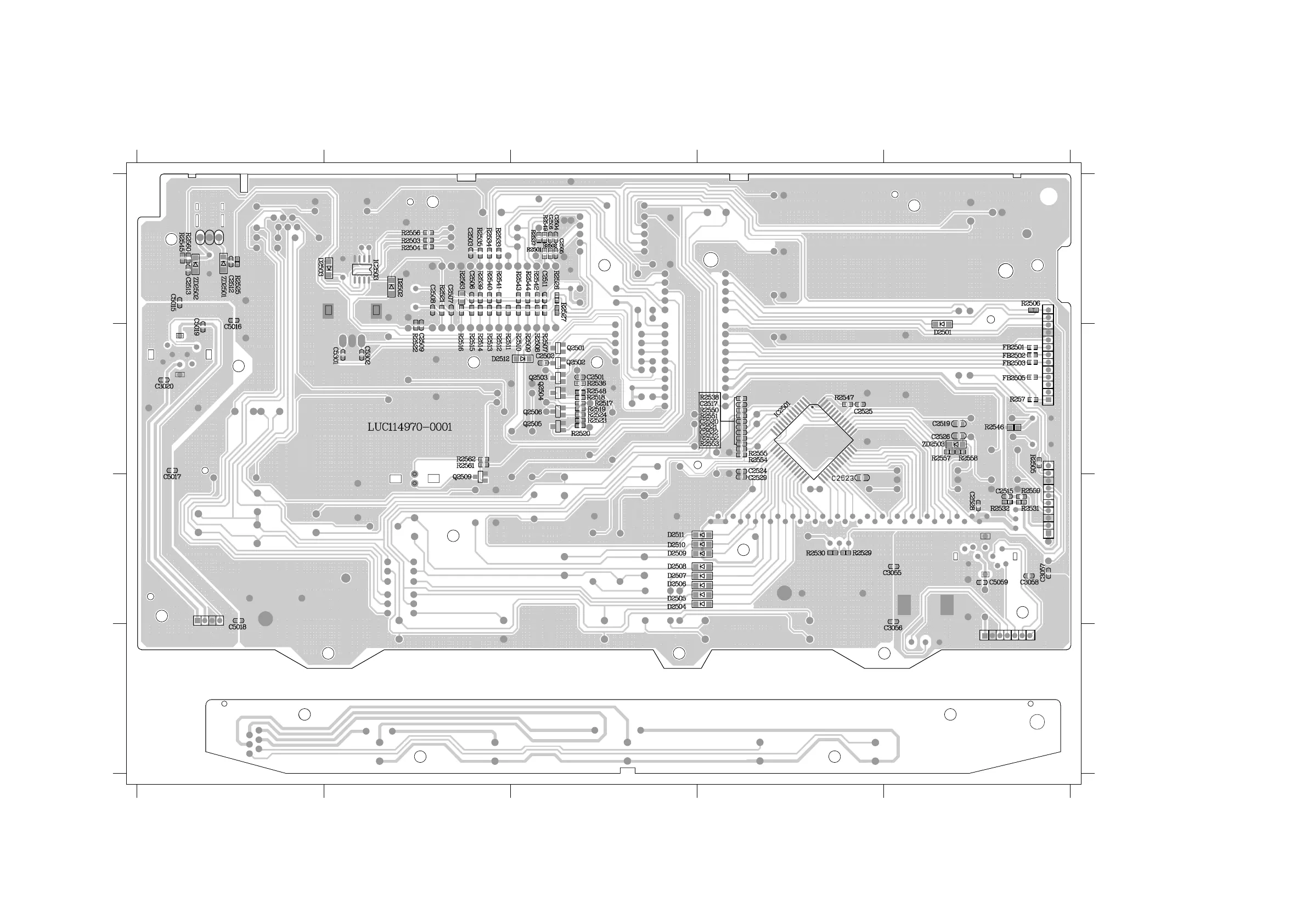

Philips FWD39 - Key Board PCB Layout (Bottom View)

PCB LAYOUT - KEY BOARD (BOTTOM)
5-5
5-5
A
54321
54321
B
C
D
A
B
C
D
C2501 B3
C2502 B3
C2503 A4
C2504 A3
C2505 A3
C2506 A4
C2507 A4
C2508 A4
C2509 B4
C2511 A3
C2512 A5
C2513 A5
C2515 C1
C2516 A3
C2517 B2
C2519 B1
C2520 B2
C2521 B2
C2522 B2
C2523 C2
C2524 B2
C2525 B2
C2526 B1
C2528 C1
C2529 C2
C3020 B5
C3055 C1
C3056 D1
C3057 C1
C3058 C1
C5015 A5
C5016 B5
C5017 C5
C5018 D5
C5019 B5
C5059 C1
C5301 B4
C5302 B4
D2501 B1
D2502 A4
D2503 A5
D2504 C3
D2505 C3
D2506 C3
D2507 C3
D2508 C3
D2509 C3
D2510 C3
D2511 C3
D2512 B4
FB2501B1
FB2502B1
FB2503B1
FB2505B1
IC2501B2
IC2503A4
Q2501 B3
Q2502 B3
Q2503 B3
Q2504 B3
Q2505 B3
Q2506 B3
Q2509 C4
R257 B1
R2501 A3
R2502 A3
R2503 A4
R2504 A4
R2505 B1
R2506 A1
R2507 B3
R2508 B3
R2509 B3
R2510 B3
R2511 B4
R2512 B4
R2513 B4
R2514 B4
R2515 B4
R2516 B4
R2517 B3

R2518 B3

R2519 B3

R2521 A4

R2522 B4

R2523 B3

R2524 B3

R2525 A5

R2526 A3

R2527 A3

R2529 C2

R2530 C2

R2531 C1

R2532 C1

R2533 A4

R2534 A4

R2535 A4

R2536 B3

R2537 A3

R2538 B2

R2539 A4

R2540 A4

R2541 A4

R2542 A3

R2543 A3

R2544 A3

R2545 A5

R2546 B1

R2547 B2

R2548 B3

R2549 A3

R2550 B2

R2551 B2

R2552 B2

R2553 B2

R2554 B2

R2555 B2

R2556 A4

R2557 B1

R2558 B1

R2559 C1

R2560 A5

R2561 B4

R2562 B4

R2563 A4

ZD2501A5

ZD2502A5

ZD2503B1
