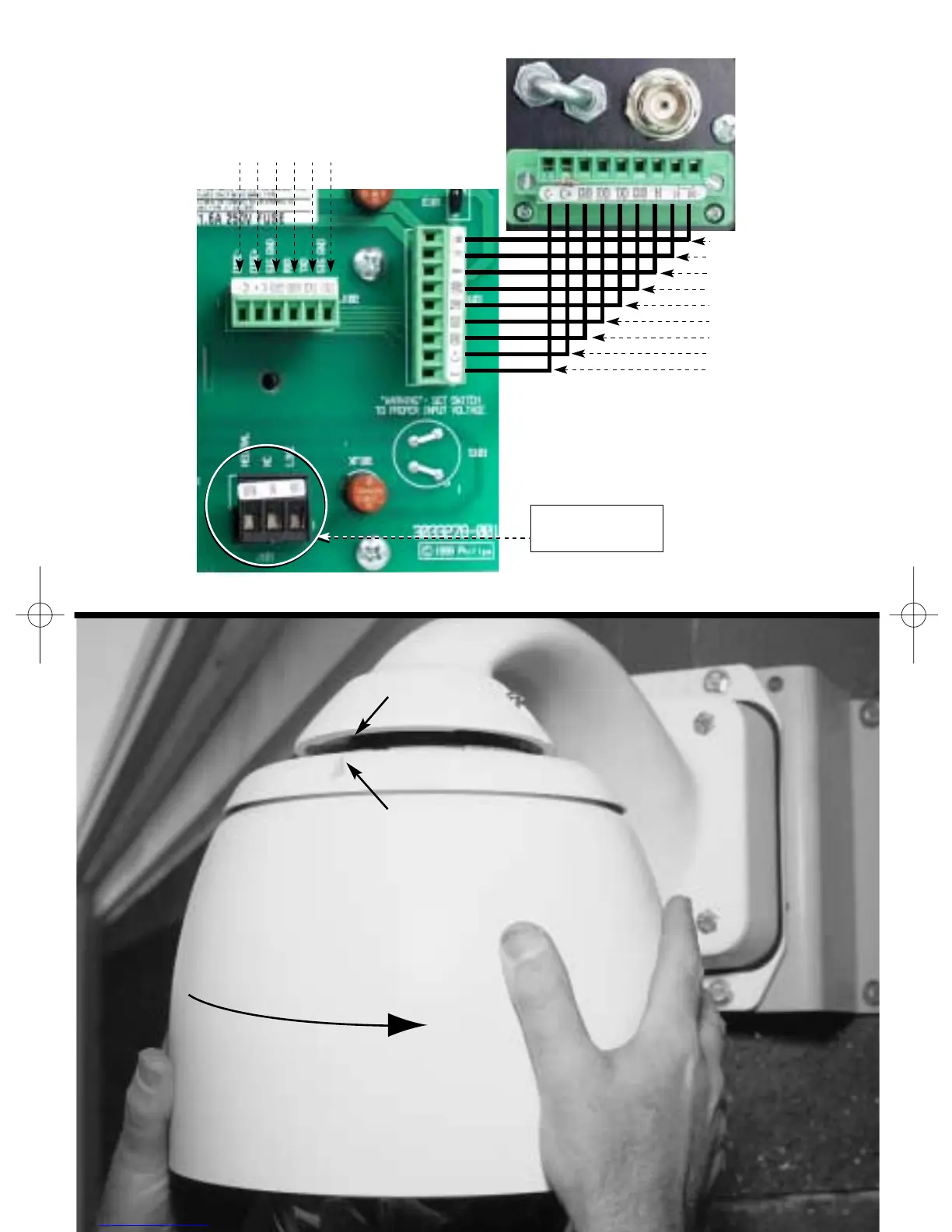

ALIGN NOTCHES
ROTATE
18
if you are not using an LTC 5401,
you should jumper Pin (1) 24 VAC
and Pin (3) Heater.
Input Connector (from Control System)
(1) 24 VAC
(2) 24 VAC
(3) Heater
(4) RS-232 Ground
(5) RS-232 TXD
(6) RS-232 RXD
(7) Biphase Ground
(8) Biphase +
(9) Biphase -
120 VAC = 105 to 132
230 VAC = 195 to 253
RS-232 Ground RS-232 TXD RS-232 RXD Biphase Ground Biphase + Biphase -
Top of EnviroDome
LTC 5401
Power Supply
Mains Voltage Input
