3-1
DISASSEMBLY INSTRUCTIONS
1) Loosen 9 screws and remove the Top Cover by lifting the rear portion upwards before sliding it out
towards the rear.
-5 screws on the back
-2 screws each on the left & right side
2) Loosen 7 screws & lift up the top edge of Front Panel assembly to free some catches before sliding
it out towards the front.
-4 screws on the bottom
-1 screw "A" on the inside as indicated in Figure 1 or Figure 2.
-1 screw each on the left & right side
3-1

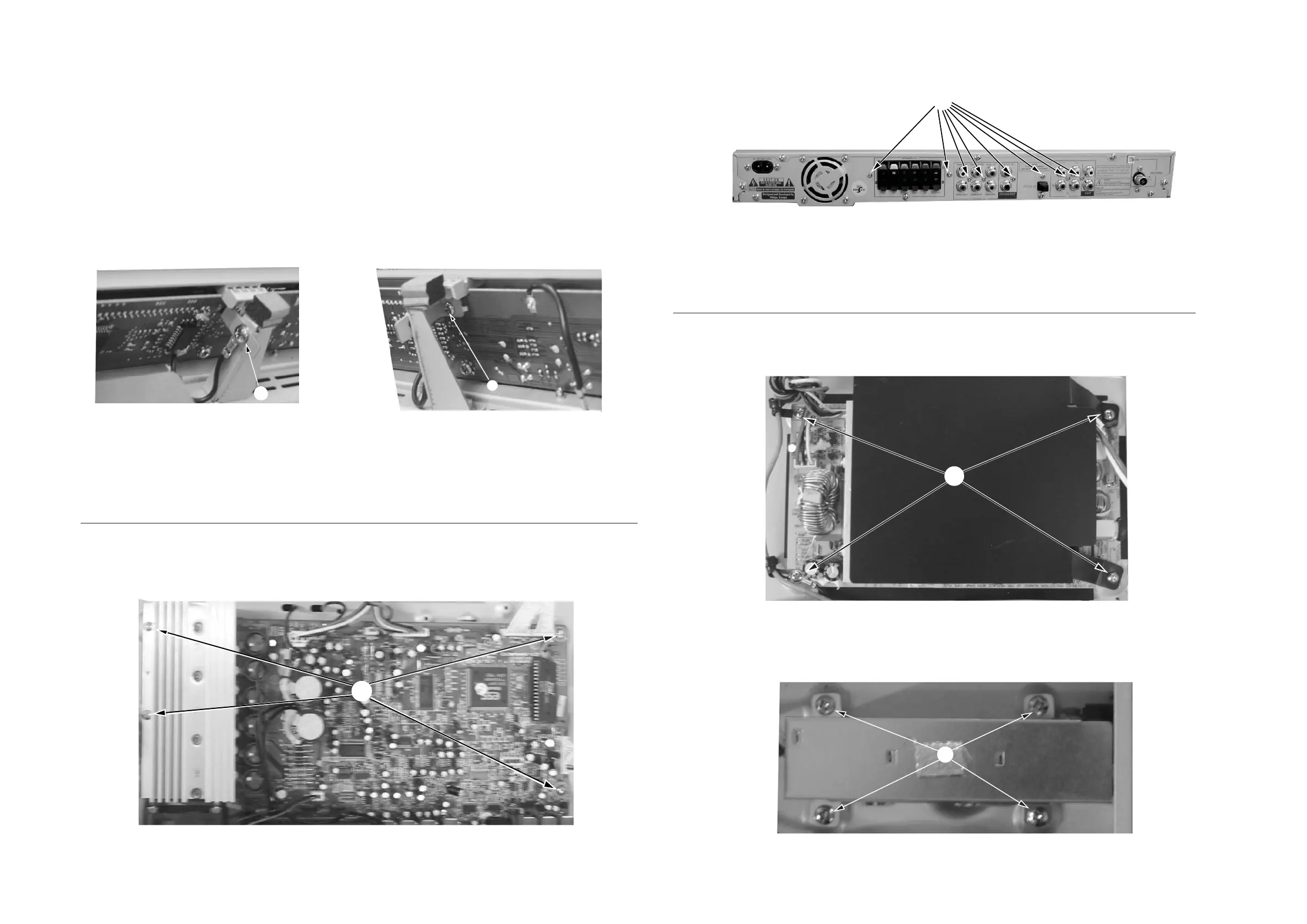

Figure 3
Dismantling of the Main Board
1) Loosen 4 screws "B" on the top of main board as shown in figure3.
2) Loosen 8 screws "C" at the back panel as shown in figure4.
Figure 4
Figure 6
Dismantling of the Power & Tuner Board
1) Loosen 5 screws " D " on the top of power board as shown in figure 5.
2) Loosen 4 screws " E " on the top of tuner board as shown in figure 6.
Figure 1
Figure 5
1
Figure 2
A
B
C
D
E
To Next Page
