Philips HTR5000 Service Manual

1-2

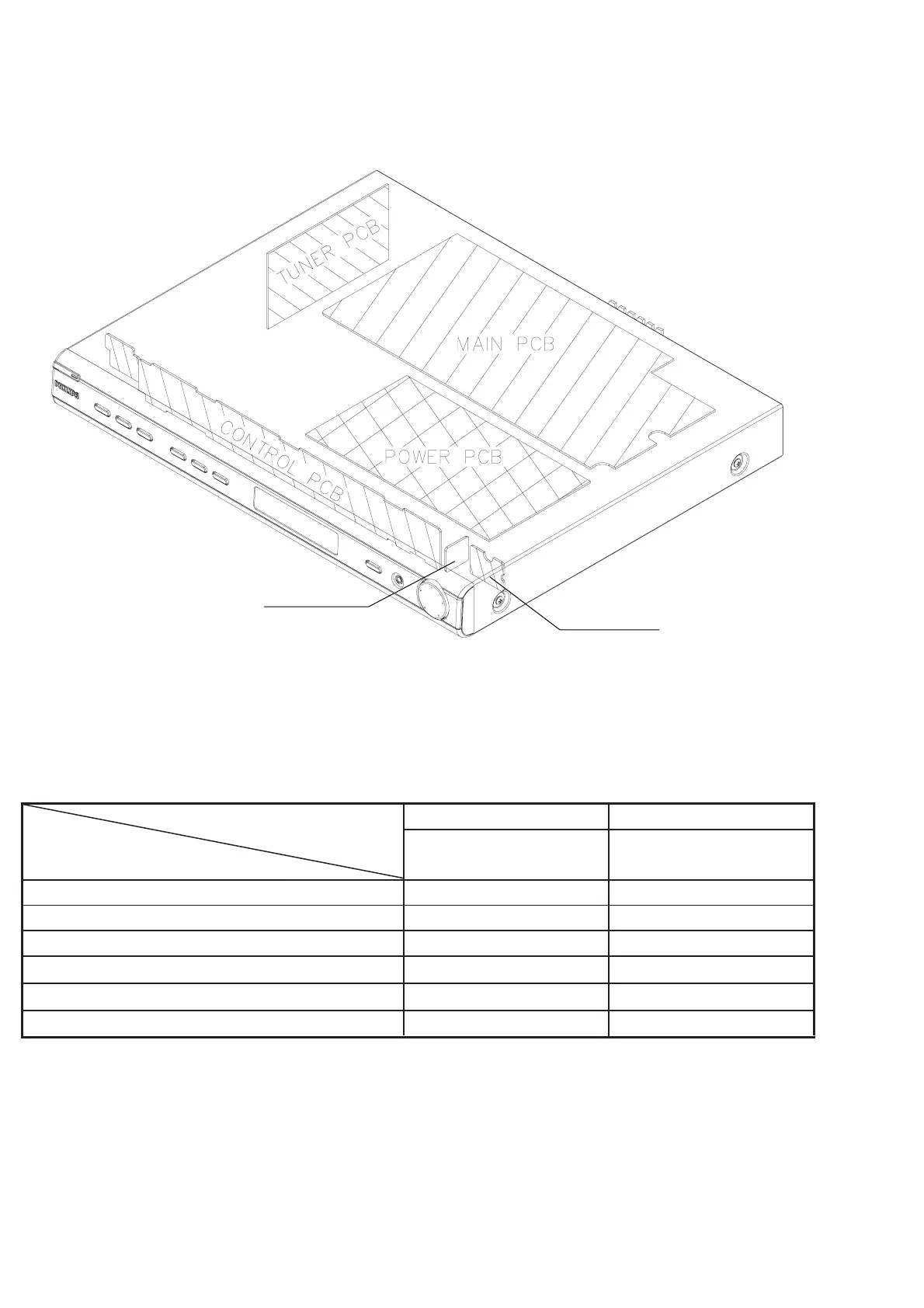

LOCATION OF PCB BOARDS
VERSION VARIATION:
Type/Versions
HTR5000
Features &
Board in used
RDS function
Grid Switch
Line Cord (Detachable)
Line Cord (Fixed)
x x
x
x
x
x
AC Voltage (110V~127V / 220~240V)
AC Voltage (220V~240V)
/ 01 / 98
HTR5000
PHONE PCB
VOLUME PCB
www.nostatech.nl
www.nostatech.com

Philips HTR5000 Specifications

Sound

D/A converter	24 bit, 192 kHz
Frequency response	150 - 20 000 Hz
Signal to noise ratio	>60 dB
Distortion and Noise (1kHz)	>65 dB
Crosstalk (1kHz)	>35 dB
Dynamic Range (1kHz)	>85 dB
Output Power	5000W PMPO
Total Sound Power (RMS)	700 W
Output power (RMS)	6 x 115W

Tuner/Reception/Transmission

Tuner Bands	FM Stereo, MW
Number of Preset Channels	40
RDS	Station Name

Connectivity

Front / Side connections	Headphone Out
Other connections	TV in (audio, cinch), AUX in, Analog audio Multi-channel, Digital optical in, Digital coaxial in, Digital coaxial out, Line out, FM Antenna, MW Antenna

Power

Power supply	200-240 V, 50Hz
Power consumption	180 W
Standby power consumption	< 1 W

Loudspeakers

Satellite speaker freq range	140-20000 Hz
Satellite speaker impedance	3 ohm
Satellite speaker drivers	1" conical dome tweeter, 3" mid range woofer
Center freq range	140-20000 Hz
Center speaker impedance	3 ohm
Center speaker drivers	1" conical dome tweeter, 2x 3" mid range woofer
Subwoofer freq range	40-140 Hz
Subwoofer impedance	3 ohm
Subwoofer driver	6.5" high efficiency woofer

Dimensions

Set dimensions (W x H x D)	435 x 53 x 359 mm
Set weight	4 kg
Surround Speaker dimensions (W x H x D)	95 x 175 x 65 mm
Center speaker dimensions (W x H x D)	220 x 95 x 75 mm
Subwoofer dimensions (W x H x D)	130 x 340 x 360 mm
Packaging dimensions (W x H x D)	639 x 312 x 444 mm
Weight incl. Packaging	15.2 kg
