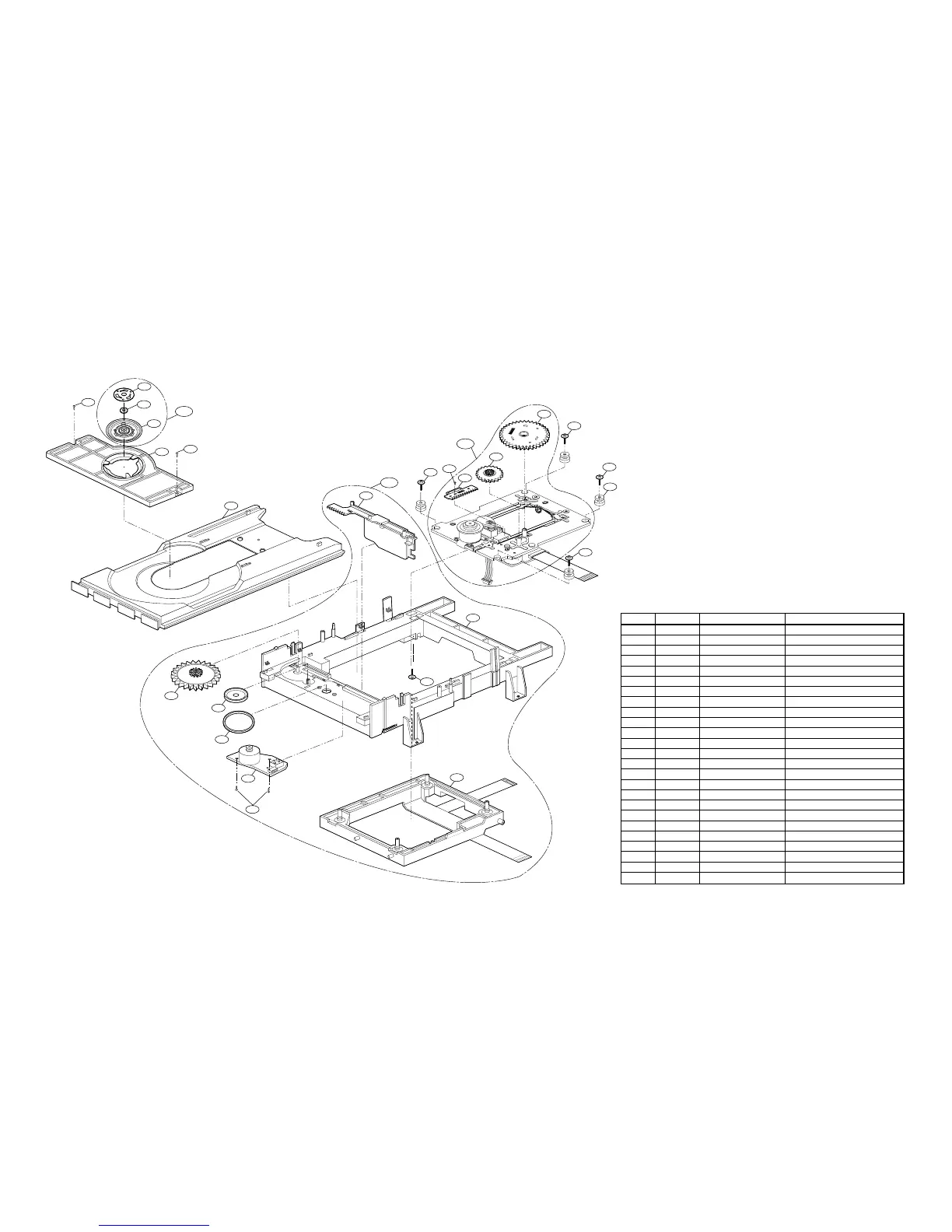

Philips HTS-3510 - Deck Mechanism Exploded View

5-3 5-4
002
001
003
004
429
429
026
018
008
009
016
012
430
430
430
432
020
430
011
017
014
013
015
431
A01
A02
A03
430
• Deck Mechanism Exploded View
LOCA.NO. PART NO DESCRIPTION SPECIFICATION
A00 6721RJ0354A DECK ASSEMBLY,VIDEO DP-5RM MULTI -HZ
A01 4861R-0006B CLAMP ASSEMBLY DISC(DP2)-SH
A02 3041R-0057A BASE ASSEMBLY MAIN(DP-4R MULTI)-HZ
A03 3041R-D001A BASE ASSEMBLY DP5 MULTI (SLED)- HZ
001 3300R-0547A PLATE CLAMP
002 5016H-1016B MAGNET CLAMP(LDM-R608,10*5,1*1.5T)
003 4860R-0006A CLAMP UPPER
004 4930R-0171A HOLDER CLAMP
008 4470R-0047A GEAR ASSY RACK
009 4470R-0053A GEAR MIDDLE
011 3210R-0058A FRAME UP/D (MULTI)
012 5040R-0047B RUBBER DAMPER(E2,5040H-1054A),CHUNPOO
012A 5040R-0047D RUBBER DAMPER(HARDNESS=30),DARKGREEN
013 4400R-0006A BELT LOADING
014 4470R-0055A GEAR PULLEY
015 6871R-4415E PWB(PCB) ASSEMBLY,TOTAL LOADING DP-4R MULTI HZ
016 4470R-0050A GEAR ASSY FEED
017 4470R-0056A GEAR LOADING
018 4974R-0023A GUIDE UP/DOWN
020 3040R-0076A BASE MAIN(DP-5RM MULTI)
026 3390R-0012A TRAY DISC(DP-5RM MULTI)
429 1SZZR-0012A SCREW, B-TITE
430 1SZZH-1003A SCREW, + D2.0 6MM SWRCH16A/NIY 4.5MM
431 1SZZH-1007B SCREW,DRAWING + D2.0 6MM SWRCH16A/ZNBK 4MM 1
432 1SZZR-0011A SCREW, MACHINE
