Philips HTS8100 - Mechanical Instructions; Dismantling of Main Unit; Dismantling of HDMI and AVIO (SCART) Boards

EN 19
3139 785 32540
Dismantling Instructions & Service Positions
4.
3) Remove 2 screws to detach the AVIO (SCART) board
(1040 for /05/12 and 1030 for /37/59) from the AVIO
(SCART) Bracket 135 as shown in fi gure 3.
AVIO (SCART) for /05/12
Figure 4-3-a
AVIO for /37/59
Figure 4-3-b

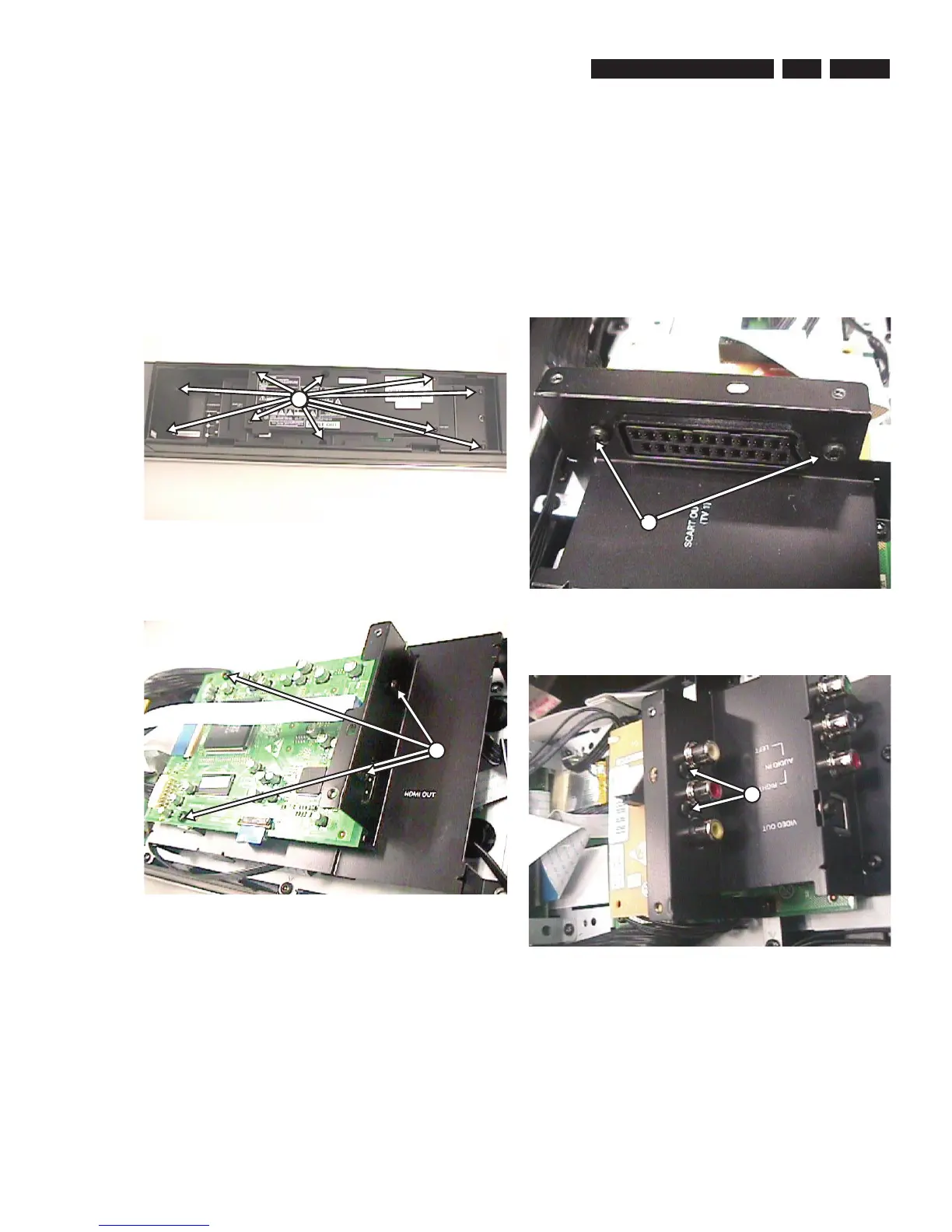

4. Mechanical Instructions
4.1 Dismantling of the Main Unit
4.1.1 Dismantling of HDMI and AVIO (SCART) boards
1) Remove Door Cover 200-49 (Speaker Box Assembly
Exploded View) and remove 10 screws to detach the
Rear Cover 200-47 (Speaker Box Assembly Exploded
View) as shown in Figure 1.
Figure 4-1
2) Remove 4 screws to detach HDMI board 1060 from the
HDMI Bracket 134 as shown in fi gure 2.
Figure 4-2
C
A
Notes: The position numbers used in the instructions refer to the exploded view drawings in Chapter 8.
Follow the Service Hints in Chapter 2 for dismantling the Main Unit, replacing the defective DVD mechanism and the Power Box Cable
Dressing.
B
C
