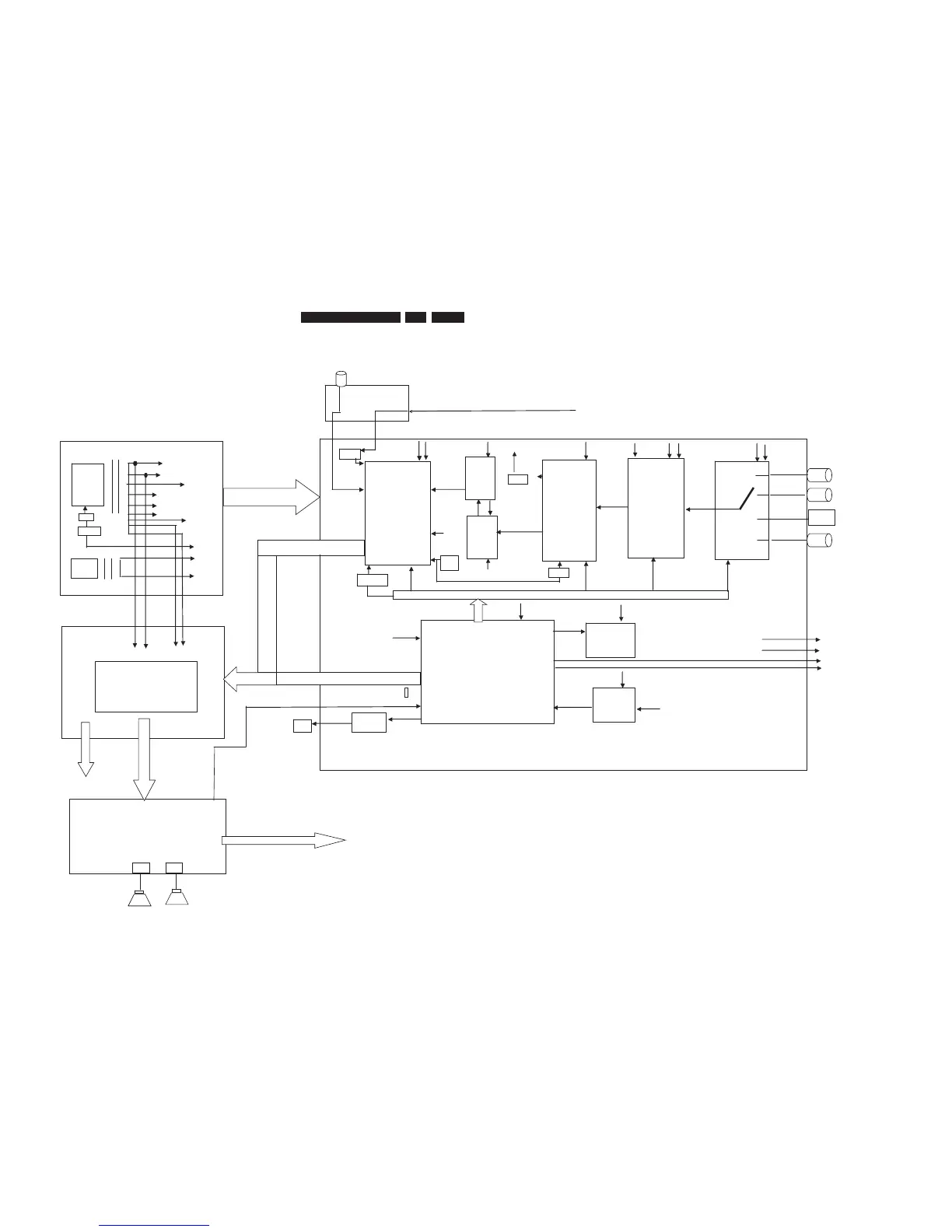

Philips HTS8100 - Power Box Block Diagram

EN 36
3139 785 32540
6.
Block Diagram, Wiring Diagram
AIO
BOARD
SPEAK BOARD
Primary 1
-33V
-12VA
+12VA
+5VL
+VCC
-VCC
Optical
Stby control
+12VL
PSU
Class D AMP
Sub
Analog
Signal
TO subwoofer
FR/FL, SR/SL
Cen
Analog
Signal
L
FR/SR/CEN
R
Sono-wave speaker
Sono-wave speaker connector( HTS6600
FR/FL/SL/SR/CEN
FL/SL/CEN
TO HTS8100 one Bar Speaker
+12VL
+5VL
12VL, +5VL, -33V, -12VA,
+12VA, GND, GNDA, STBY_PB,
5V_EVER, PWR_DN
Primary 2
GND
GNDA
+5V_EVER
GND
STBY_PB
TUNer
AUX1
AUX2
Sirius
HEF4052B
ADC
CS5340
ADC I2S
DATA
SPDIF REC
AK4113
DSP
DSPC56371AF180
1.25V
3V33V3
3V3
I2S_SPDIF_DATA
Coxial Input
SPDIF0
+5V6
-5V6
3V3
+5VL
SPDIFIN1
EEPROM
RDS
Micro Controller
SCL1, SDA1
TPA5050
TPA5050
Delay IC
Delay IC
I2S_D_Data
3V3
3V3
3V3
FM_DET(From Tuner)
+5VL
3V3
+3V3uP
I2S Data , I2S_MCLK, I2S_SCLK,I2S_LRCLK
FREQ_HOP, AMP_RST, AMP_ERR
AMP NTC
SEL0
SEL1
AUDIO BOARD
SPDIF1
RST_ADC
Buffer
74LVC1G125GW
OSC.
DSO751SV
EXTAL
Buffer
74LVC1G32GW
XT1
RST_AK4113
RST _DSP
RST_CIRCUIT
Buffer
74LVC1G32GW
I2S_MCLK
I2S_MCLK
I2S_MCLK
FAN_DET
FAN SWITCH
CIRCUIT
FAN_CTRL
FAN
INT_DSP
PWR_DN
TO Center Unit
CU_DET
Wake_UP
TU_RDS_CLK
TU_RDS_DATA
From Center Unit
12VL
+5V_EVER
TO Center Unit
AMP BOARD
12VL
+5V_EVER
TO HTS8100 one Bar Speaker
3139-249-40141-130-A3 pbx.pdf 2006-08-04
Power Box Block Diagram
