Philips HTS8100 - Location of PC Boards

EN 2
3139 785 325401.
Technical Specifi cations and Connection Facilities

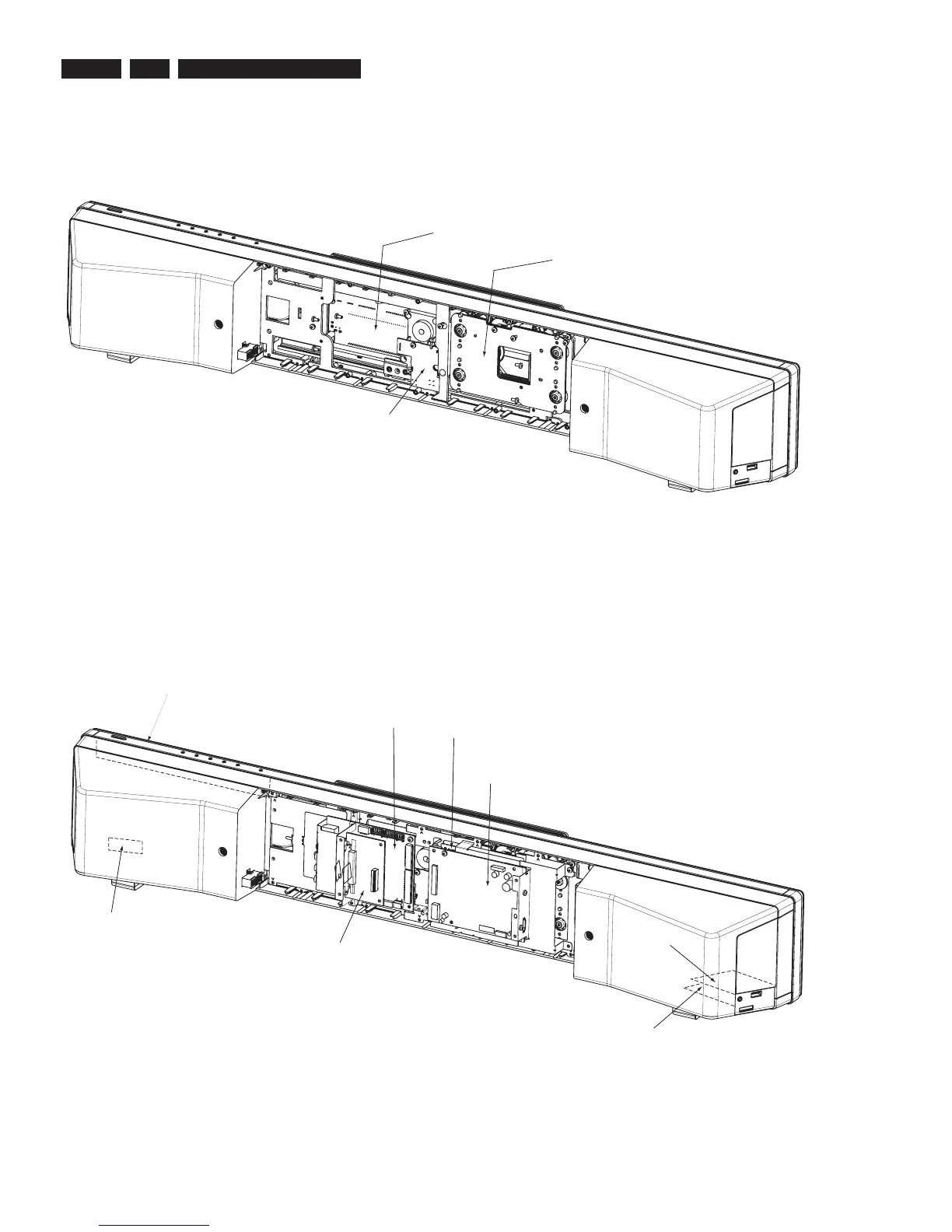

LOCATION OF PC BOARDS
Front Board
DVD Mechanism
Door Control Board
PCBs on the lower level
PCBs on the Rear Frame and in the
speaker cabinet
AV Board
Front Keys Board
Front LED Board
SD9.2 MPEG Board
SCART Board (/12/05)
AVIO Board (/37/59)
HDMI Board
IPOD Board
USB Board
