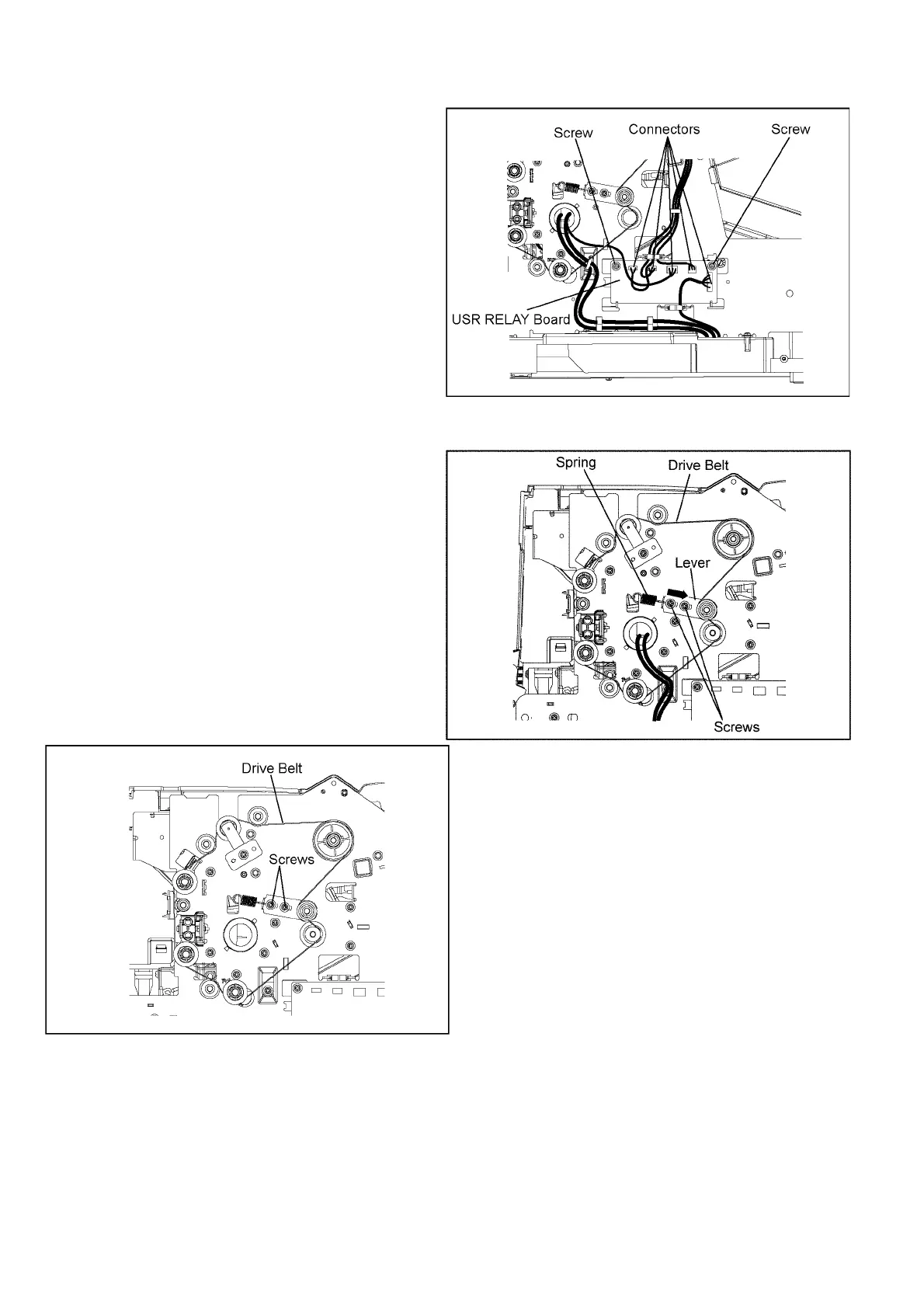

8.5.10. USR RELAY Board
8.5.11. Drive Belt
1. Remove the Left Cover. (See 8.5.9.)
2. Disconnect the 5 connectors.
3. Remove the 2 screws on the USR RELAY Board.
1. Remove the Left Cover. (See 8.5.9.)
2. Loosen the 2 screws. Push down the lever until the belt goes
slack, and then tighten the screws to hold the lever in place.
3. Remove the Drive Belt.
Reassembling Note: BELT LAYOUT
a. Reattach the Drive Belt as shown in the following figure.
b. Loosen the 2 screws. (Loosening the 2 screws will make
the belt tighten properly.)
c. Tighten the 2 screws.
