Technical Specifications, Connections and Chassis Overview
EN 2 L03.2L AA1.
1. Technical Specifications, Connections and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connection Overview
1.3 Chassis Overview
Note: Figures below can deviate slightly from the actual
situation, due to the different set executions.
1.1 Technical Specifications
1.1.1 Vision
Display type : CRT, DV, FSQ
Screen size : 14” (37 cm), 4:3
: 21” (55 cm), 4:3
Tuning system : PLL
TV Colour systems : NTSC M/N 3.58
Video playback : NTSC M/N 3.58, 4.43
: PAL B/G
Channel selections : 181 presets
: Full-Cable
1.1.2 Sound
Sound systems : FM-mono
(3005-models)
: BTSC with SAP
(3205-models)
Maximum power (W
RMS
) : 1 x 1 (3005-models)
: 2 x 1 (3205-models)
1.1.3 Miscellaneous
Power supply:
- Mains voltage (V
AC
) : 220-240 (/44 models)
: 105-132 (/55 models)
- Mains frequency (Hz) : 50 / 60
Ambient conditions:
- Temperature range (°C) : +5 to +40
- Maximum humidity : 90% R.H.
1.2 Connection Overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
1.2.1 Front Connections

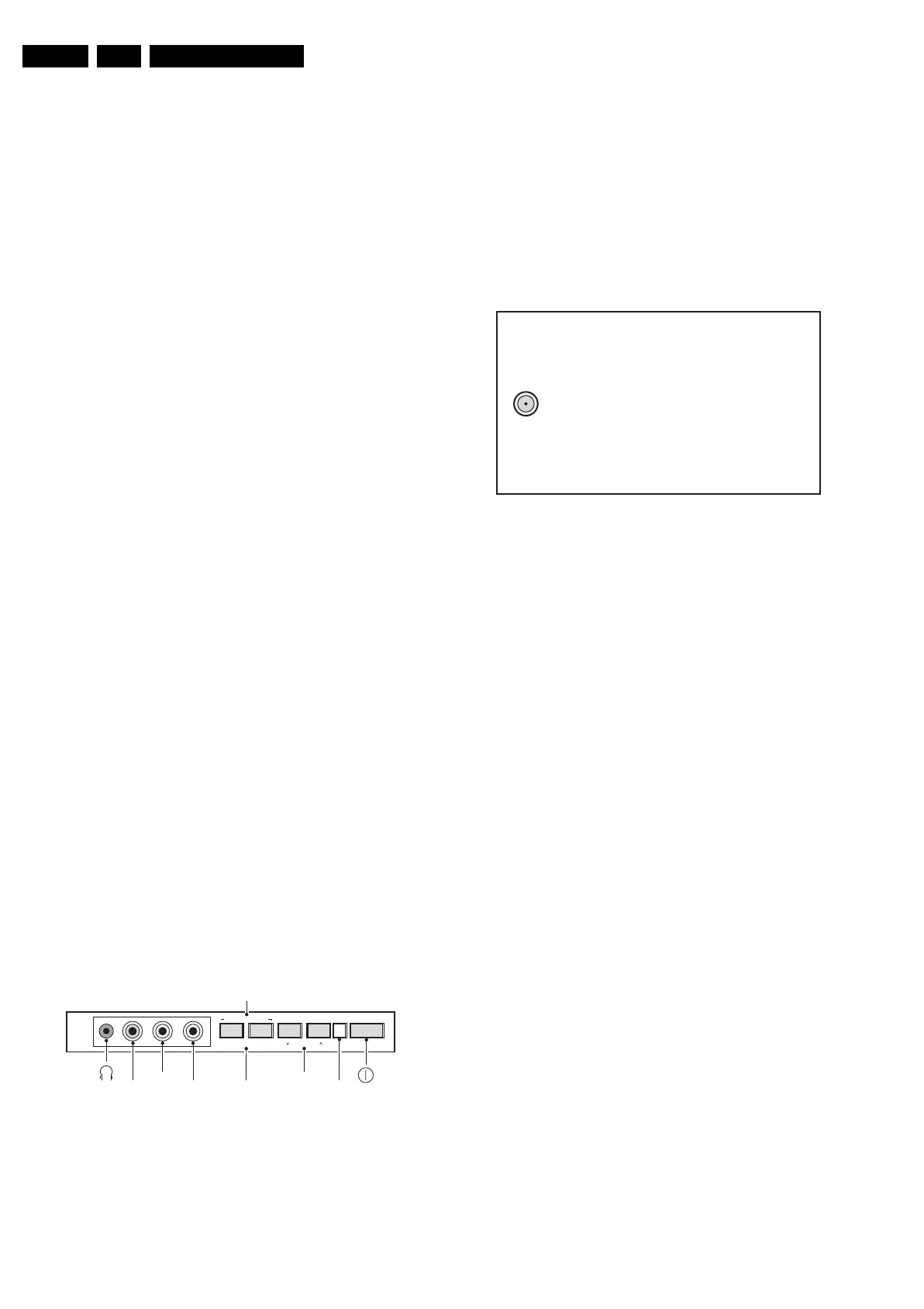

Figure 1-1 Front connections
Mini Jack: Audio Head phone - Out
Bk - Head phone 8 - 600 ohm / <4 mW ot
Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.2 V
RMS
/ 10 kohm jq
Rd - Audio R 0.2 V
RMS
/ 10 kohm jq
1.2.2 Rear Connections
Figure 1-2 Rear connections
FM Ant
1 - F type 75 ohm, coax D
INSTALL MENU POWER
- VOLUME + CHANNEL
IR LEDVIDEO
AUDIO L
- VOLUME +
CHANNEL
INSTALL/MENU
AUDIO R
E_14560_014.eps
220304
75 Ohm ANT.
E_14560_015.eps
260204
