Philips LC03E User Manual
4
of 1
of 1 rating
126 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
34
LC03E
6.
Block Diagrams, Testpoint Overviews, and Wiring Diagram

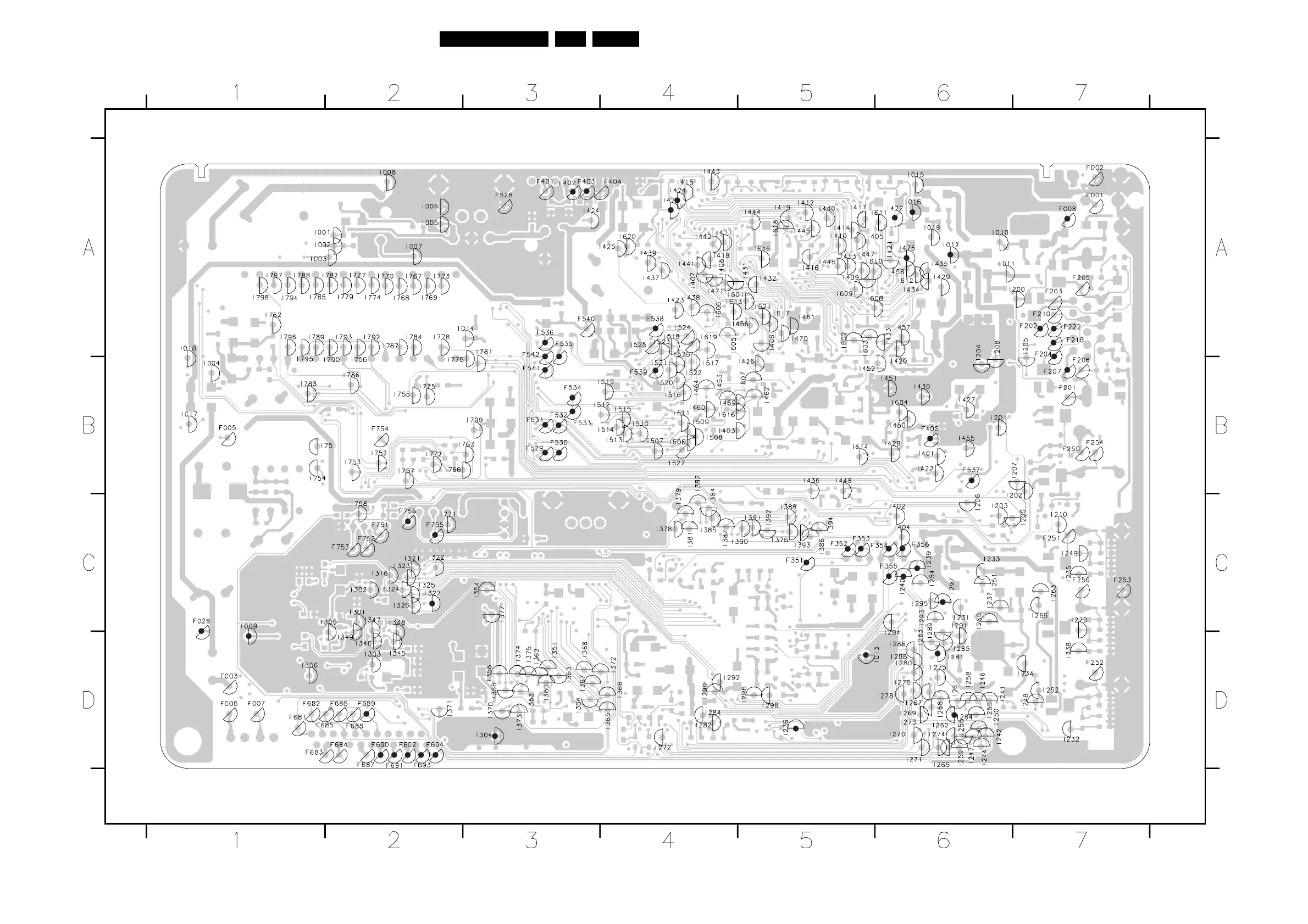

Testpoint Overview Scaler Board
CL 36532023_036.eps
061003
3139 123 5680.3
33
35
Table of Contents
Default Chapter
1
Table of Contents
1
Colour Television
1
1 Technical Specifications, Connections, and Chassis Overview
2
2 Safety Instructions, Warnings, and Notes
5
3 Directions for Use
6
4 Mechanical Instructions
14
Lcd Panel Removal
18
5 Service Modes, Error Messages, and Repair Tips
20
6 Block Diagrams
27
Block Diagram (Tuner-IF-Video)
27
Block Diagram (TV Control and Inverter Panel)
28
Block Diagram (Scaler Board)
29
I2C-IC's and Error Codes Overview
30
Powerlines Overview
31
Testpoint Overview TV Board (15"/17")
32
Mapping Testp. and Waveforms TV Board
33
Testpoint Overview Scaler Board
34
Testpoint Overview TV Board (23")
35
Wiring Diagram 15 & 17 Inch
36
Lcd Panel
36
Wiring Diagram23 Inch Wide Screen
37
7 Electrical Diagrams and PWB Lay-Outs Diagram PWB
40
TV Board: Tuner Function (Diagram A3)
40
TV Board: if Video Sync Chr
41
TV Board: SAW Filter (Diagram A5)
42
TV Board: Audio Delay Line
44
TV Board: Audio Processing
45
TV Board: Audio Ampl. (15"/17")(Diagram A9A)
46
TV Board: Audio Amplifier (23") (Diagram A9B)
47
TV Board: Local Supply
48
TV Board: SCART I/O
49
TV Board: Analog Comb Filter (Diagram A6)
50
(Diagram A4)
50
Scaler Panel: Power
70
Scaler Panel: I/O & Interface
71
Scaler Panel: Video Decoder
72
Scaler Panel: Scaler (Diagram C4)
73
Scaler Panel: Output (LVDS)
74
Scaler Panel: SDRAM (Scaler) (Diagram C6)
75
Scaler Panel: PC-In (Diagram C7)
76
Scaler Panel: up
77
Scaler Panel: Video Converter (Diagram C9)
78
Scaler Panel: HDTV Decoder (Diagram C10)
79
Side I/O Panel (Diagram D)
90
Top Control (Diagram E)
90
Inverter Panel (TN)
93
Inverter Panel (IPS)
95
Inverter Panel (IPS)
96
Front LED Panel (Diagram J)
98
8 Electrical Alignments
99
9 Circuit Descriptions
103
Power Supply
104
Lcd Display
111
Abbreviation List
115
IC Data Sheets
117
10 Spare Parts List
120
11 Revision List
126
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Philips LC03E and is the answer not in the manual?
Ask a question
Philips LC03E Specifications
General
Display Technology
LCD
Refresh Rate
60 Hz
HDMI Ports
2
USB Ports
1
Built-in Speakers
Yes
Screen Size
32 inches
Resolution
1366 x 768
