Electrical Alignments
EN 99LC03E 8.
8. Electrical Alignments
General: The Service Default Mode (SDM) and Service
Alignment Mode (SAM) are described in chapter 5. Menu
navigation is done with the CURSOR UP, DOWN, LEFT or
RIGHT keys of the remote control transmitter.
8.1 General Alignment Conditions
Perform all electrical adjustments under the following
conditions:
Mains voltage and frequency: 100-240 V / 50/60 Hz.
Allow the set to warm up for approximately 10 minutes.
Test probe: Ri > 10 MOhm; Ci < 2.5 pF.
8.2 Hardware Alignments
There are no hardware alignments foreseen for the LCD-TV.
8.3 Software Alignments
With the software alignments of the Service Alignment Mode
(SAM) the geometry, white tone and tuner (IF) can be aligned.
To store the data: Use the RC button MENU to switch to the
main menu and next, switch to ‘Stand-by’ mode.
8.3.1 SAM Menu

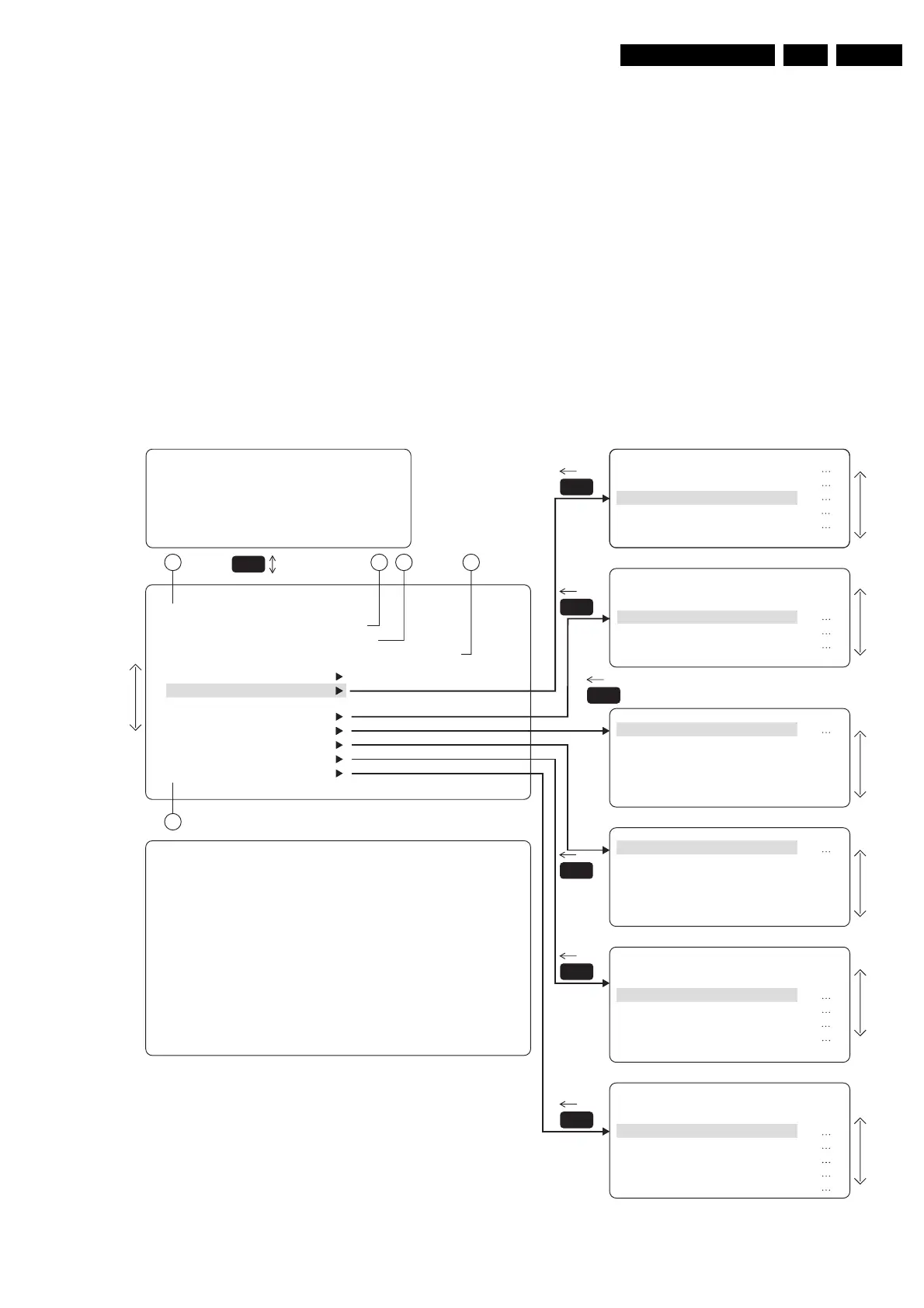

Figure 8-1 SAM Menu
NORMAL RED
PICTURE BRIGHTNESS
SOUND COLOURNESS
FEATURES CONTRAST
INSTALL SHARPNESS
STORE
SAM
SAM
SAM
SAM
ASBY
SBNP
C169
E149
AV2
TUNER
IF-PLL OFFSET
AGC
SAM Menu
MENU
MENU
MENU
MENU
MENU
MENU
CL 36532023_059.eps
160403
1
5
TYPE: 17PF9945/012 HRS:0029
SWID: LC03E21-1.11 S317 1.03
ERR : 0 0 0 0 0 0 0
OPT : 79 254 14 56 128 000
TYPE: 17PF9945/012 HRS:0029
SWID: LC03E21-1.11 S317 1.03
ERR : 0 0 0 0 0 0 0
OPT : 79 254 14 56 128 000
2 3 4
SOUND
NIC-FMAM
2CS-FM
PS-FM
PS-NIC-BGDK
PS-NIC-I
SAM
HOR.SHIFT
SAM
MENU
PERSONAL
RICH BGT
RICH COL
RICH CON
RICH SHP
RICH HUE
SAM
CLEAR ERRORS
OPTIONS
TUNER
WHITE TONE
GEOMETRY
SOUND
SMART SETTING
SAM
SDM
