EN 2 LC03E1.
1. Technical Specifications, Connections, and Chassis Overview
1.1 Technical Specifications
1.1.1 Reception
Tuning system : PLL
Colour systems : PAL B/G,
: PAL D/K,
: PAL I.
: SECAM B/G,
: SECAM D/K,
: SECAM L,
: SECAM L1
:
Sound systems : BI NICAM B/G,
: 2CS B/G,
: FM/FM (5.5-5.74),
: NICAM B/G
: (5.5-5.85),
: NICAM D/K
: (6.5-5.85),
: NICAM I (6.0-6.52),
: NICAM L (6.5-5.85)
Built-in radio type : FM
Speakers 15”/17” model : Full range
: 2 x 3 W_rms
Speakers 23” model : Full range
: 2 x 5 W_rms
Frequency bands : UVSH
IF Freq. : 38.9 MHz
Channel selections : 100 channels
: Full cable, UVSH
Aerial input : 75 ohm
: Coax, IEC-type
Pixel format : 15”: 1024 x 768 (XGA)
: 17”: 1280 x 768
(WXGA)
: 23”: 1280 x 768
(WXGA)
Viewing angle (HxV) : 15” (TN): 120x90 deg.
: 15" (IPS): 176x176
deg.
: 17” (TN): 160x160
deg.
: 17" (IPS): 176x176
deg.
: 23” (IPS): 176x176
deg.
1.1.2 Miscellaneous
Mains voltage 15”/17” model : External power
Supply
: Input: 100-240 V_ac,
1.5 A
: Output: 12 V_dc,
: +/- 0.6 V, 60 W
Mains voltage 23” model : External power
Supply
: Input: 100-240 V_ac,
2.5 A
: Output: 24 V_dc,
: +/- 1.2 V, 5A
Mains frequency : 50/60 Hz
Operating temperature : + 5 to + 35 deg. C
Storage temp. : -20 to 60 deg. C.
Maximum humidity : 90 % R.H. max
Power dissipation : 15”: 47 W
: 17”: 51 W
: 23”: 55 W
Standby Power dissipation : 1 W
Weight : 15”: 6.2 kg
: 17”: 6.4 kg
: 23”: 11.5 kg
Dim. 15” model (WxHxD) : 517 x 307 x 65 mm
Dim. 17” model (WxHxD) : 480 x 302 x 65 mm
Dim. 23” model (WxHxD) : 705 x 375 x 80 mm
1.2 Connections
1.2.1 Front + Top Controls

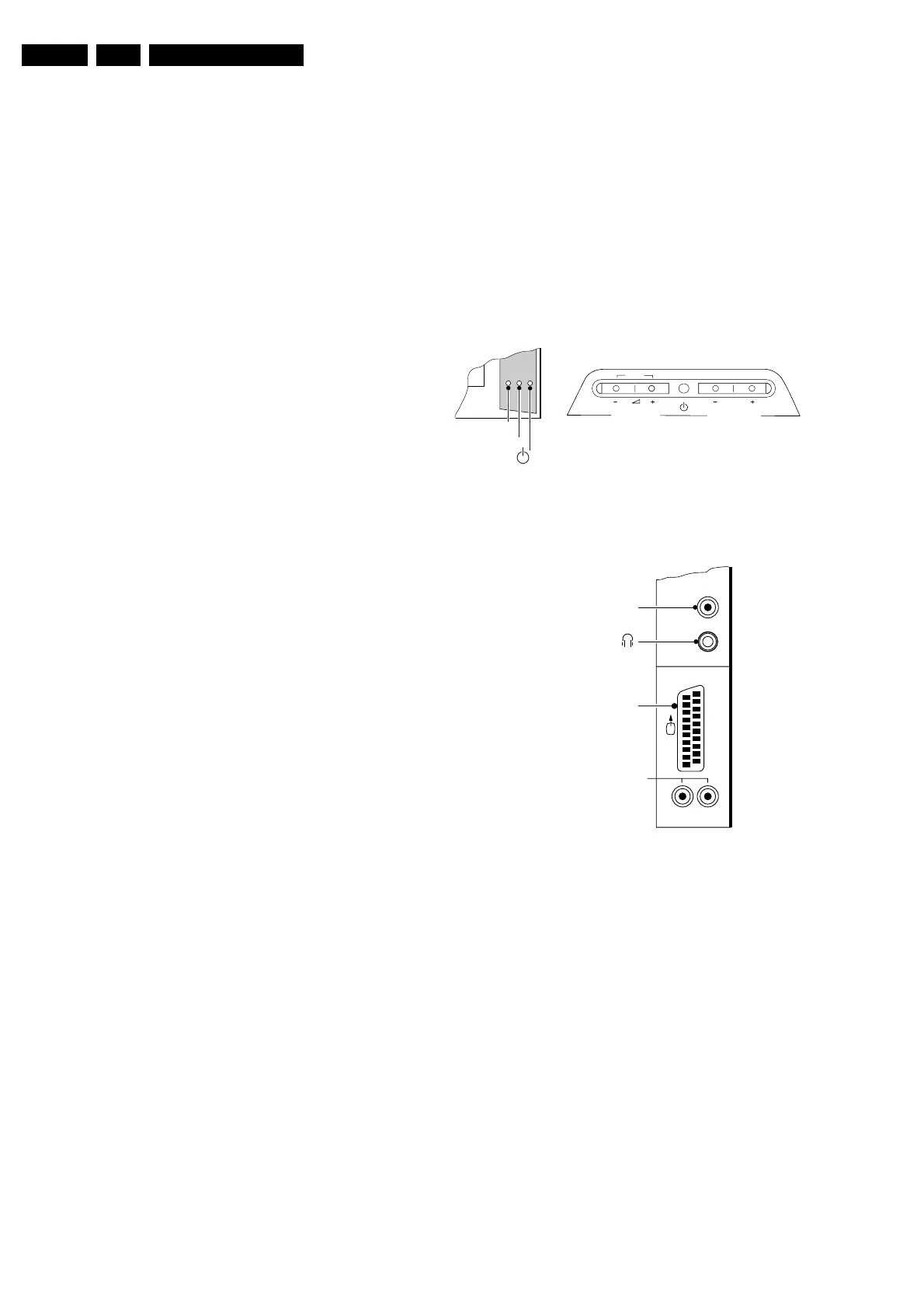

Figure 1-1 Left side connections
1.2.2 Rear Connections Part 1
Figure 1-2 Rear Connections Part 1
Subwoofer out
1 - Var. level 1x kq
Headphone, stereo
1 - 32 - 600 ohm o
Audio - R
1 - 0.5 V_rms/10 kohm kq
Audio - L
1 - 0.5 V_rms/10 kohm kq
MENU
P
TOP CONTROLS
VOLUME
PROGRAM
Red
IR
Light sensor
(23" only)
CL 36532023_065.eps
100403
LR
Audio Out
EXT. 2
SUBWOOFER
CL 36532054_018.eps
290703
