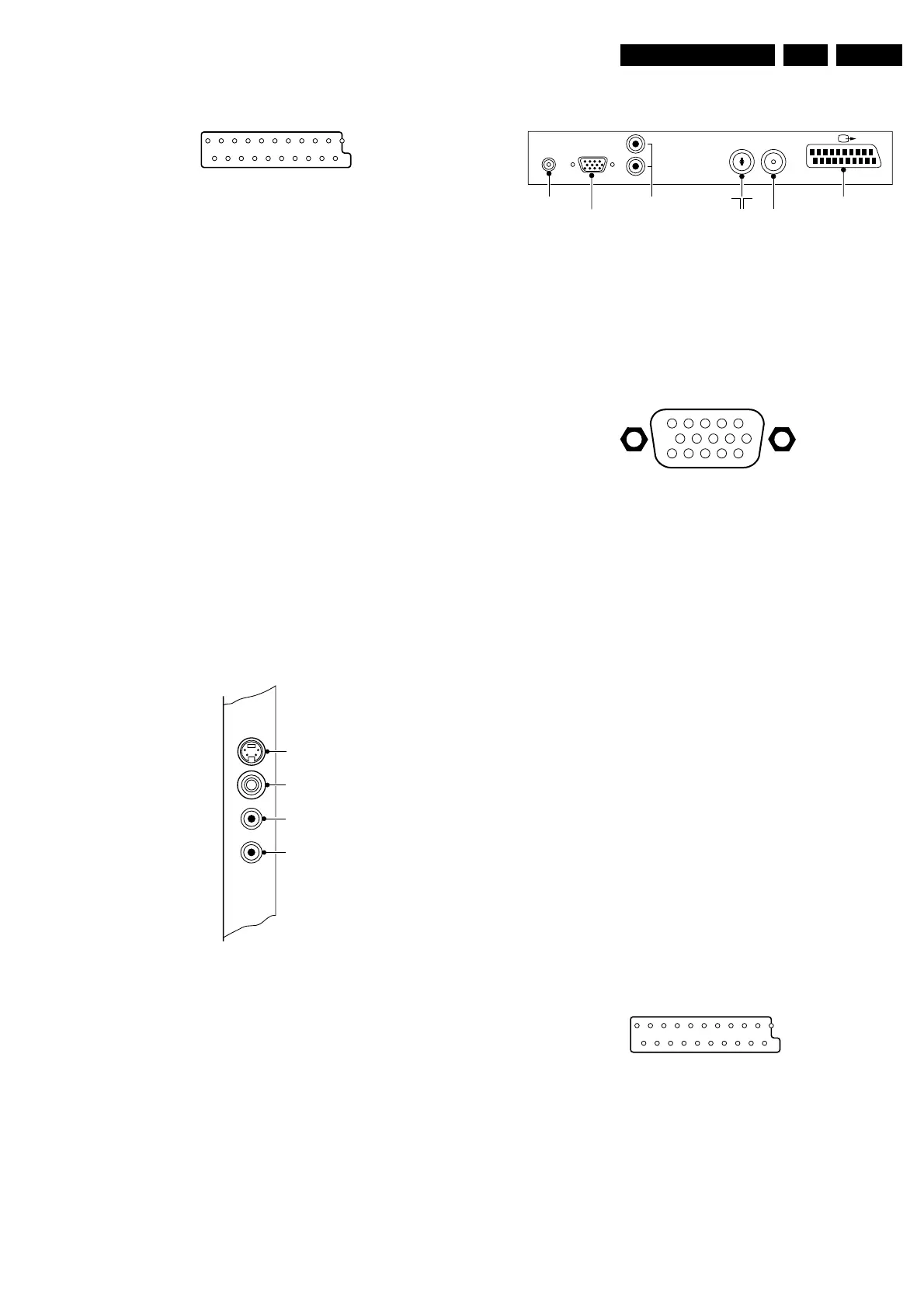

Technical Specifications, Connections, and Chassis Overview
EN 3LC03E 1.
SCART EXT/2 (CVBS +YC) Only for 17’’ and 23” models
Figure 1-3 SCART connector
1 - Audio - R k
2 - Audio - R 0.5 V_rms/10 kohm j
3 - Audio - L k
4 - Audio Ground H
5 - Blue Ground H
6 - Audio - L 0.5 V_rms/10 kohm j
7-N.C.
8 - CVBS-status2 0 - 1.3 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3
9 - Green Ground H
10 - P50
11 - N.C.
12 - N.C.
13 - Red Ground H
14 - Blanking Ground H
15 - C 1 V_pp/75 ohm j
16 - N.C.
17 - Video in/out Ground H
18 - RGB sw. ctrl Ground H
19 - CVBS 1 V_pp/75 ohm k
20 - CVBS 1 V_pp/75 ohm j
21 - Common Ground H
1.2.3 Rear Connections Part 2
Figure 1-4 Rear Connections Part 2
S-VHS - In Hosiden
1 - Y Ground H
2 - C Ground H
3 - Y 1 V_pp/75 ohm j
4 - C 0.3 V_pp/75 ohm j
Video - In (Cinch)
1 - CVBS 1 V_pp/75 ohm jq
Audio - In (Cinch)
1 - Audio - L 0.5 V_rms/10 kohm jq
2 - Audio - R 0.5 V_rms/10 kohm jq
1.2.4 Rear Connections Part 3
Figure 1-5 Rear Connections Part 3
DC - In
1 - 12 V_dc/5A/60W jr
VGA- in (Sub-D)
Figure 1-6 VGA Connector
1 - Red 0.7 V_pp/75 ohm j
2 - Green 0.7 V_pp/75 ohm j
3 - Blue 0.7 V_pp/75 ohm j
4 - Sense Ground
5 - Ground
6 - Red Ground H
7 - Green Ground H
8 - Blue Ground H
9- +5V
10 - Sync Ground H
11 - Sense Ground H
12 - Bi-direct. data
13 - H-sync j
14 - V-sync j
15 - Data clock
Audio - PC In
1 - Audio - R 0.5 V_rms/10 kohm jq
2 - Audio - L 0.5 V_rms/10 kohm jq
Aerial - In (IEC)
1 - IEC type 75 ohm, coax D
FM Ant (IEC)
1 - IEC type 75 ohm, coax D
SCART EXT1 - In/Out (RGB/YUV and CVBS)
Figure 1-7 SCART connector
1 - Audio - R 0.5 V_rms/1 kohm k
2 - Audio - R 0.5 V_rms/10 kohm j
3 - Audio - L 0.5 V_rms/1 kohm k
4 - Audio Ground H
5 - Blue Ground H
6 - Audio - L 0.5 V_rms/10 kohm j
121
202
CL96532137_056.eps
171199
L
R
S-Video
Video In
Audio
CL 36532054_019.eps
290703
DC In
PC Input (VGA)
Audio In (PC)
FM ANT
EXT. 1
L
R
CL 36532054_020.eps
290703
CL 16532023_043.eps
210901
1
6
10
11
5
15
121
202
CL96532137_056.eps
171199
