EN 4 LC03E1.
7 - Blue 0.7 V_pp/75 ohm j
8 - CVBS-status 0 - 1.3 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Green Ground H
10 - N.C.
11 - Green 0.7 V_pp/75 ohm j
12 - N.C.
13 - Red Ground H
14 - Blanking Ground H
15 - Red 0.7 V_pp/75 ohm j
16 - RGB-status/
FBL 0 - 0.4 V: INT
1 - 3 V: EXT/75 ohm j
17 - Video in/out Ground H
18 - RGB sw. ctrl Ground H
19 - CVBS-out 1 V_pp/75 ohm k
20 - CVBS-in 1 V_pp/75 ohm j
21 - Common Ground H

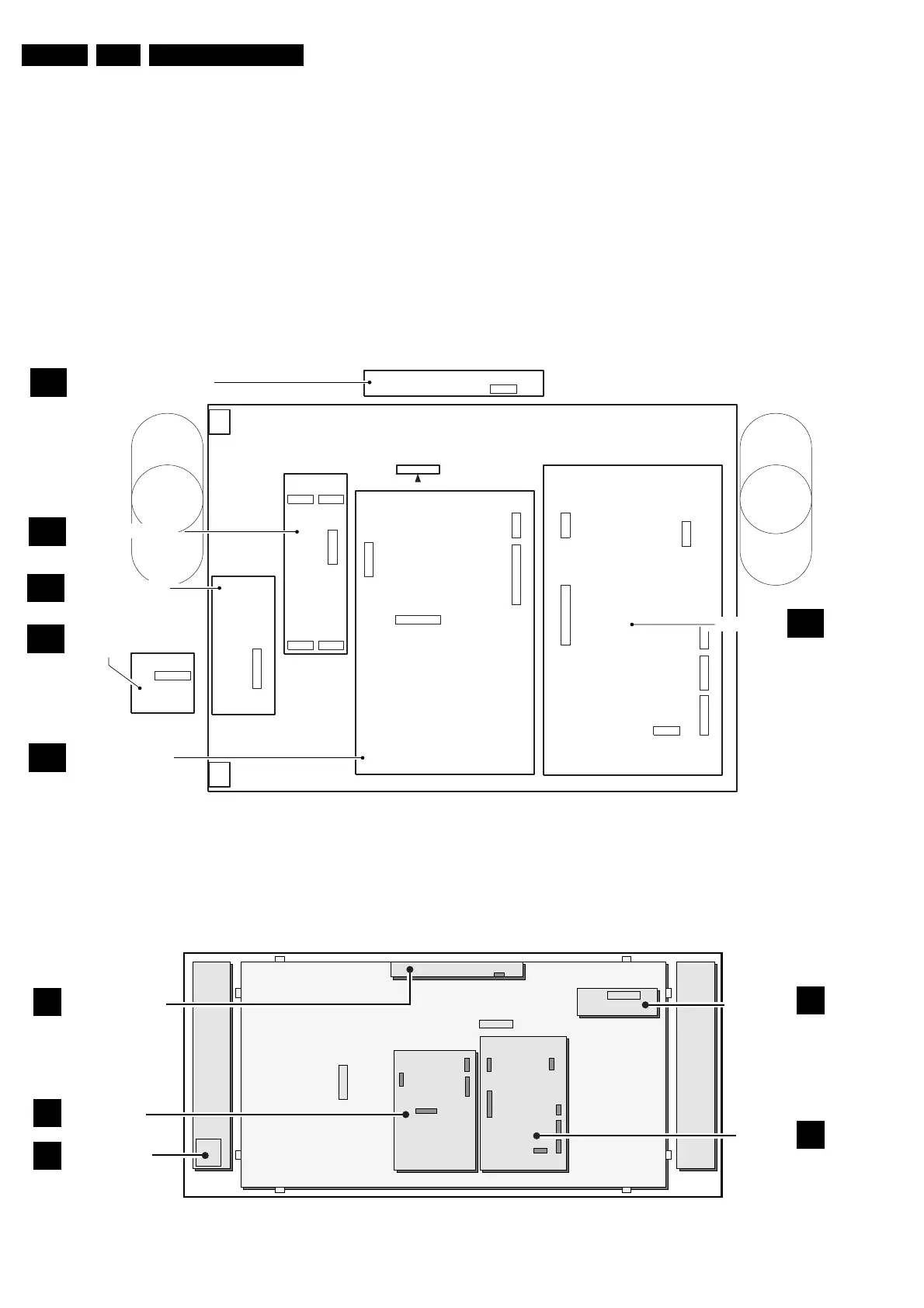

1.3 Chassis Overview
1.3.1 15”/17” model
Figure 1-8 Chassis Overview 15”/17” model
1.3.2 23” model
Figure 1-9 Chassis Overview 23” model
ComPair
Right
Speaker
Left
Speaker
TO LCD PANEL
LCD PANEL
CL 36532023_067.eps
140403
TOP CONTROL PANEL
E
A
INVERTER PANEL
IN
SIDE I/O PANEL
D
SCALER BOARD
C
FRONT LED
PANEL
J
TV BOARD
LCD PANEL
TV BOARD
SIDE I/O PANEL
SCALER BOARD
TOP CONTROL PANEL
Speaker assy R
FRONT LED PANEL
Speaker assy L
CL 36532044_022.eps
011003
To LCD
To Inverter
E
D
J
C
A
ComPair
