Philips LFH9750 - Overview - Display Indicators and Symbols

6 User manual
16
USB socket (for PC download)
17
Conference microphone socket
(for Philips LFH9172)
18
Microphone socket
(for Philips LFH0276/10 and LFH0278/10)

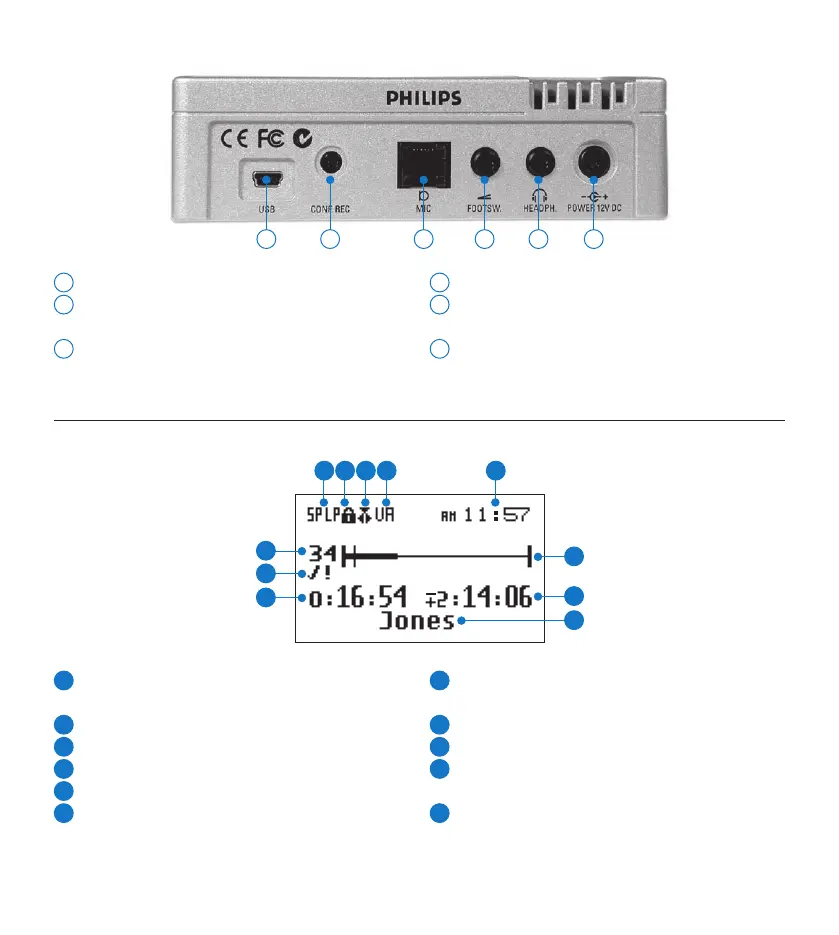

3.2 Overview – display indicators and symbols
19
Foot control socket (for Philips LFH2210)
20
Headphone socket (for Philips LFH0234 and
LFH0334)
21
Power supply socket (for Philips LFH0155)
16 17 18 19 20 21
1
Recording format (Standard Play or Long
Play mode)
2
Memory card is write-protected (locked)
3
Insert recording mode is activated
4
Voice-activated recording mode is enabled
5
Current time
6
Position bar
1 2 3 4 5
11
10
9
6
7
8
7
Remaining recording time (–) or used-up
recording time (+) on the memory card
8
Keyword 1 (such as author name)
9
Recording / playback time
10
Recording is marked finished/locked (✓) and
has priority assignment (!)
11
Recording number
