EN 174.LX9000RDismantling Instructions
Dismantling the
ASP Board
• Dismantle MDM Board (as described before) first.

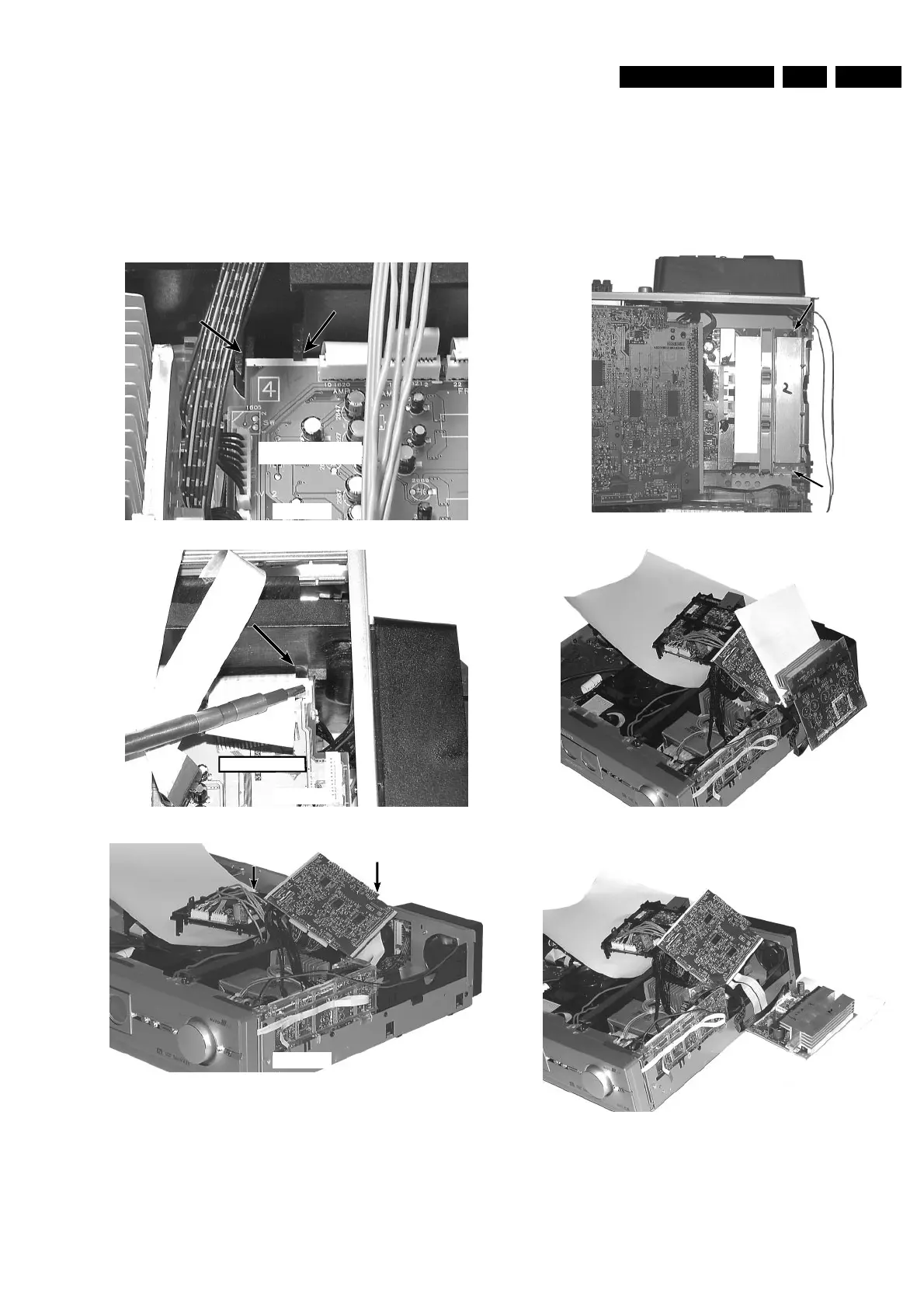

• Release catches 2 as shown in picture 8.
• Lift ASP Board on the outer side and pull it out (at the inner
side the board is 2x held by guidings on the thermal partition →
pictures 11 and 12 show the guidings on both sides )
• Raise the board up and turn it, together with the MDM Board,
up to it´s service position → see picture 10
picture 13
Mounting the
ASP Board
• To mount the ASP board proceed in reverse order to
description above.
• Take care that the board is fed correctly into the guidings
at the backside (left side).
• Press the board on the outer side down until catches
2
engage.
Dismantling the
Amplifier Board
• Dismantle MDM Board and ASP Board (as described before)
first.
• Remove 2 screws as shown in picture 14.
• If necessary, plug cables to loadspeaker socket off.
• Put Amplifier Board in a desired service position as shown in
pictures 15 and 16.
