EN 16 4. LX9000R Dismantling Instructions

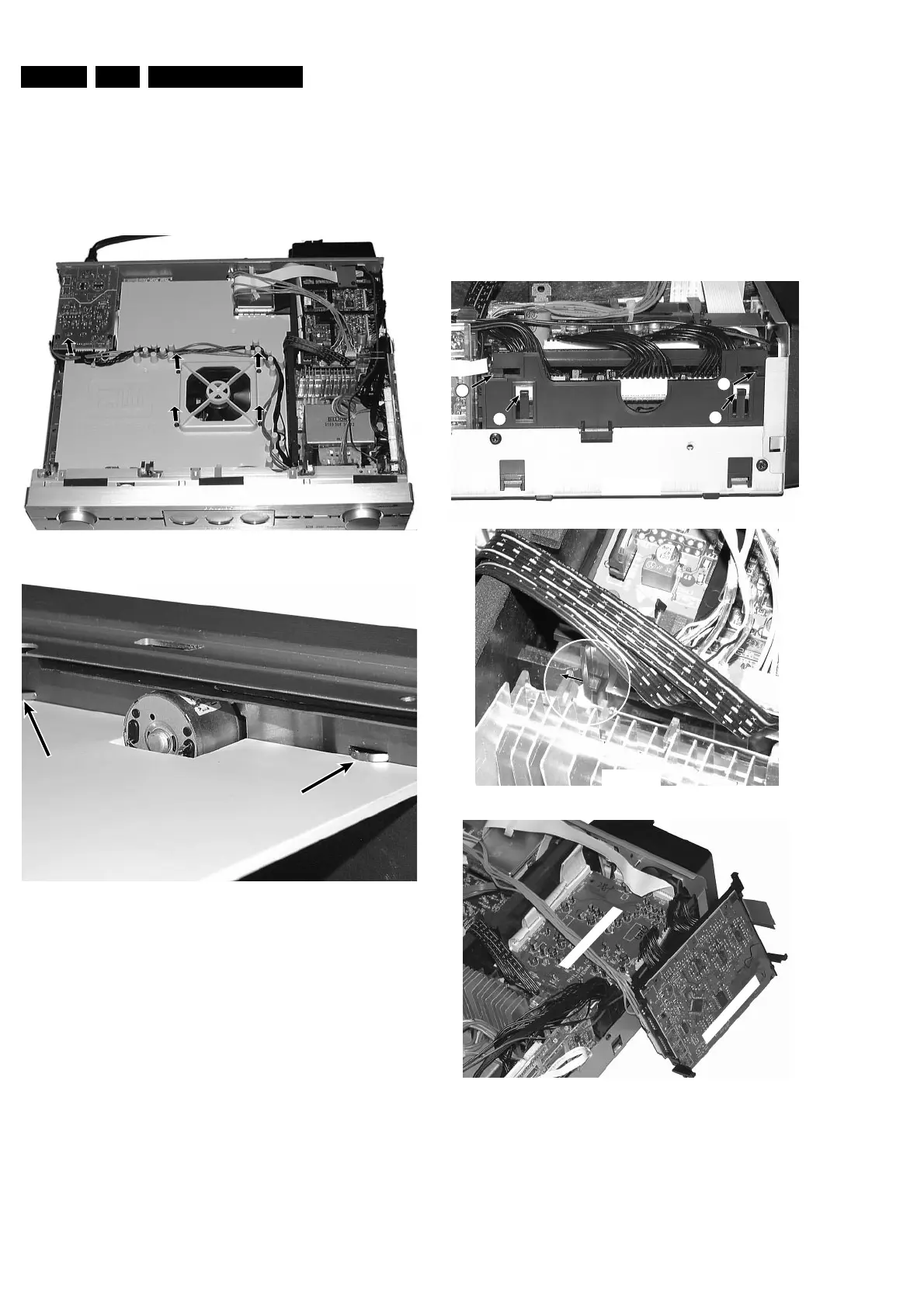

Removal of Air guide plate
picture 6
• Remove 5 screws as shown in picture 6.
• Remove cables from the guidings
• Raise airguide plate at the rear to release it from the
guidings at the front side and pull it up.
support on front side
picture 7
Dismantling the MDM Board
• Release catches 1 as shown in picture 8.
• Lift MDM Board on the outer side and move it left to
release hooks (at the inner side the support frame is 2x
hooked onto the ASP Board → picture 9 shows hook on
the left side )
• Raise the board up and turn it out to it´s service position →
see picture 10
1
1
2
2
picture 8
MDM Board
picture 9
MDM Board
ASP Board
picture 10
Mounting the MDM Board
• To mount the MDM board proceed in reverse order to
description above.
• Take care that hooks at the backside (left side) are
positioned correctly and move the board to the outside to
fix the hooks.
• Press the board on the outer side down until catches 1
engage.
