EN 194.LX9000RDismantling Instructions
Dismantling the
Front panel assembly
The front panel assy consists of 2 cabinet parts, the ornamental
aluminium front and the plastic front cabinet where the printed circuit
boards and other technical parts are mounted.
Dependent on the location which is wanted to be accessed the front
panel assy can be detached either as complete assy or separated in
aluminium front and plastic front.
To avoid scratches on the ornamental part it is recommended
always to remove the aluminium front first.
Attention:
During dismantling and mounting the front panel assy the
connection pins of the display-motor may touch the metal
cabinet. This short circuit easy causes a destruction of safety
resistor 3550, located on Key Board left. Charged capacitors
deliver sufficient energy even when the set is switched off.
Therefore insolate the motor connections with a piece of
insolating tape before pulling out the front assy!
Dismantling the
ornamental Aluminium Front

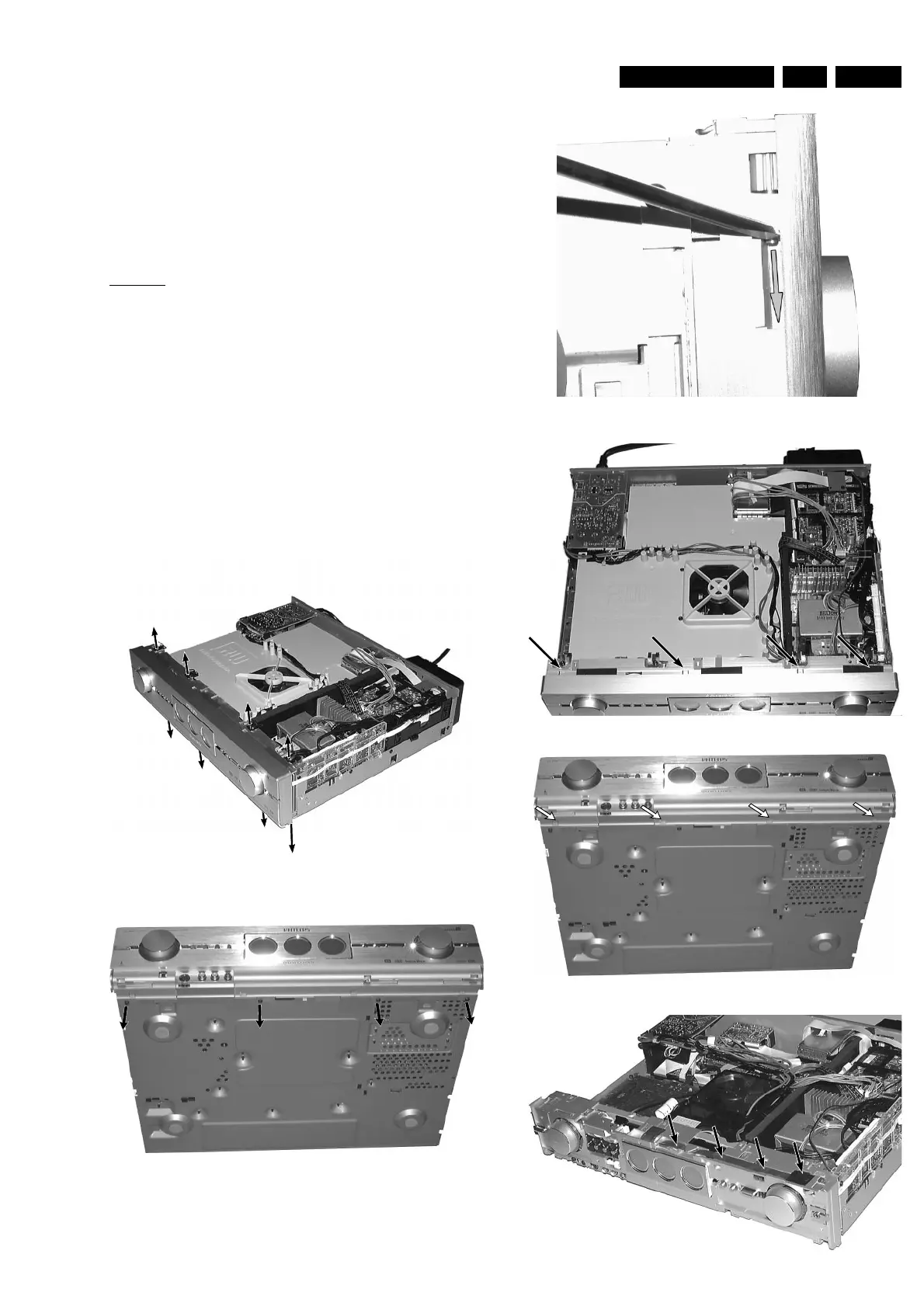

• Loosen 8 screws as shown in picture 23 and 24.
• Remove the front flap by loosening the axles first → see picture 25
• Release 7 catches as shown in picture 26 and 27.
• Pull Aluminium Front slightly frontwards.
picture 23
