• Dismantle Front assembly as described before and put it to
service position as shown in picture 33.
• Release catch as shown in picture 34, move slider left until it is
released and fetch it out.

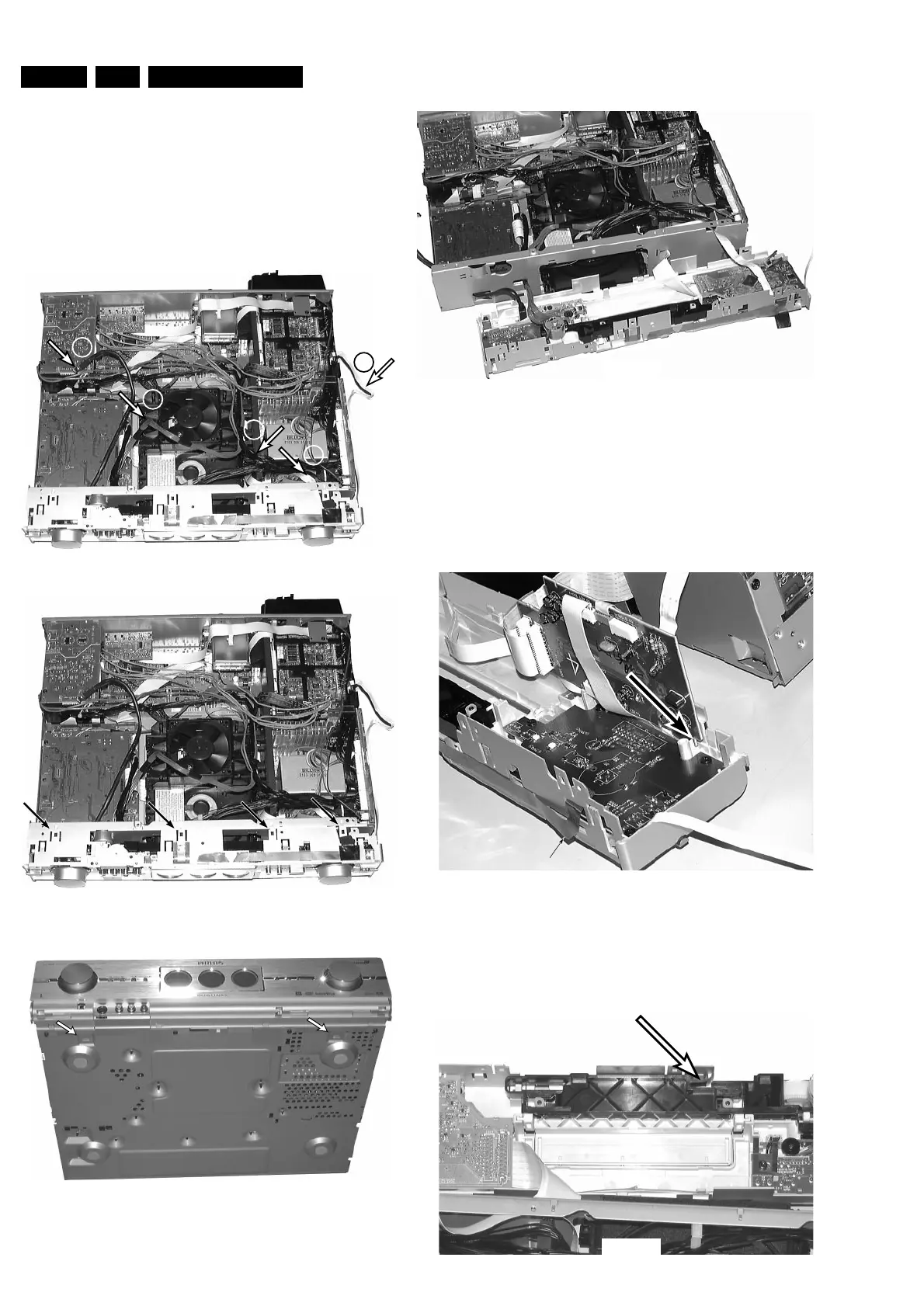

EN 20 4. LX9000R Dismantling Instructions
key board left
A/V front
connectors
Control board
picture 32
Dismantling the
Plastic Front cabinet
• Loosen 8 screws as shown in picture 23 and 24.
• Plug Firewire cable from DVIO Board off 1 and release all cables
as shown in picture 29 to give them a proper free length for
moving front assy out.
• Release 6 catches as shown in picture 30 and 31.
• Pull Plastic Front slightly frontwards while taking care of the
cables, especially to the flat foil cable 4 on the right side.
• Put front cabinet on the table as shown in picture 32.
Plastic Front: 4 x catch on top
Plastic front:
2 x catch on bottom
Display connection cable disconnected
picture 33
Service position
Control board / Key Board right
• Dismantle front assy as described before.
• Plug off flex foil cable to display.
• Loosen 1 screw.
• Lift the board on the rear side first in order to release it from the
catches on the front side.
• Turn Control Board up and fix it in the slot as shown in picture 33.
Dismantling the
Slider of the display moving mechanism
picture 34
