Philips MC235 User Manual

10
3140 115 xxxxx
English

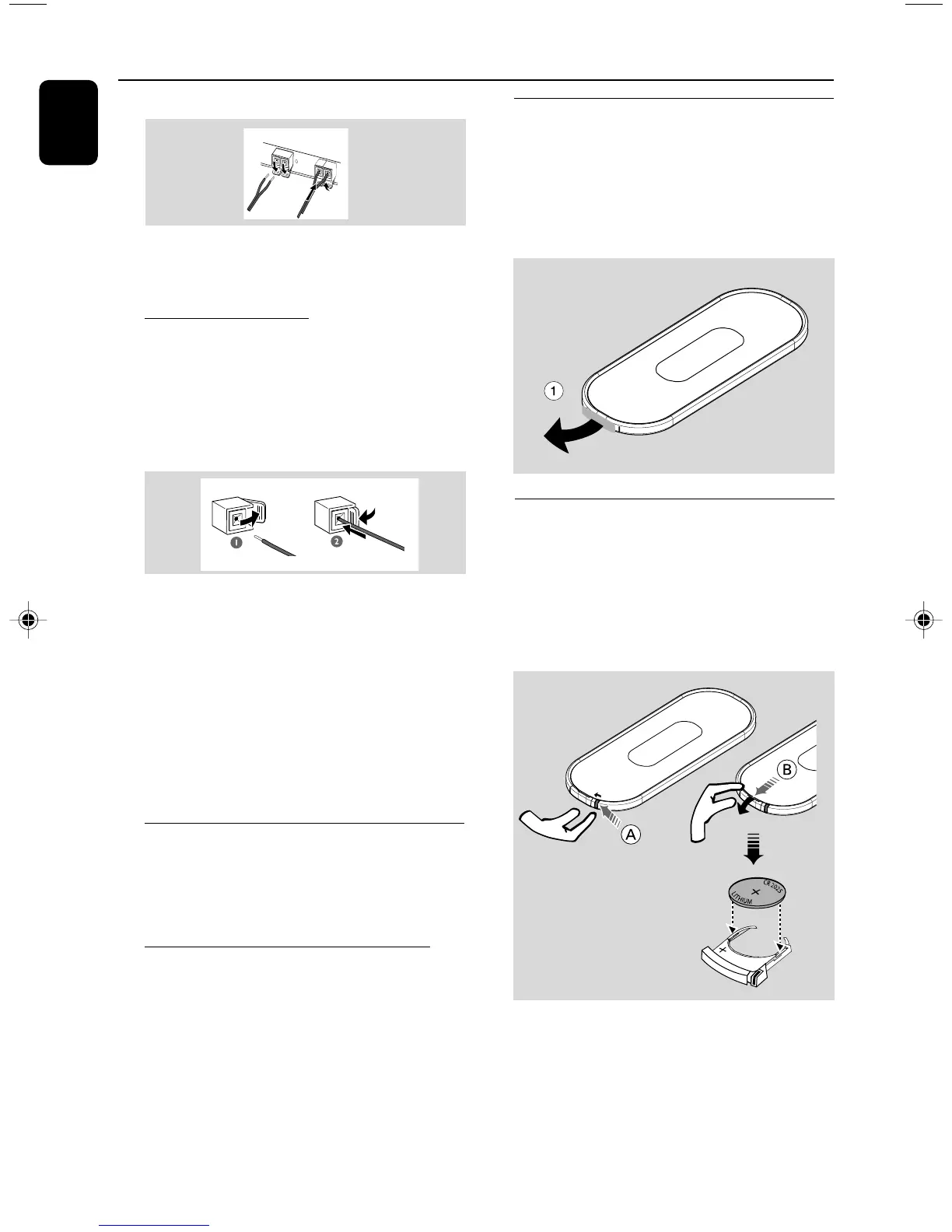

Preparations
FM Antenna
● For better FM stereo reception, connect an
outdoor FM antenna to the FM AERIAL (FM
ANTENNA) terminal.
C Speakers Connection
Front Speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to "RIGHT" and left
speaker to "LEFT", coloured (marked) wire to
"+" and black (unmarked) wire to "-".
● Fully insert the stripped portion of the speaker
wire into the terminal as shown.
Notes:
–For optimal sound performance, use the
supplied speakers.
– Do not connect more than one speaker to any
one pair of + / - speaker terminals.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
Optional connection
The optional equipment and connecting cords
are not supplied. Refer to the operating
instructions of the connected equipment for
details.
Connecting other equipment to your
system
Connect the audio left and right OUT terminals
of a TV, VCR, Laser Disc player, DVD player or
CD Recorder to the AUX-IN terminals.
Note:
– If you are connecting equipment with a mono
output (a single audio out terminal), connect it to
the AUX IN left terminal. Alternatively, you can use
a “single to double” cinch cable (the output sound
still remain mono).
Before using the remote control
1 Pull out the plastic protective sheet.
2 Select the source you wish to control by
pressing one of the source select keys on the
remote control (for example CD, TUNER).
3 Then select the desired function (for example
ÉÅ , í , ë).
plastic
protective
sheet
CAUTION!
– Perchlorate Material-special handling
may apply. See www.dtsc.ca.gov/
hazardouswaste/perchlorate.
– Batteries contain chemical substances,
so they should be disposed off properly.
Replacing battery (lithium
CR2025) into the remote control
1 Pull out the knob A slightly to the left.
2 Pull out the battery compartment B .
3 Replace a new battery and fully insert the
battery compartment back to the original
position.
1
2
pg001-017_MC235B_37_Eng 9/2/07, 13:4510

Philips MC235 Specifications

General

Display type	LCD
Backlight color	Blue
Backlight display	Yes
Apple docking	No
Headphone connectivity	3.5 mm
Playback modes	Program, Repeat, Shuffle
Channels quantity	40 channels
Disc types supported	CD, CD-R, CD-RW
Audio formats supported	-
FM band range	87.5 - 108 MHz
MW band range	531 - 1602 kHz
Supported radio bands	FM, MW
Preset stations quantity	40
Impedance	4 Ω
Speaker type	2-way
Frequency range	63 - 16000 Hz
RMS rated power	10 W
Woofer diameter	76 mm
Number of speakers	2
Signal-to-Noise Ratio (SNR)	62 dB
Peak Music Power Output (PMPO)	400 W
Type	Home audio micro system
Product color	Grey, Silver
Disc loading type	Front
Network integrated ports	3.5mm stereo line in
Power source	AC
Input voltage	220-240 V
Input frequency	50 Hz
Power consumption (standby)	4 W

Weight and Dimensions

Depth	96 mm
Width	250 mm
Package depth	300 mm
Package width	328 mm
Package height	313 mm
Package weight	5300 g
Main speaker width	166 mm
Main speaker height	245 mm
