Philips MX2500/01 - Step 2: Connecting speakers and subwoofer

7
English

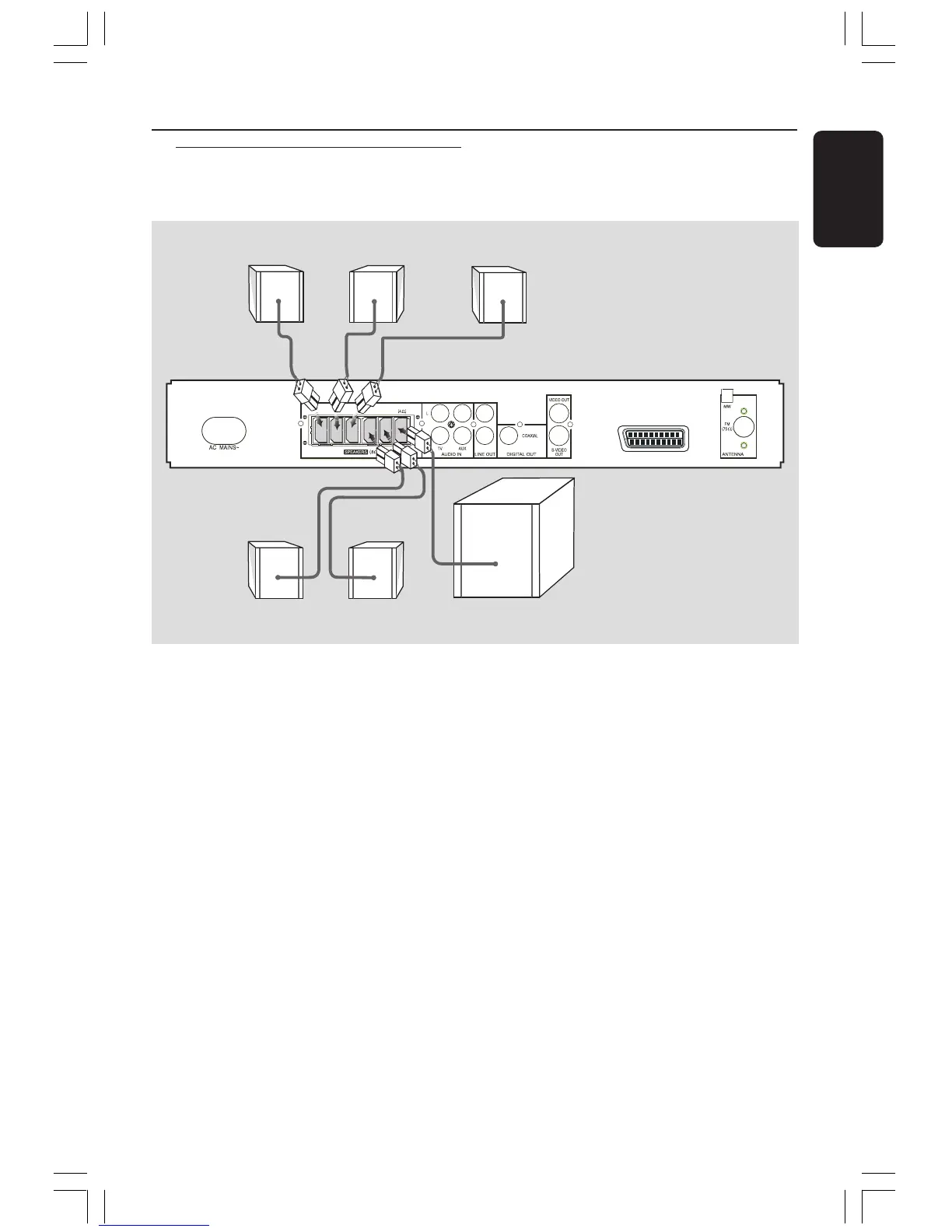

Connect the supplied speaker systems using
the fixed speaker cables by matching the
colours of the jacks and speaker cables.
Helpful Hint:
– Ensure that the speaker cables are correctly
connected. Improper connections may damage the
system due to short-circuit.
Step 2: Connecting speakers
and subwoofer
Connections
FRONT
RIGHT
FRONT
LEFT
REAR
RIGHT
REAR
LEFT
SUBWOOFER
FRONT
CENTER
SCART OUT
Front Speaker
(Right)
Front Speaker
(Left)
Rear Speaker
(Right)
Rear Speaker
(Left)
Passive
Subwoofer
Centre
Speaker
