Philips MX3900D - Location of PC Boards and Version Variations; Version Variations

1-2

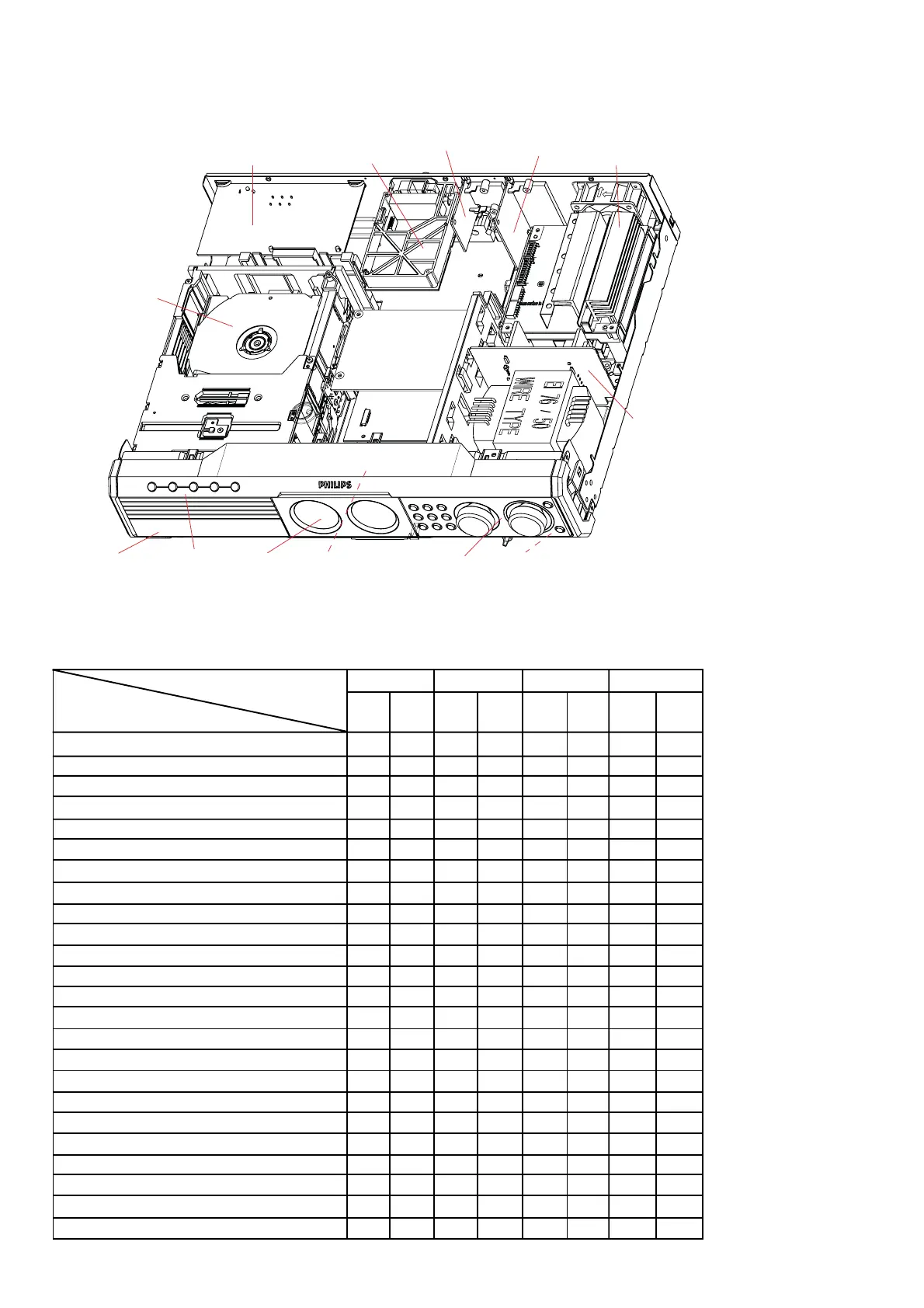

LOCATION OF PC BOARDS
AMPLIFER BOARD
100W = 2PCS
75W = 1PC
MAINS & ECO
STBY BOARD
5DTC-DVD
LOADER
MECHANISM
+
CONTROL
BOARD
ECO6 TUNER
BOARD
SUPPLY
BOARD
CD222 FE
BOARD
CD222 BE
BOARD
SPK I BOARD
FRONT
HP & MIC
PART
PCMCIA BOARD
(just in front of the
CD222 FE board)
FRONT
DTC KEY
PART
FRONT
STANDBY
PART
FRONT
DISPLAY
PART
FRONT
CONTROL
PART
AV BOARD
SPK II BOARD
/37 /37 /37 /17
Karaoke - - - -
News - - - -
RDS - - - -
Pro-Scan x x x x
PCMCIA - - - -
Standby - Clock Display x x x x
ECO Standby - No Display x x x x
Voltage Selector - - - -
Digital In / Out x x x x
Aux Input x x x x
TV Input x x x x
Line Output x x x x
SCART output - - - -
Pr, Pb & Y Outputs x x x x
CVBS Output x x x x
S-Video Output x x x x
Headphone Socket x x x x
Tuner board - ECO6 System non-Cenelec x x x x
Tuner board - ECO6 System Cenelec - - - -
Amplifier board - 1pc (75W 6-Channel) x x x x
Amplifier board - 1pc (75W 7-Channel) - - - -
Amplifier board - 2pc (100W 6-Channel) - - - -
VERSION VARIATIONS:
Type /Versions: MX3900D MX3910D MX3950D MX3960D
Features &
Board in used:
