Philips MX5100VR - Page 76

1-12-63
1-12-64

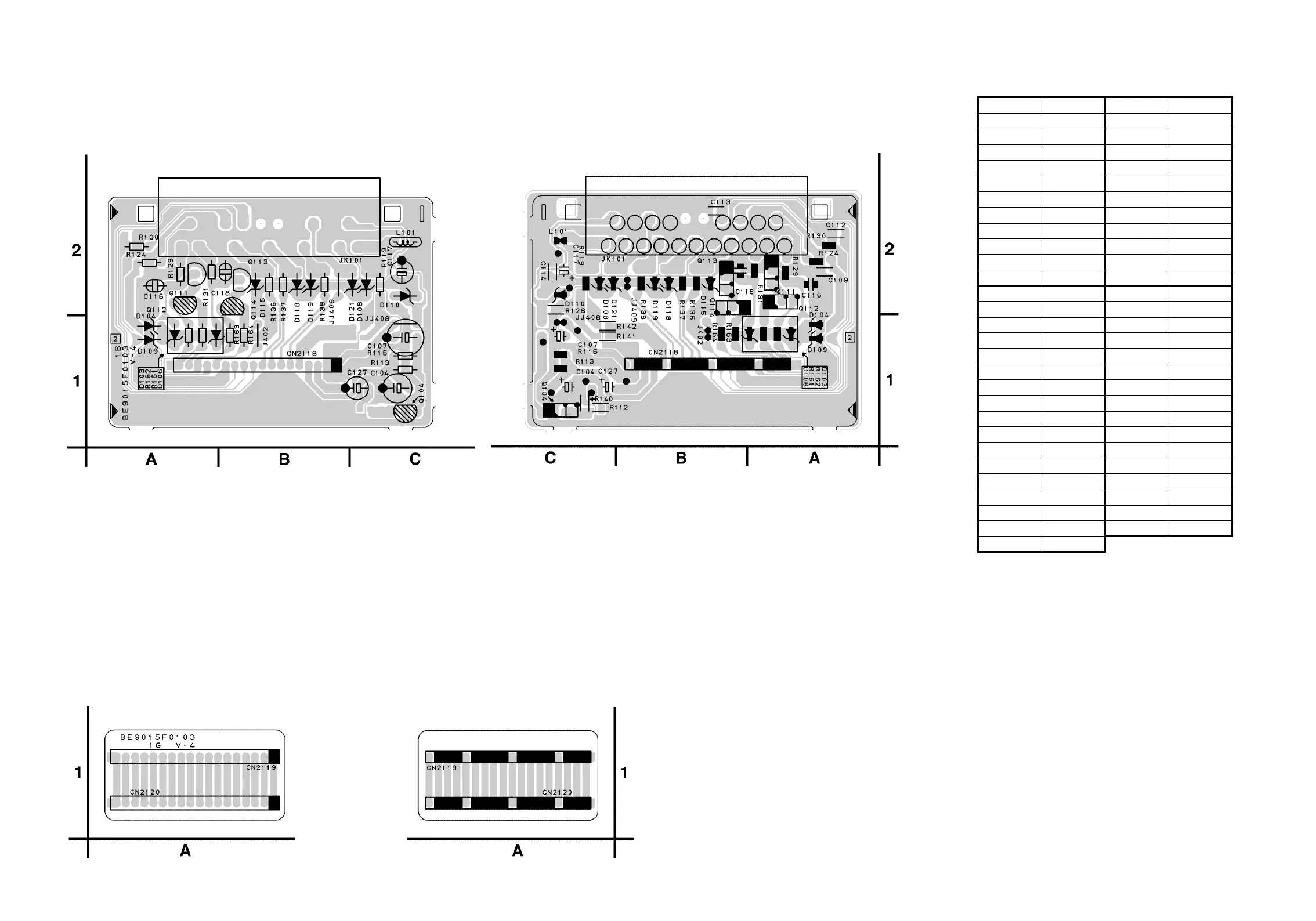

Jack-A CBA Top View Jack-A CBA Bottom View
BE9015F01031B
Junction-A CBA Top View Junction-A CBA Bottom View
BE9015F01031G
JACK-A CBA
Parts Location Guide
Ref No. Position Ref No. Position
C104 C-1 Q111 A-2
C107 C-1 Q112 A-2
C109 A-2 Q113 B-2
C112 A-2 Q114 B-2
C113 B-2
C114 C-2 R112 C-1
C116 A-2 R113 C-1
C117 C-2 R116 C-1
C118 B-2 R119 C-2
C127 C-1 R124 A-2
R128 C-2
CL2118 B-1 R129 A-2
R130 A-2
D103 A-1 R131 A-2
D104 A-1 R136 B-2
D106 A-1 R137 B-2
D108 C-2 R138 B-2
D109 A-1 R140 C-1
D110 C-2 R141 B-1
D115 B-2 R142 B-1
D118 B-2 R161 A-1
D119 B-2 R162 A-1
D121 C-2 R163 B-1
R164 B-1
L101 C-2
JK101 C-2
Q104 C-1
CAPACITORS TRANSISTORS
TRANSISTORS
COIL
MISCELLANEOUS
DIODES
CONNECTOR
RESISTORS
