Philips PL22.06 - CABINET DISASSEMBLY INSTRUCTIONS

4-1 PL22.06-A_DC

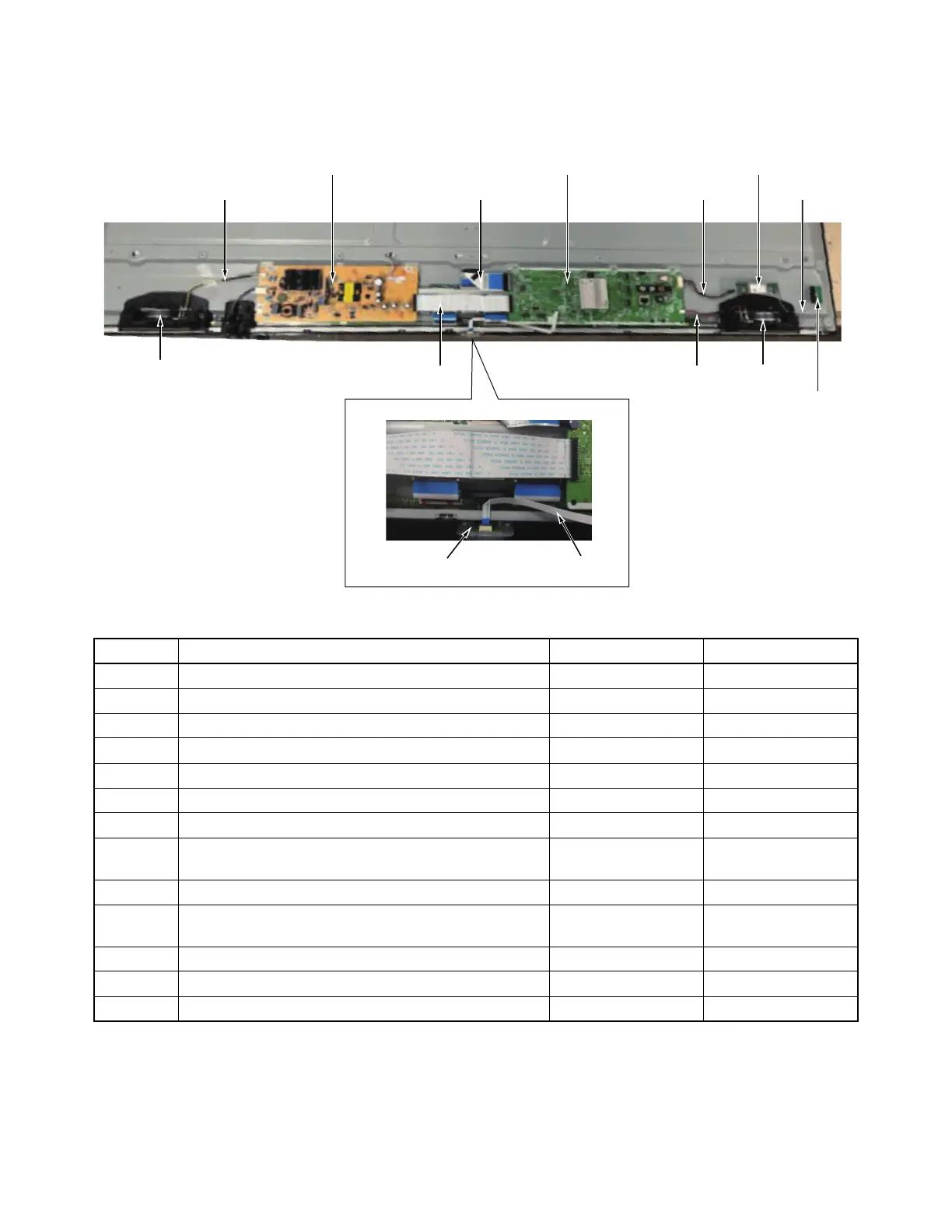

CABINET DISASSEMBLY INSTRUCTIONS
Ref.No. Description Part Number Type
Digital Main CBA Unit AF1R1MMA-001
IR Sensor CBA Unit AF1R1MJC-001
Power Supply CBA AF1R1MPW-001
CL652 WIRE ASSEMBLY 2PIN 2PIN/140MM WX1AF7U0C213
CL3102 FFC WIRE ASSEMBLY 5PIN 5PIN/FFC/208MM WX1AF7U0C301
CL3601 FFC WIRE ASSEMBLY 27PIN 27PIN/FFC/158MM WX1AF1R1C102
CL3705 WIRE ASSEMBLY 10PIN 10PIN/170MM_110MM WX1AF1R1C402
CL3715
RF PCB ANT ASSEMBLY (L120MM) C1914-
510008-A
UANZZZWHA004
CL3801 WIRE ASSEMBLY 2PIN 2PIN/120MM WX1AF7U0C201
CL3901
FFC WIRE ASSEMBLY 51PIN(W/SHIELD) 51P/
FFC/SHIELD/130MM
WX1AD1U6T501
SP652 SPEAKER MAGNETIC S0411F41 DS08110XQ013
SP3801 SPEAKER MAGNETIC S0411F41 DS08110XQ013
WF301 WIRELESS MODULE U9W42YT U9W42YT
Digital Main CBA UnitPower Supply CBA WF301
CL3801
CL3601
CL3102
Speaker
Speaker
RF PCB Anntena
CL3705 CL3715CL3901CL652
IR Sensor CBA Unit
