3. How to Attach Adjunctive Equipment
There are no Double Side Tape, etc. attached on the
new Front Bezel to be replaced with.
Apply adjunctive equipment such as Double Side Tape
by consulting the following, then assemble the Front
Bezel.

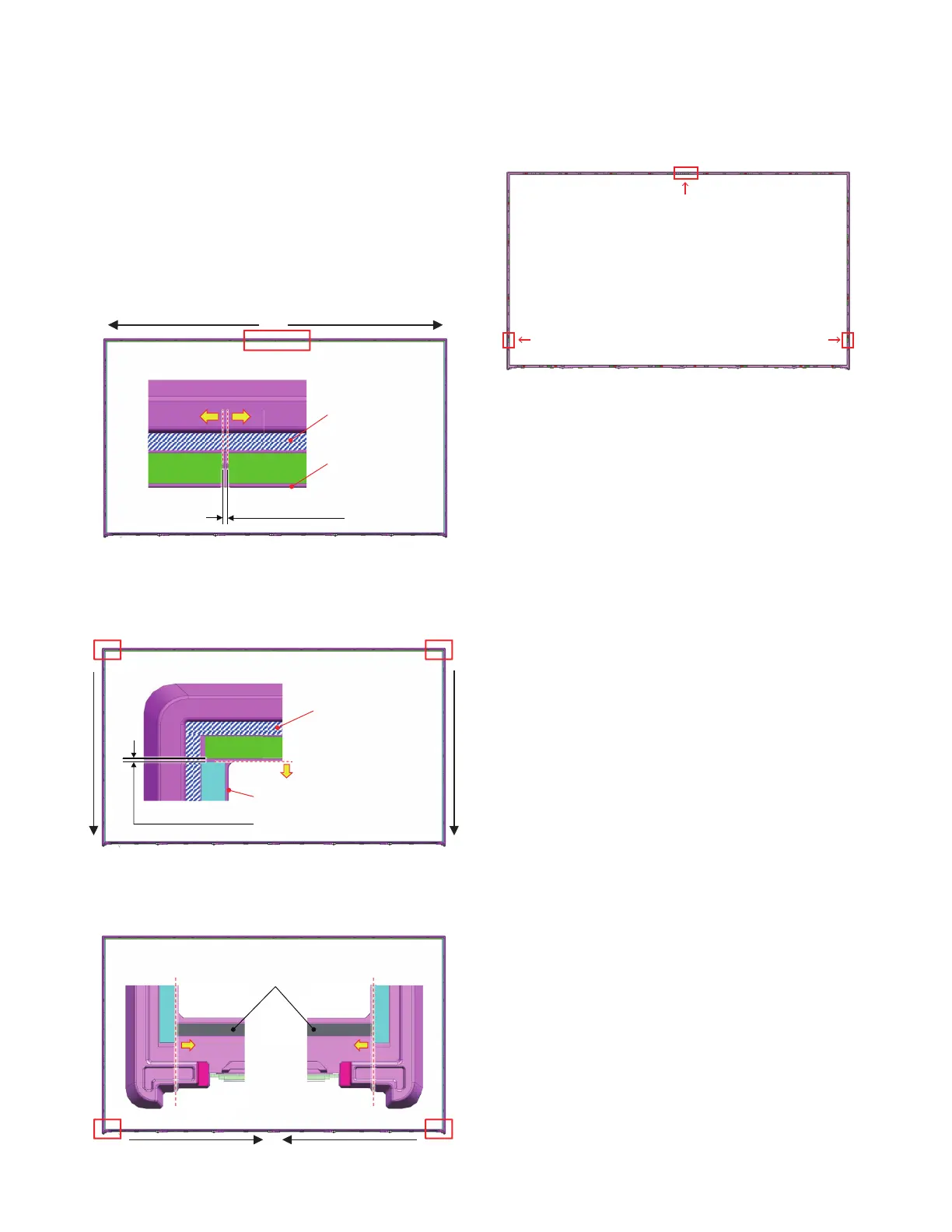

1. Double Side Tape (Top side)
Attach the Double Side Tape on the top side of the
Front Bezel.
The beginning of the paste is center engraving.
2. Double Side Tape (Left/ Right)
Attach the Double Side Tape on the l
eft and right
side of the Front Bezel.
The beginning of the paste is upper cushion edge.
3. Rubber Spacer
Attach the Rubber Spacer over the Front Bezel.
The beginning of the paste is engraving of side.
4. Diffusing Plate Cushion
Attach the Diffusing Plate Cushion over the Front
Bezel
.
Less than 0.5mm
Do not paste it
on this blue plane
Do not paste it
over this edge
Less than 0.5mm
Do not paste it
on this blue plane
Do not paste it over this edge
* Bilateral symmetry
Rubber Spacer
Front Bezel (R) Front Bezel (L)
Front Bezel (D)
