4-10 PL22.06-A_DC

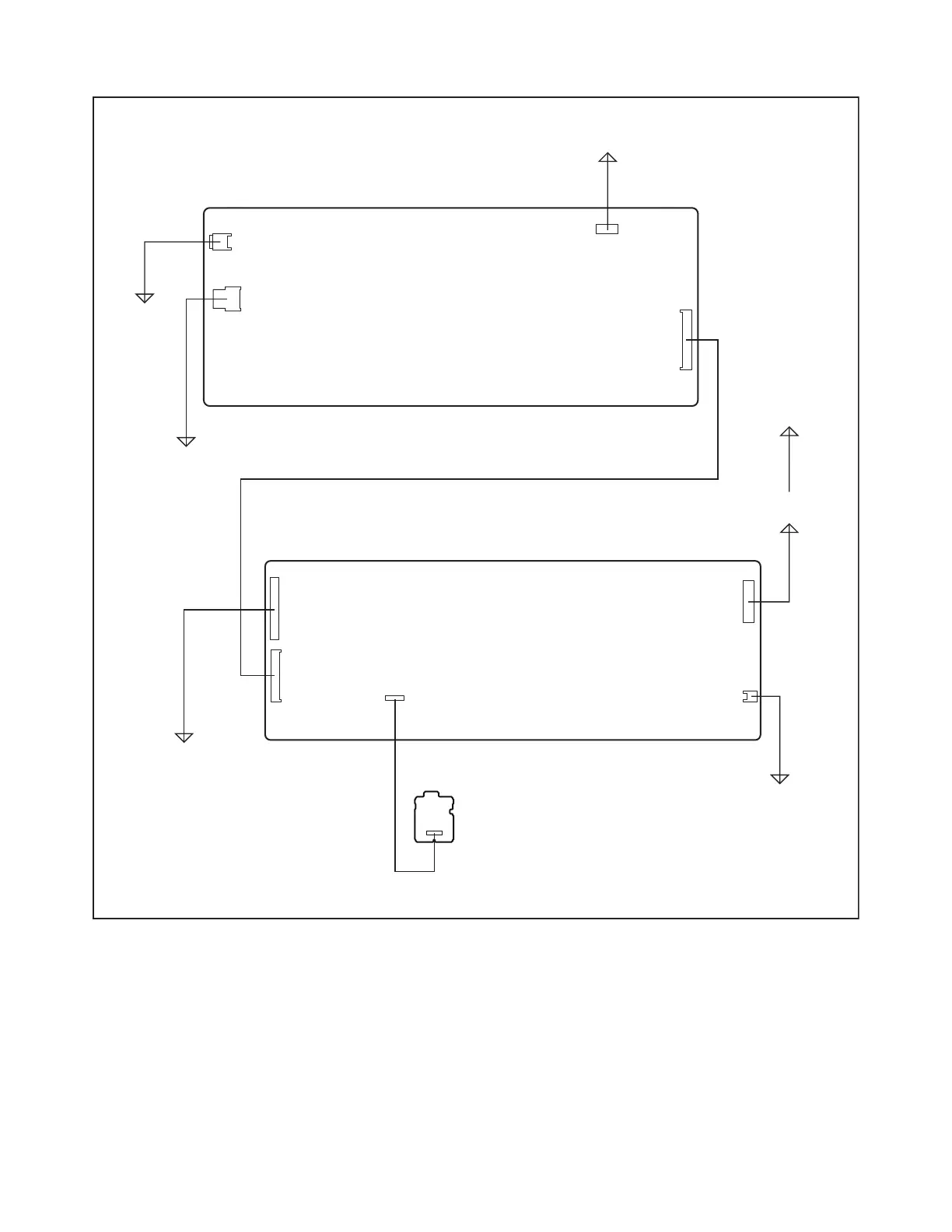

TV Cable Wiring Diagram
To LCD Panel
Assembly
To WiFi Module
CN3901
CN3601
CN3102
CN3801
CN3705
CN652
CN4051
CN1001
CN601
To AC Cord
To Speaker
To Speaker
IR Sensor
CBA Unit
Power Supply CBA
To LCD Panel Assembly
Digital Main CBA Unit
CN651
To RF PCB
Anntena
Fig. W1
