Philips Q549.2E LA - Chassis Overview

Technical Specifications and, Connections
EN 5Q549.2E LA 2.
2009-May-08
Cinch: Audio - In (VGA/DVI)
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
HDMI 1, 2, 3 & 4: Digital Video, Digital Audio - In

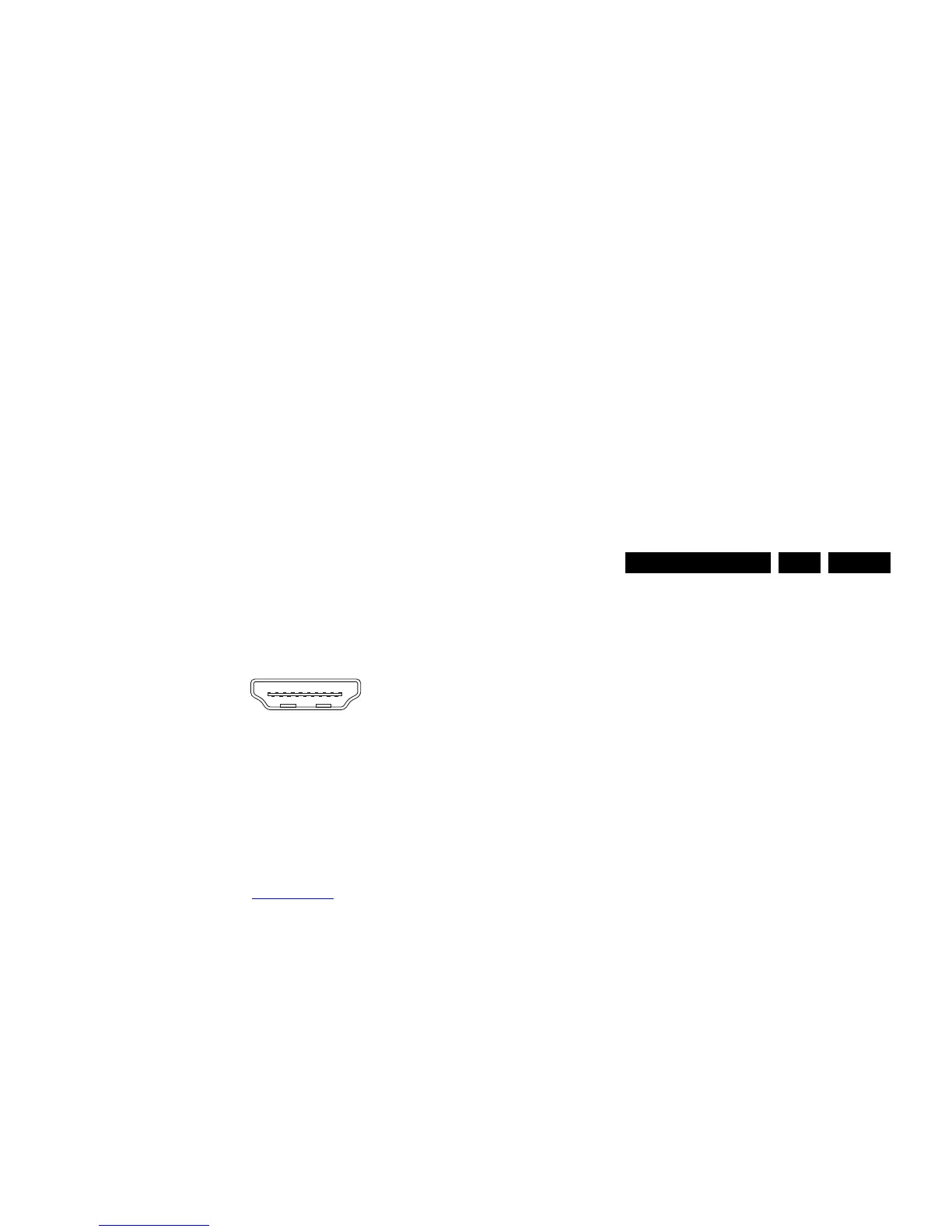

Figure 2-6 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
2.4 Chassis Overview
Refer to chapter Block Diagrams for PWB/CBA locations.
19
1
18 2
E_06532_017.eps
250505
