Mechanical Instructions
EN 18 SDI PDP4.
4.1.2 Flat Cable Connector of X-main Board
• Dis-assembly:
1. Pull out the clamp of connector.
2. Pull Flat cable out press down lightly.
3. Turn the Flat Cable reversely.
• Re-assembly: Put the Flat Cable into the connector press
down lightly until locking sound (“Click“) comes out.

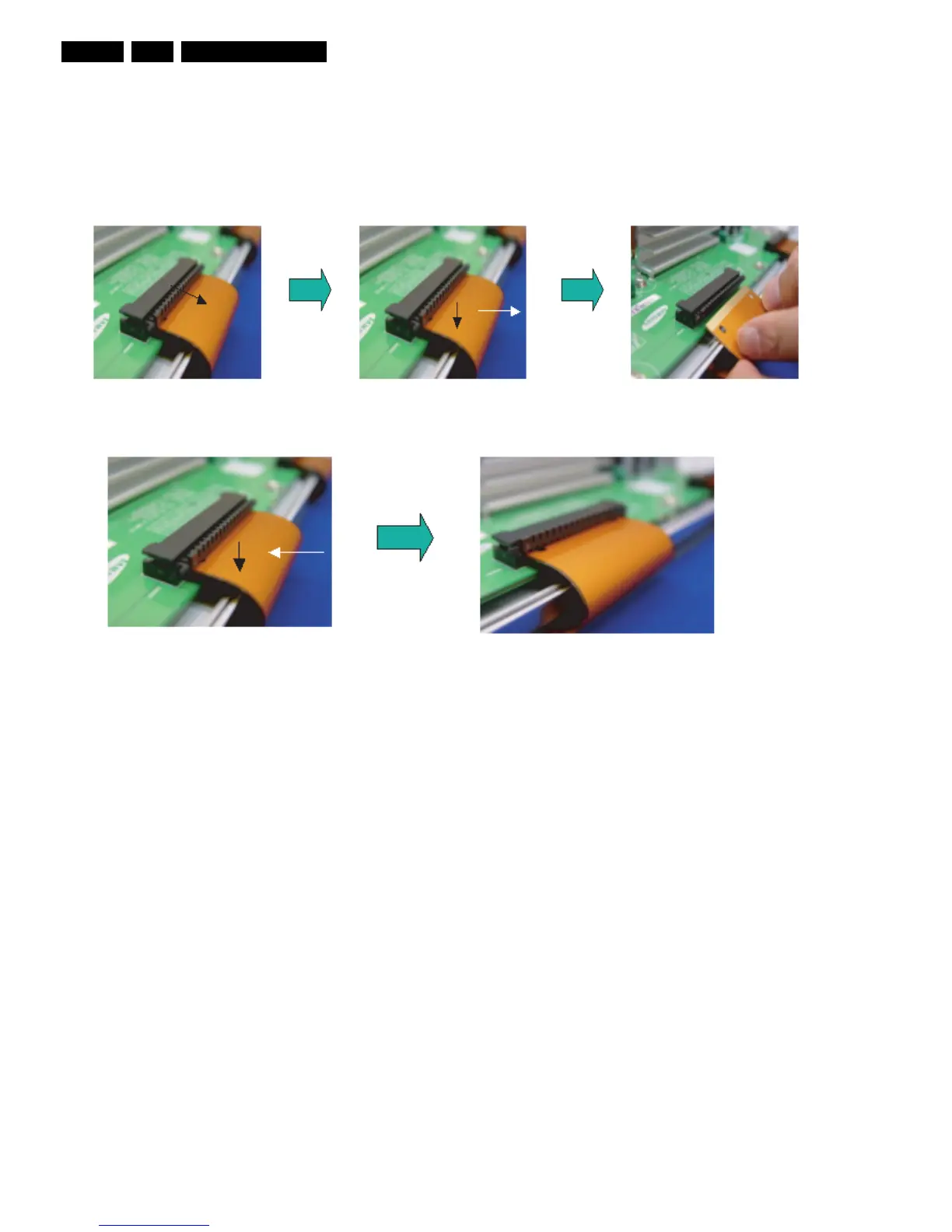

Figure 4-3 Dis-assembly FCC of X-main board
Figure 4-4 Re-assembly FCC of X-main board
