Mechanical Instructions
EN 19SDI PDP 4.
4.1.3 FFC and TCP from Connector
• Dis-assembling of TCP:
1. Open the clamp carefully.
2. Pull the TCP out from its connector.
• Re-assembling of TCP:
1. Put the TCP into the connector carefully
2. Close the clamp completely (until “Click” comes out.).
Notes:
• Checking whether the foreign material is on the connector
inside before assembling of TCP.
• Be careful, do not damage the board by ESD during
handling of TCP.

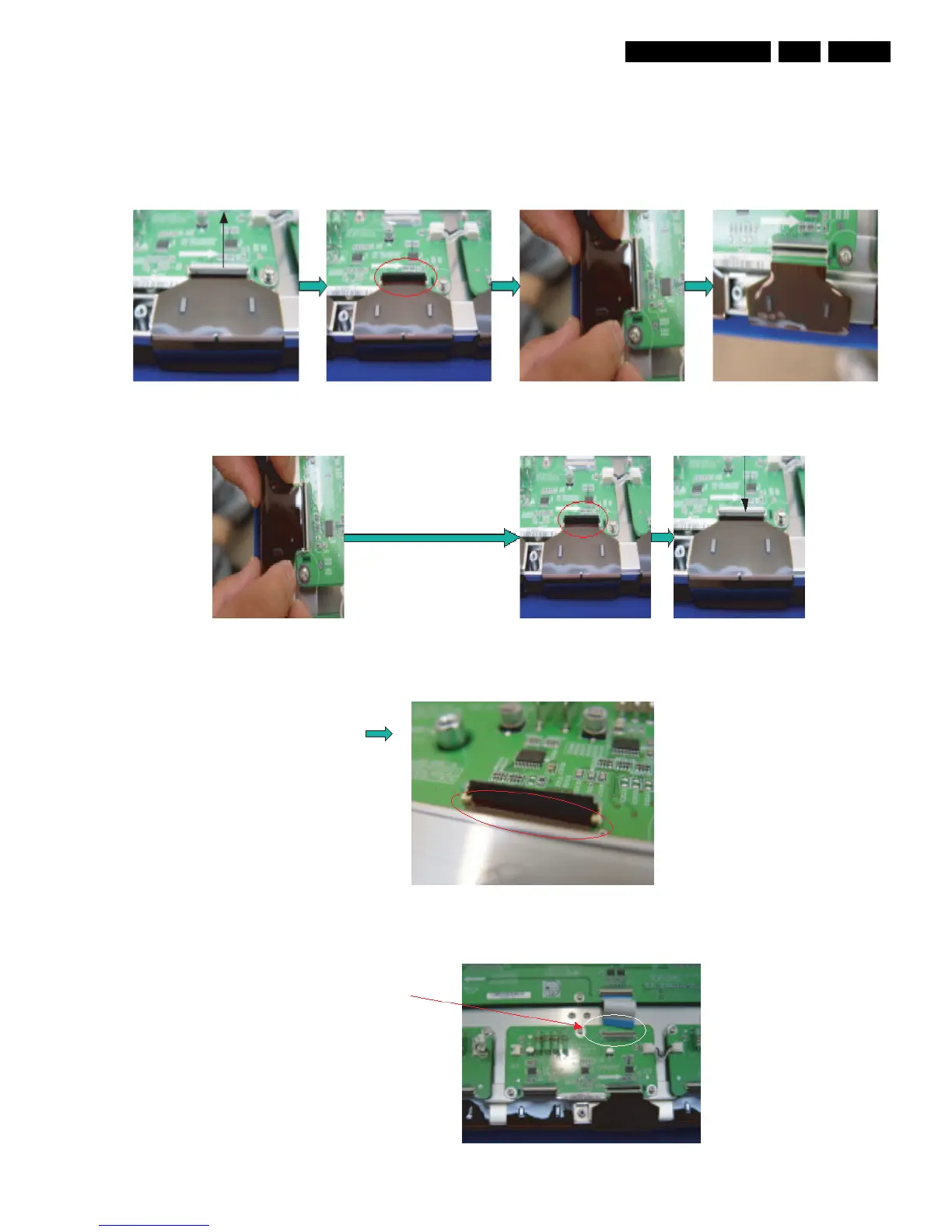

Figure 4-5 Dis-assembly of TCP
Figure 4-6 Re-assembly of TCP
Figure 4-7 Mis-assembly of TCP
Figure 4-8 Dis- and re-assembly of FFC
The procedure of
assembling and disassembling of
FFC is same as TCP
