EN 3SDI PDP 1.
1.1.2 42" SD v2

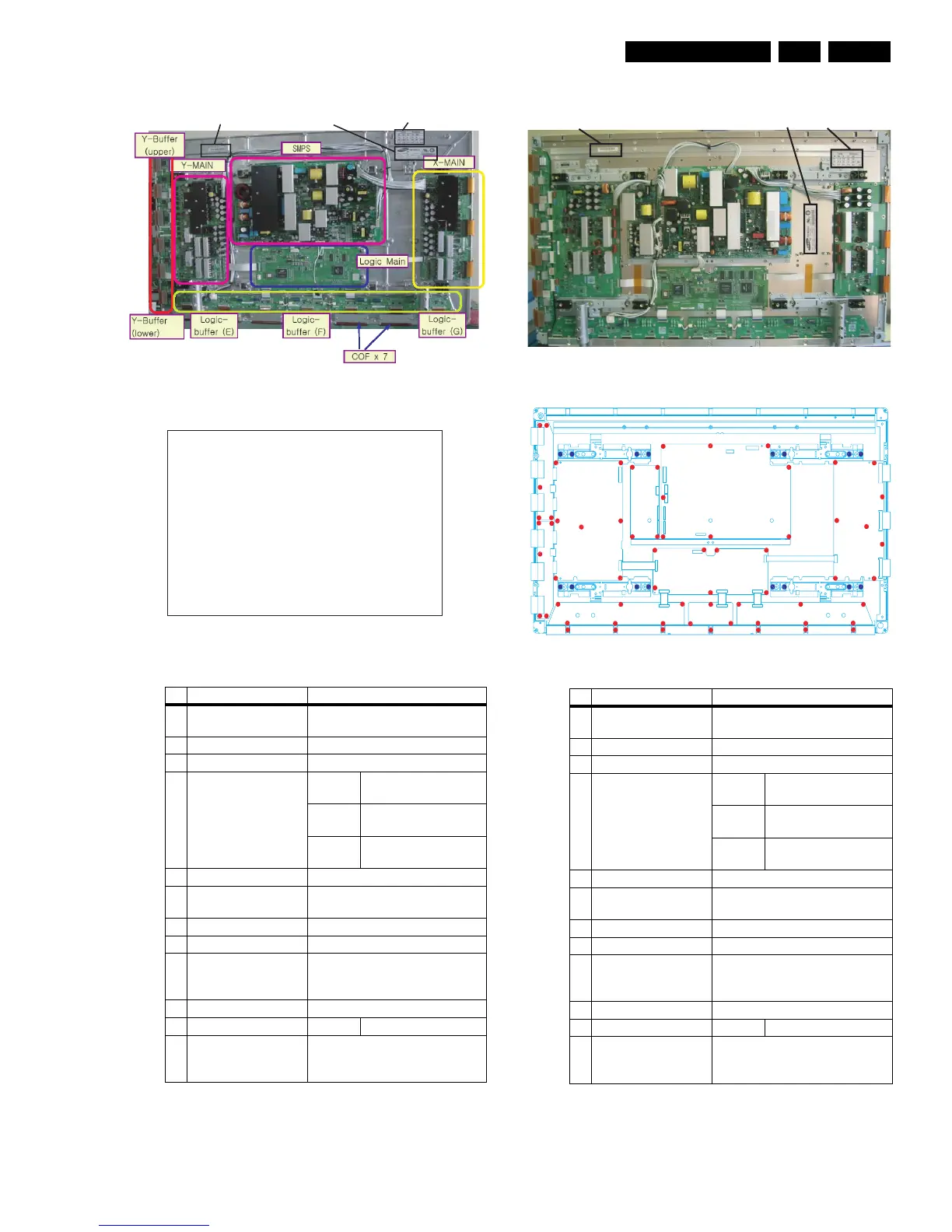

Figure 1-3 External view (42” SD v2)
Figure 1-4 Points of screw mount (42” SD v2)
1.1.3 42" SD v3
Figure 1-5 External view (42” SD v3)
Figure 1-6 Points of screw mount (42” SD v3)
No Item Specification 42” SD v2
1 Pixel 852 (H) x 480 (V) pixels
(1 pixel = 1 R,G,B cells)
2 Number of Cells 2556 (H) x 480 (V)
3 Pixel Pitch 1.095 mm (H) x 1.110 mm (V)
4 Cell Pitch R 0.324 (H) mm
1.110 (V) mm
G 0.365 (H) mm
1.110 (V) mm
B 0.406 (H) mm
1.110 (V) mm
5 Display size 932.940 (H) x 532.800(V) mm
6 Screen size Diagonal 42" Colour Plasma
Display Module
7 Screen aspect 16:9
8 Display colour 16.77 million colours
9 Viewing angle Over 160 deg (angle with 50%
and greater brightness
perpendicular to PDP module)
10 Dimensions 982 (W) x 582 (H) x 52.9 (D) mm
11 Weight Module 1 About 16.6 kg
12 Broadc. reception
Vertical frequency
Video/Logic Interface
60/50 Hz, LVDS
Serial number Model label Voltage label
F_14991_035.eps
061005
This figure is not (yet) available
No Item Specification 42” SD v3
1 Pixel 852 (H) x 480 (V) pixels
(1 pixel = 1 R,G,B cells)
2 Number of Cells 2556 (H) x 480 (V)
3 Pixel Pitch 1.095 mm (H) x 1.110 mm (V)
4 Cell Pitch R 0.365 (H) mm
1.110 (V) mm
G 0.365 (H) mm
1.110 (V) mm
B 0.365 (H) mm
1.110 (V) mm
5 Display size 932.940 (H) x 532.800(V) mm
6 Screen size Diagonal 42" Colour Plasma
Display Module
7 Screen aspect 16:9
8 Display colour 16.77 million colours
9 Viewing angle Over 160 deg (angle with 50% and
greater brightness perpendicular
to PDP module)
10 Dimensions 982 (W) x 582 (H) x 52.9 (D) mm
11 Weight Module 1 About 16.6 kg
12 Broadc. reception
Vertical frequency
Video/Logic Interface
60/50 Hz, LVDS
Serial number label Model label Voltage label
