Technical Specifications, Connections, and Chassis Overview
EN 4 SDI PDP1.
1.1.4 42" SD v4

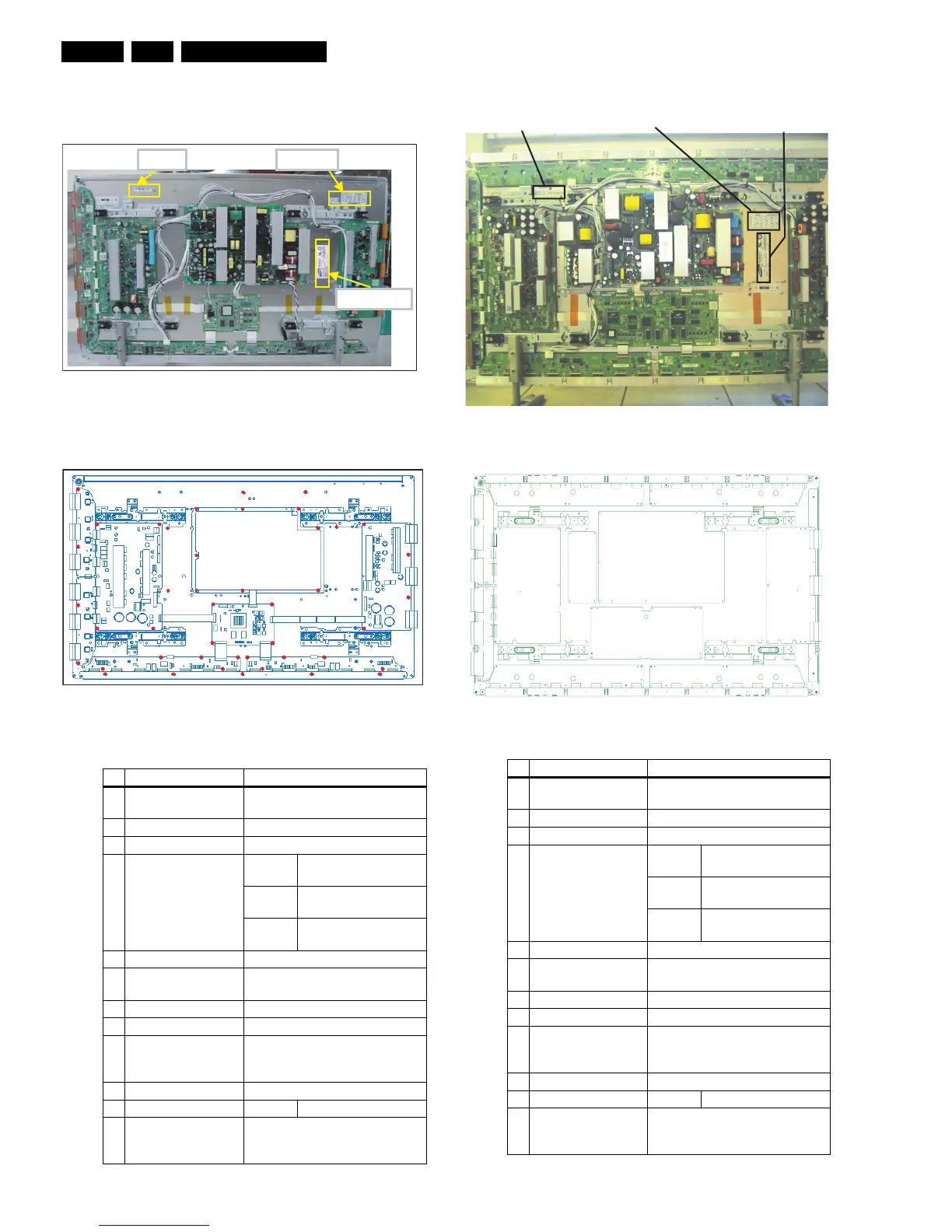

Figure 1-7 External view (42” SD v4)
Figure 1-8 Points of screw mount (42” SD v4)
1.1.5 42" HD v3
Figure 1-9 External view (42” HD v3)
Figure 1-10 Points of screw mount (42” HD v3)
No Item Specification 42” SD v4
1 Pixel 852 (H) x 480 (V) pixels
(1 pixel = 1 R,G,B cells)
2 Number of Cells 2556 (H) x 480 (V)
3 Pixel Pitch 1.095 (H) mm x 1.110 (V) mm
4 Cell Pitch R 0.365 (H) mm x
1.110 (V) mm
G 0.365 (H) mm x
1.110 (V) mm
B 0.365 (H) mm x
1.110 (V) mm
5 Display size 932.940 (H) x 532.800(V) mm
6 Screen size Diagonal 42" Colour Plasma Dis-
play Module
7 Screen aspect 16:9
8 Display colour 16.77 million colours
9 Viewing angle Over 160 deg (angle with 50% and
greater brightness perpendicular
to PDP module)
10 Dimensions 982 (W) x 582 (H) x 54 (D) mm
11 Weight Module 1 About 15.4 kg
14 Broadc. reception
Vertical frequency
Video/Logic Interface
60 Hz/ 50 Hz, LVDS
F_14991_003.eps
180705
Panel module label
Voltage label
Serial no.
F_14991_005.eps
180705
No Item Specification 42” HD v3
1 Pixel 1.024 (H) x 768 (V) pixels
(1 pixel = 1 R,G,B cells)
2 Number of Cells 3072 (H) x 768 (V)
3 Pixel Pitch 0.912mm (H) x 0.693mm (V)
4 Cell Pitch R Horizontal 0.304 mm
Vertical 0.693 mm
G Horizontal 0.304 mm
Vertical 0.693 mm
B Horizontal 0.304 mm
Vertical 0.693 mm
5 Display size 932.940 (H) x 532.800(V) mm
6 Screen size Diagonal 42" Colour Plasma
Display Module
7 Screen aspect 16:9
8 Display colour 16.77 million colours
9 Viewing angle Over 160 deg (angle with 50% and
greater brightness perpendicular
to PDP module)
10 Dimensions 982 (W) x 582 (H) x 52.9 (D) mm
11 Weight Module 1 About 18.0 kg
12 Broadc. reception
Vertical frequency
Video/Logic Interface
60/50 Hz, LVDS
Serial number label Panel model labelVoltage label
