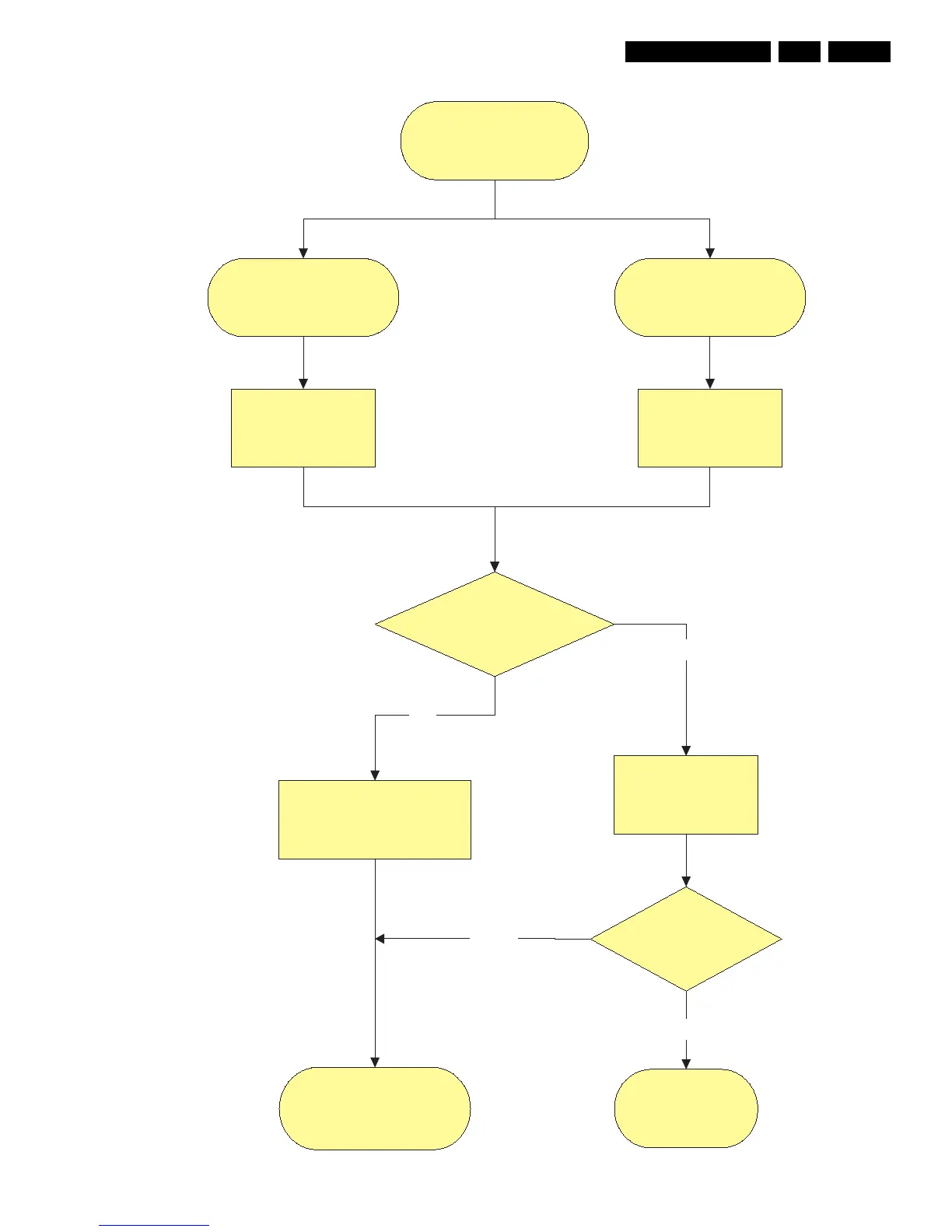

Figure 5-15 Fault symptom: “Sustain open / short”
Sustain Open / Short
Y-FPC
Sustain open
Change Y-Buffer
Upper or Lower
Horizontal Lines
Some horizontal lines don´t
exist on Display
After changing buffer,
recheck the status
Done
Defect is from buffer
Replace the panel (PDP)
There is a defect on FPC
OK
OK
Horizontal lines
Some horizontal lines appear
to be linked on Video
Y-FPC
Sustain Short
Check connections
Y-buffer up & Low
Check FFC
FPC damaged or connection
to PDP
Nok
Not OK
