Block Diagrams, Test Point Overview, and Waveforms
EN 49SDI PDP 6.
6.2.6 PSU 42" HD v4

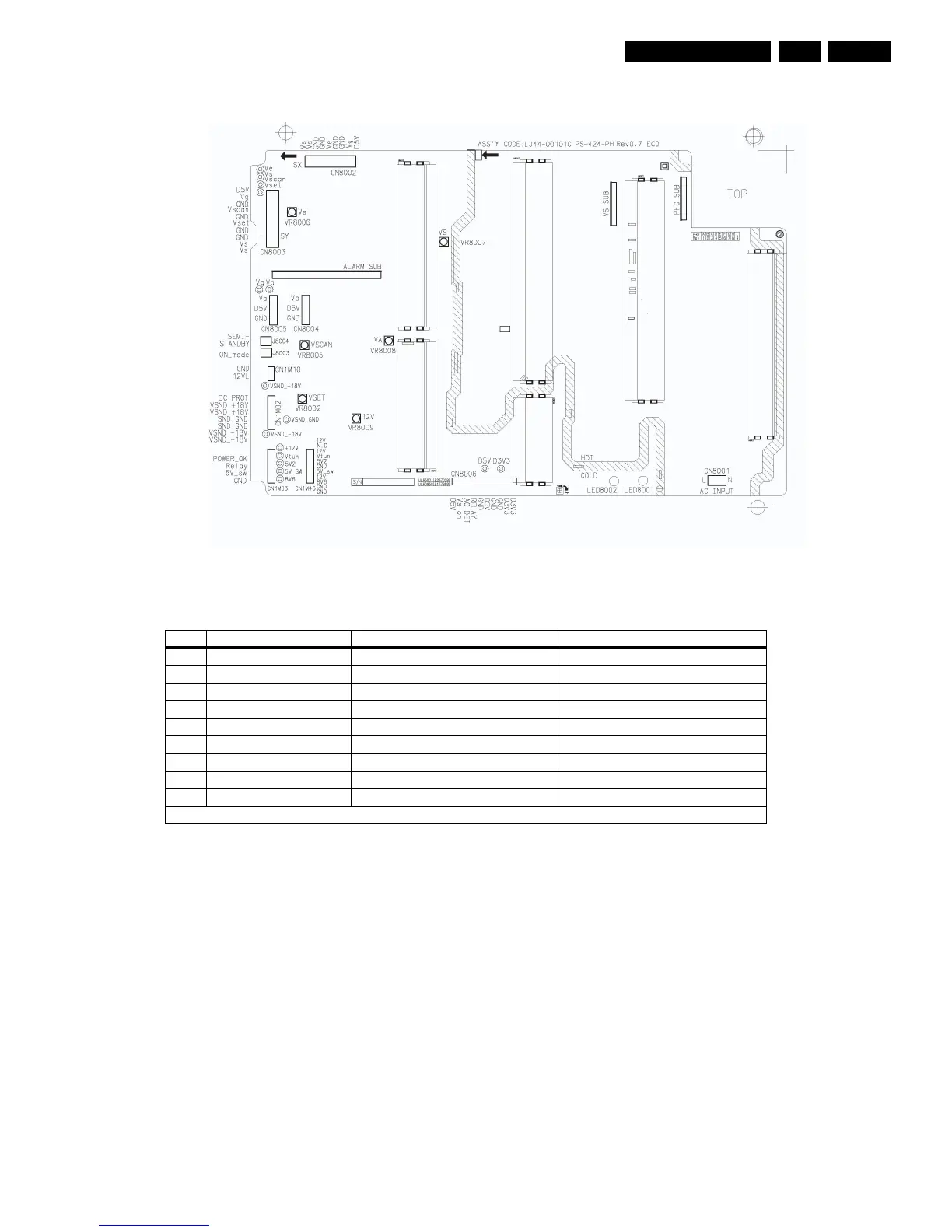

Figure 6-14 PSU layout
Table 6-6 Adjustment voltage level overview
F_14991_062.eps
120206
No Output voltage (V) Voltage Setting (Normal Load) Output Voltage Variable Point
1 Vs 208V 190V ~ 210V
2 Va 70V 50V ~ 70V
3 Ve 90V 80V ~ 105V
4 Vset 195V 180V ~ 205V
5 Vscan -190V -170V ~ -205V
6 Vsb 5V Fixed
7 Vg 15V Fixed
8 D5VL 5.2V Fixed
9 D3V3 3.3V Fixed
Check voltage label on the PDP for correct values.
