Alignments
EN 58 SDI PDP8.

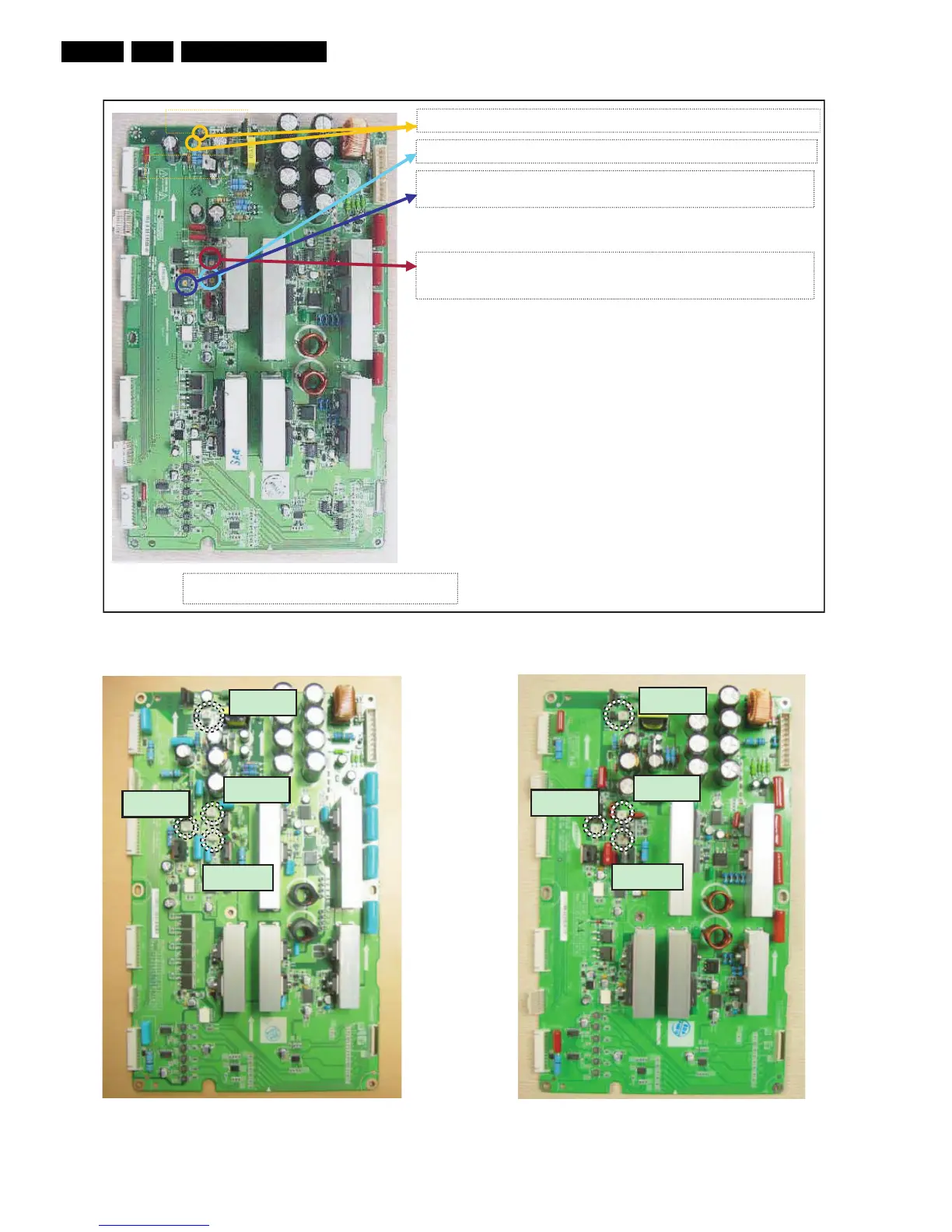

Figure 8-16 Potmeter locations
Figure 8-17 Potmeter locations Figure 8-18 Potmeter locations
4. VR5001 Adjustment: 3th SF Falling Ramp flat time => Typ. 30 µsec
* Pay close attention to above adjustment
TP:Vsch
VR5004
1. VR5004 Adjustment: Vsch TP => 40volt
2. VR5002 Adjustment: Rising Ramp flat time: Typ. 10 µsec
3. VR5003 Adjustment: Falling Ramp flat time => Typ. 30 µsec
VR5001
VR5002
VR5003
