Technical Specifications, Connections, and Chassis Overview
EN 6 SDI PDP1.
1.1.8 50" HD v4

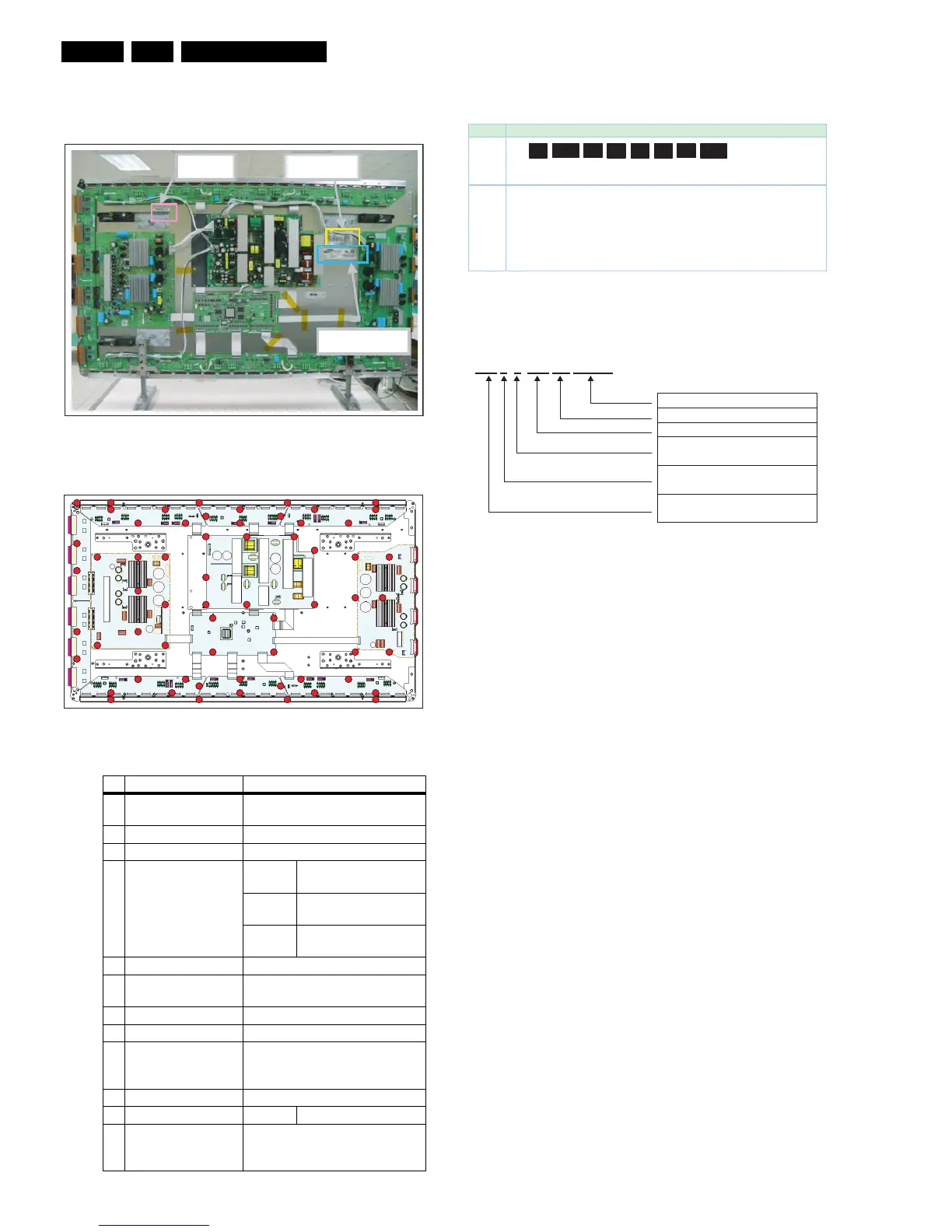

Figure 1-15 External view (50” HD v4)
Figure 1-16 Points of screw mount (50” HD v4)
1.2 Serial Numbers
Figure 1-17 Module serial number
Figure 1-18 Panel serial number
No Item Specification 50” HD v4
1 Pixel 1366 (H) x 768 (V) pixels
(1 pixel = 1 R,G,B cells)
2 Number of Cells 4,098 (H) x 768 (V) cells
3 Pixel Pitch 0.810mm (H) mm x 0.810 mm (V)
4 Cell Pitch R Horizontal 0.270mm
Vertical 0.810mm
G Horizontal 0.270mm
Vertical 0.810mm
B Horizontal 0.270mm
Vertical 0.810mm
5 Display size 1106.46 mm (H) x 622.08 mm (H)
6 Screen size Diagonal 50" Colour Plasma
Display Module
7 Screen aspect 16:9
8 Display colour 16.77 million colours
9 Viewing angle Over 160 deg (angle with 50% and
greater brightness perpendicular
to PDP module)
10 Dimensions 1175 (W) x 682 (H) x 65.5 (D) mm
11 Weight Module 1 About 25.4 kg
12 Broadc. reception
Vertical frequency
Video/Logic Interface
60/50 Hz, LVDS
F_14991_012.eps
030805
Voltage label
Panel module label
Serial No.
F_14991_013.eps
030805
F_14991_004.eps
180705
ڞ
ۇڼێێ ڌڏ ڿۄۂۄۏێ
ڤڟ گ۔ۋۀ
ڤڟ
ڨۀڼۉۄۉۂ
ྙ ڜۍۀڼ ڃڞڕ ڞۃۀۊۉڼۉ ڇ ڮ ڕ ڮۃۀۉەۀۉڄ
ྚ ڨۊڿۀۇ ڕ ڎ ڿۄۂۄۏ
ྛ ڨۊڿېۇۀ ڧۄۉۀ ڕ ڜ ۙ ڵ
ྜ ڴۀڼۍ ڕ ڌ ڟۄۂۄۏ ژڙ ڭۊۏڼۏۀ ۀۑۀۍ۔ ڿۀھڼڿۀێ
ྜྷ ڨۊۉۏۃ ڃڣۀۓڕ ڌ ڟۄۂۄۏ ژڙ ڪھۏ ڈ ڜ ڇ کۊۑ ڈ ڝڇ ڟۀھ ڈ ڞڄ
ྞ ڟڼۏۀ ڕ ڌ ۙ ڎڌ
ྟ ڲۊۍۆۀۍ ڢۊېۍۋ ڕ ڜ ګڼۍۏڃڟڼ۔ڄڇ ڝ ګڼۍۏڃڜہۏۀۍۉۊۊۉڄڇ ڞ ګڼۍۏڃکۄۂۃۏڄ
j
h
[ ` WZ WWWX
Area
Module
Line
Yea r
Month
Da te
S /N
WWX
Model
h
Worker
Group
Serial No : 0001~9999
Date : 01~31
Month : 01~12
Year : 00(2000)
~99(2099)
Line No : 1 ~ 9
(0:Pilot Line)
Type : 02~48
(ex.50HDv3:26)
(Step of even)
2 6
1
4
0 8
07
0
8 6 5
To Next Page
