Philips S37SD-YD02 - Page 7

Technical Specifications, Connections, and Chassis Overview
EN 7SDI PDP 1.
1.3 Chassis Overview
1.3.1 37” SD v4

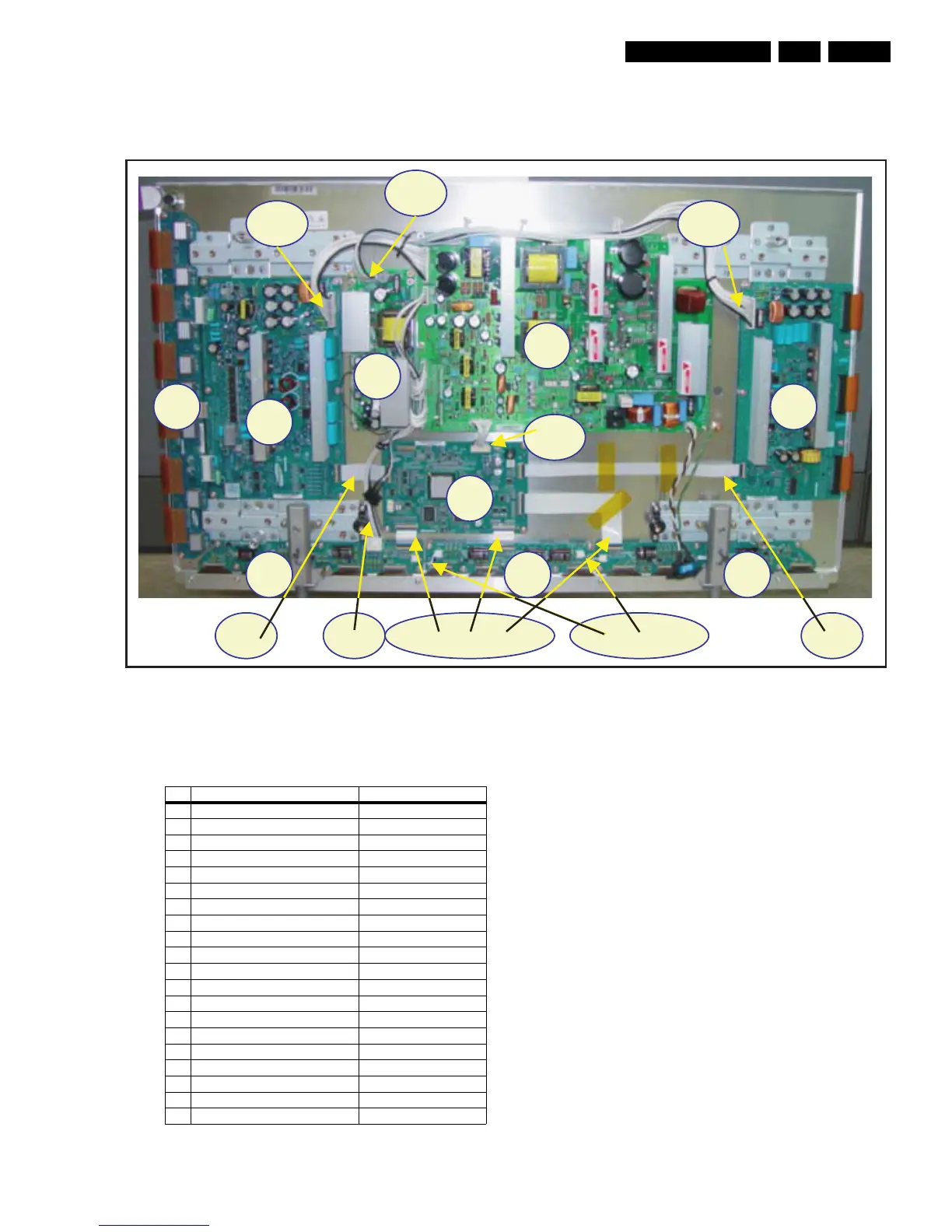

Figure 1-19 PWB location (37” SD v4)
Table 1-3 PWB overview (37” SD v4)
F_14991_027.eps
030805
1
2
3
4
5
6 7 8
12
,
13
,
14 15
,
1610 11
20
17
21
19
18
9
No. Location Name
1 Main PSU Assy PWB PSU
2 SUB-PSU Assy PWB SUB-PSU
3 LOGIC-MAIN Board Assy PWB LOGIC Main
4 X-MAIN Driving Board Assy PWB X Main
5 Y-MAIN Driving Board Assy PWBY Main
6 LOGIC E BUFFER Board Assy PWB Buffer
7 LOGIC F BUFFER Board Assy PWB Buffer
8 LOGIC G BUFFER Board Assy PWB Buffer
9 Y-BUFFER Board Assy PWB Buffer
10 LOGIC + Y-MAIN FFC Cable-flat
11 LOGIC + X-MAIN FFC Cable-flat
12 LOGIC + LOGIC BUF(E) FFC Cable-flat
13 LOGIC + LOGIC BUF(F) FFC Cable-flat
14 LOGIC + LOGIC BUF(G) FFC Cable-flat
15 LOGIC BUF(E) + LOG. BUF(F) Lead connector
16 LOGIC BUF(F) + LOG. BUF(G) Lead connector
17 PSU + SUB PSU Lead connector
18 PSU + LOGIC BUF(E) Lead connector
19 PSU + LOGIC MAIN Lead connector
20 PSU + Y-MAIN Lead connector
