2.4. Mounting on a Wall
To mount this display on a wall, a standard wall-mounting kit (commercially available) is required. It is recommended that you use
a mounting interface that complied with TUV-GS and /or UL1678 standard in North America.

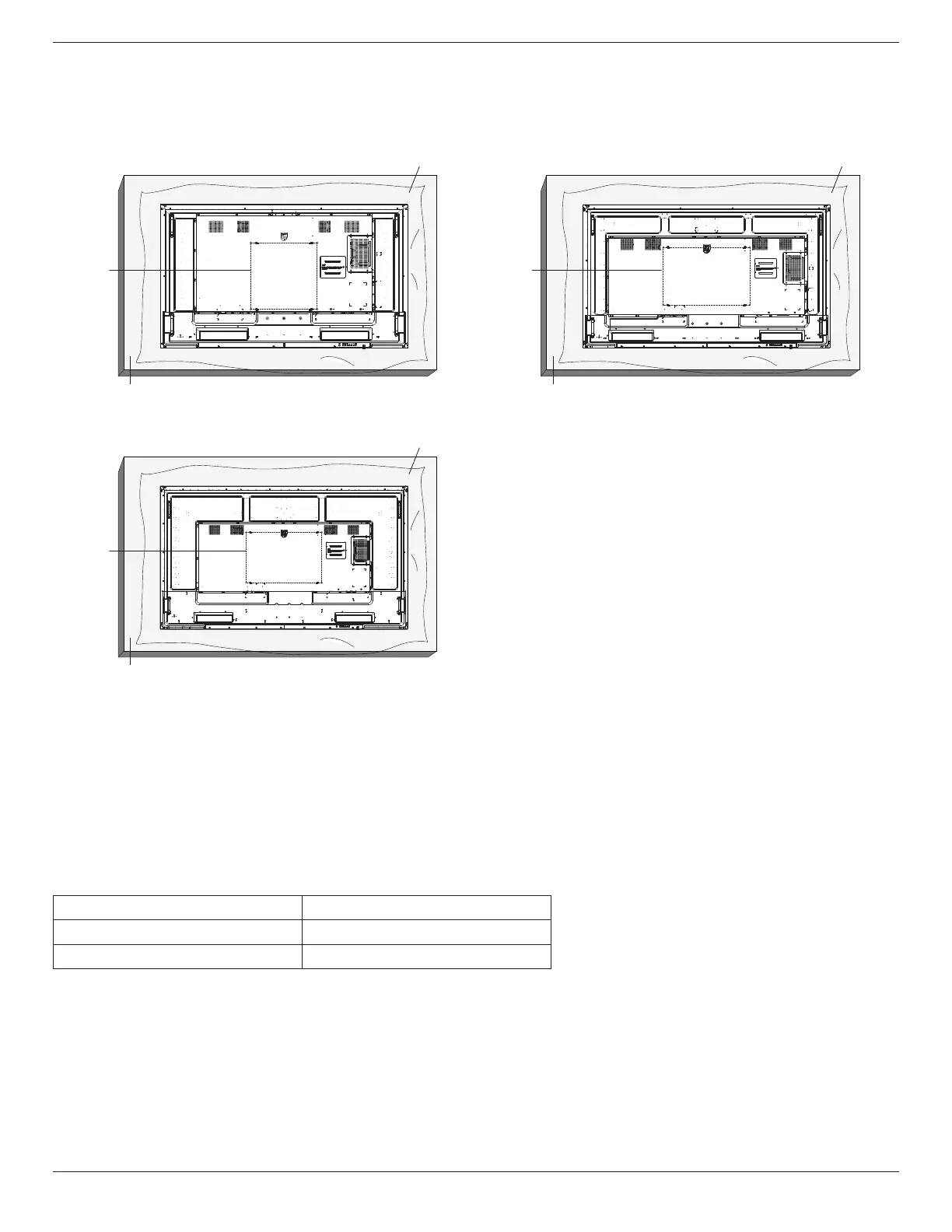

65BDL3652T 75BDL3652T
Protective Sheet
VESA Grid
Table
Protective Sheet
VESA Grid
Table
86BDL3652T
Protective Sheet
VESA Grid
Table
1. Prepare a at and horizontal surface that is larger than the display and spread a thick protective sheet on it to facilitate your
operation without scratching the screen.
2. Ensure you have all accessories for all types of mounting (wall mount, ceiling mount, table stand, etc).
3. Follow the instructions that came with the base mounting kit. Failure to follow the correct mounting procedures could result
in damage to the equipment, or injury to the user or installer. The product warranty does not cover the damage caused by
improper installation.
4. For the wall-mounting kit, use the M8 mounting screws (with a length 15 mm longer than the thickness of the mounting
bracket) and tighten them securely.
2.4.1. VESA Grid
65BDL3652T
400(H) x 400(V) mm
75BDL3652T
600(H) x 400(V) mm
86BDL3652T
600(H) x 400(V) mm
