4.4.2. Digital video connection

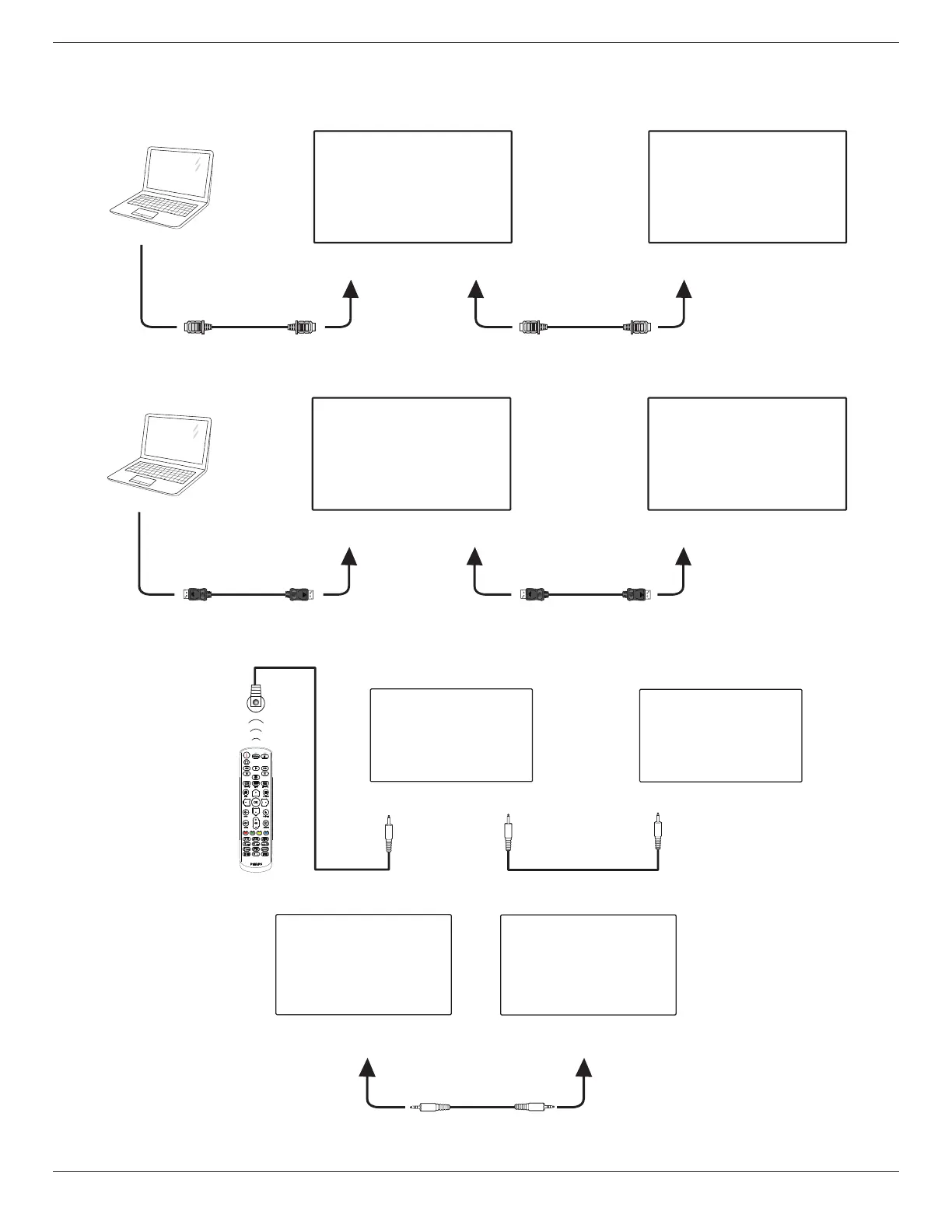

Connect the [HDMI OUT] connector of DISPLAY 1 to the [HDMI IN] connector of DISPLAY 2.
Maximum HDMI daisy-chain connection is 2 sets in total.
DISPLAY 1 DISPLAY 2
PC
[HDMI IN]
[HDMI]
[HDMI OUT] [HDMI IN]
Connect the [DisplayPort OUT] connector of DISPLAY 1 to the [DisplayPort IN] connector of DISPLAY 2.
Maximum DisplayPort daisy-chain connection is 4 sets in total (4K 60Hz).
DISPLAY 1 DISPLAY 2
PC
[DisplayPort IN]
[DisplayPort]
[DisplayPort OUT] [DisplayPort IN]
4.5. IR connection
[IR IN]
External
IR Receiver
[IR IN]
[IR OUT]
DISPLAY 1 DISPLAY 2
[RS-232 OUT] [RS-232 IN]
DISPLAY 1 DISPLAY 2
