Technical Specifications, Connections and Chassis Overview
EN 2 TE3.1E CA1.
1. Technical Specifications, Connections and Chassis Overview
1.1 Technical Specifications
Index of this chapter:
1.1 Technical Specifications
1.2 Connections / Control Facilities
1.3 Chassis Overview
Notes:
• Figures can deviate due to the different set executions.
• Specifications are indicative (subject to change).
1.1.1 Reception
Tuning system : PLL
Colour systems : PAL B/G, D/K, I
: SECAM B/G, L/L'
Sound systems : FM/FM (5.5 - 5.74)
(B/G)
: NICAM B/G
(5.5 - 5.85),
NICAM D/K
: NICAM I (6.0 - 6.52),
NICAM L (6.5 (AM) -
5.85)
A/V connections : NTSC 3.58
: NTSC 4.43
Channel selections : 100 channels
: UVSH
IF frequency : 38.9 MHz
Aerial input : 75 :, Coax
1.1.2 Miscellaneous
Audio output (RMS) : 2 x 3 W stereo
Mains voltage : 220 - 240V
Mains frequency : 50 / 60 Hz (r 5 %)
Ambient temperature : + 5 to + 45 deg. C
Maximum humidity : 90%
Power consumption : 55W r 10%
Standby Power consumption : < 3W
1.2 Connections / Control Facilities
1.2.1 Side Connections and Front Control

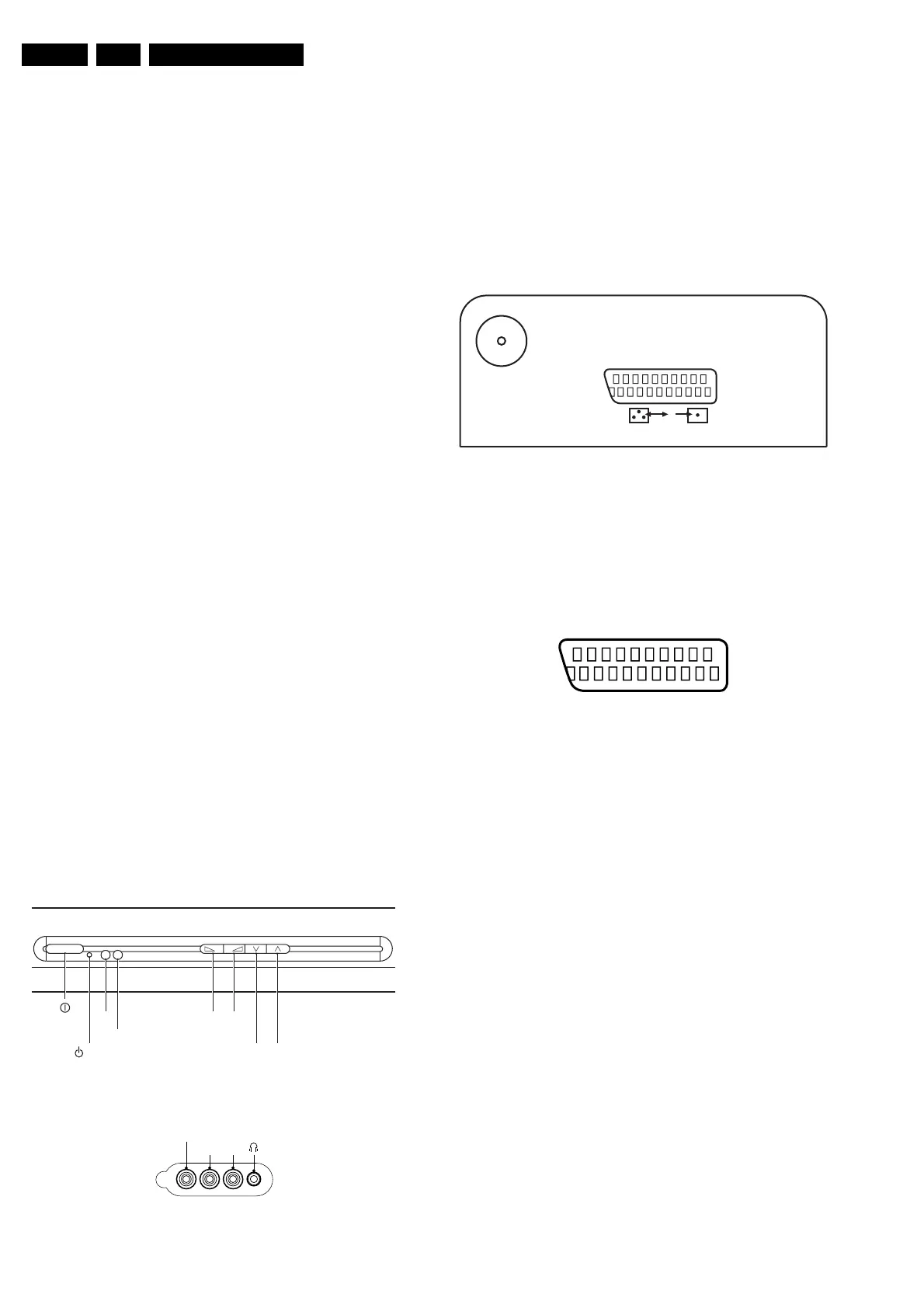

Figure 1-1 Front Control
Figure 1-2 Side AV
Audio / Video In
1 - Video CVBS (1 Vpp / 75 :) jq
2 - Audio L (0.5 Vrms / 10 k:) jq
3 - Audio R (0.5 Vrms / 10 k:) jq
4 - Headphone 3.5 mm (8 - 600 : /
<100 mW) rt
1.2.2 Rear Connections
Figure 1-3 Rear Connections
TV Aerial In
Aerial input : 75 :, Coax
(IEC-type)
External 1: RGB in + CVBS in/out
Figure 1-4 SCART connector
1 - Audio R (0.5 Vrms 1 k:) k
2 - Audio R (0.5 Vrms 10 k:) j
3 - Audio L (0.5 Vrms 1 k:) k
4 - GND H
5 - GND H
6 - Audio L (0.5 Vrms 10 k:) j
7 - Blue (0.7 Vpp / 75 :) j
8 - CVBS-status 0 - 2.0 V: INT
4.5 - 12 V: EXT 4:3
9 - GND H
10 -
11 - Green (0.7 Vpp / 75 :) j
12 -
13 - GND H
14 - GND H
15 - Red (0.7 Vpp / 75 :) j
16 - RGB-status 0 - 0.4 V: INT
1 - 3 V: EXT / 75 :
17 - GND H
18 - GND H
19 - CVBS (1 Vpp / 75 :) k
20 - CVBS (1 Vpp / 75 :) j
21 - Earth GND vj
F_15850_001.eps
160805
- +
SK1
RED
IR - VOLUME +
- PROGRAM +
LIGHT SENSOR LENS
Video
L
Audio
R
F_15160_002.eps
040705
F_15850_002.eps
160805
75 Ohm
EXT1
21
20
1
2
E_06532_001.eps
050404
